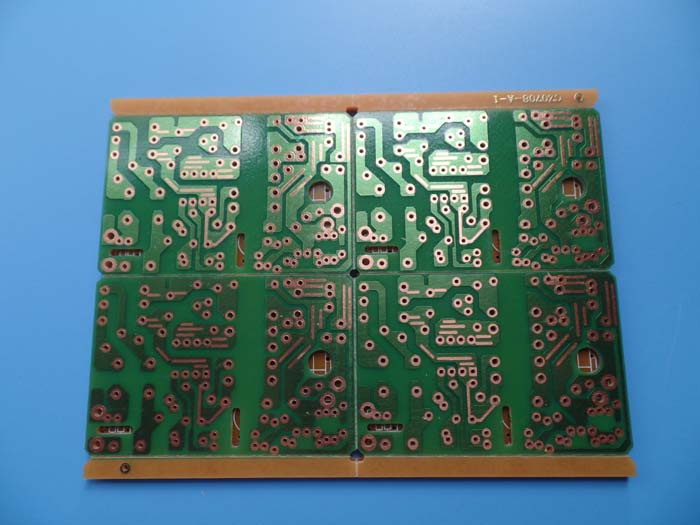

Circuit Board OPS Finish Single Sided PCB with Green Soldermask
| Price: |
US $ 0.45/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-133-V1.33 |
| Final Height Of PCB: |
1.6mm |
| Final Foil External: |
1oz |
| Surface Finish: |
OSP |
| Solder Mask Color: |
Gloss Green |
| Colour Of Component Legend: |
White |
| Minimum Trace And Space: |
16 Mil/190 Mil |
| Minimum / Maximum Holes: |
1.2/8.1mm |
| Test: |
100% Electrical Test |
| Via: |
Non Plated Through Hole(Npth) |
| Board Plating: |
0.0029" |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
FR-1 |
| Material: |
Fiberglass Epoxy |
Product Description
Single Sided Cheap PCB 94V0 FR-1 Board Material 1.6mm Thick Resin Finish PCB For Light
Driver
Commodity IntroductionThis is a type of FR-1 94V0 PCB for the application of Light Driver. It's a single sided layer
board at 1.6mm thick. The base laminate is from KB, Solder mask and silkscreen from Taiyo.
It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels
are packed separately.
Parameters & Data Sheet| PCB SIZE | 130 x 91mm=4PCS |
| BOARD TYPE | |
| Number of Layers | Single sided PCB, 1 layer PCB |
| Surface Mount Components | NO |
| Through Hole Components | YES |
| LAYER STACKUP | Copper ------- 35um(1oz) TOP layer |
| FR-4 1.5 mm |
| TECHNOLOGY | |
| Minimum Trace and Space: | 16mil/190mil |
| Minimum / Maximum Holes: | 1.2/8.1mm |
| Number of Different Holes: | 6 |
| Number of Drill Holes: | 65 |
| Number of Milled Slots: | 6 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | 94V0 FR-1 , Tg110ºC |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | OSP, 0.2-0.5µm |
| Solder Mask Apply To: | Bottom, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Non Plated Through Hole(NPTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Light driver, Vision System
Power Divider
UPS Uninterruptible Power Supply
External Power Supply
18V Power Supply |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
