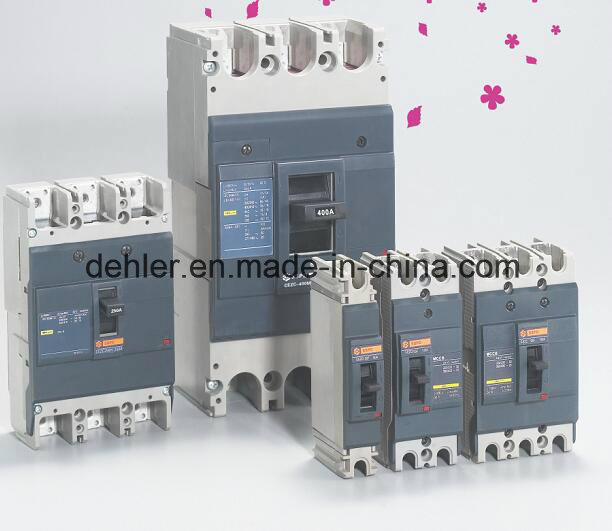

Circuit Breaker

Name: Circuit Breaker
Brand: all-electronics-online.com
SKU: 839989865
Availability: InStock
Rating: 4.6 (47 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

Item No.		DLC400	DLC630
Number of poles		3P	4P
Control	Manual	with toggle/with direct or extended rotary handle
Connections	Fixed	front connections/rear connections
Electrical characteristics as per IEC60947 and EN60947-2

Rated current(A) In		250-400	400-630
Rated insulation voltage(V)	Ui	690
Rated impulse withstand voltage(kV)	Uimp	6
Rated operational voltage(V)	Ue	AC50/60HZ, 440
Breaking capacity levels		M H
Isolation Function
Utilization category			A
Endurance(C-0 cycles)	Mechanical	8000	6000
	Electrical 440V	1000	1000
Protection
Release		Thermal magnetic	Electronic
Overload protection			lr(lnx....)
Short-circuit protection			lsd(lr x )
Instantaneous			li(ln x....)
Earth-leakage protection		-
Indication and control auxiliaries
Auxiliary contact AX and Alarm contact AL
Combined AX + AL
SHT shunt relesae		24V, 220V, 380V
Installation/connection
Accessories Terminal extensions
Terminal shields			Dimension 3P 257x140x146 3P 255x140x168

4P 255X185X168
