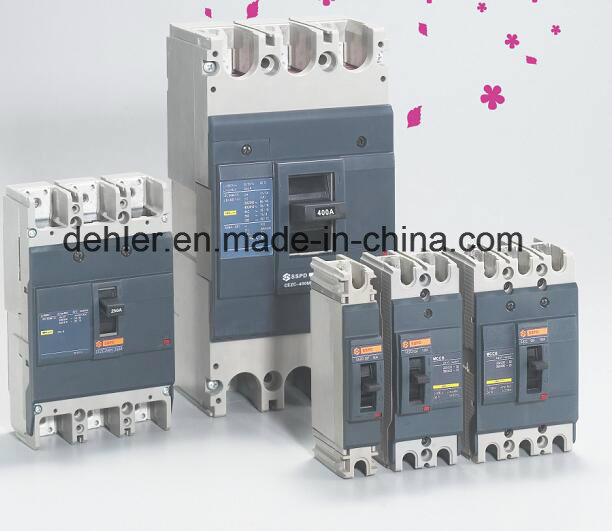

Moulded Case Circuit Breaker

Name: Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 839989345
Availability: InStock
Rating: 4.9 (123 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DLZC100
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

Item No.		DLZC100
Number of poles		1P,2P,3P,4P
Control	Manual	with toggle/with direct or extended rotary handle
Connections	Fixed	front connections/rear connections

Electrical characteristics as per IEC60947 and EN60947-2
Rated current(A) In	15, 20, 30, 40, 50,60,75, 80, 100
Rated insulation voltage(V)	Ui	690
Rated impulse withstand voltage(kV)	Uimp	6
Rated operational voltage(V)	Ue	AC 50/60Hz,440
Breaking capacity levels		F H
Isolation Function -
Utilization category		A
Endurance(C-0 cycles)	Mechanical	10000
	Electrical 440V	2000
Protection
Release		Thermal magnetic
Overload protection
Short-circuit protection
Earth-leakage protection -
Indication and control auxiliaries
Auxiliary contact AX and Alarm contact AL
Combined AX + AL
SHT shunt relesae		24V, 220V, 380V
UVR under-voltage release
Installation/connection

Accessories Terminal extensions
Terminal shields ^-
Phase barriers
Dimensions(mm)	1P	130X25X81
	2P	130X50X81
	3P	130X75X81
	4P	130X 100X81
