Circular Connector with Female Threaded Nut Receptacle IP68 Aviation Connector

Circular Connector with Female Threaded Nut Receptacle IP68 Aviation Connector
Price: US $ 2.2-2.5/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: ZM
Color: Black/Blue
O.D Cable: Dia13, 16, 20, 28mm
MOQ: 1 Set
Lead Time: 3-5 Working Days
Number Of Pole: 1-26p
Rated Voltage: Max.380V
Rated Current: 5~45A
Withstand Voltage: 1500V

Product Description

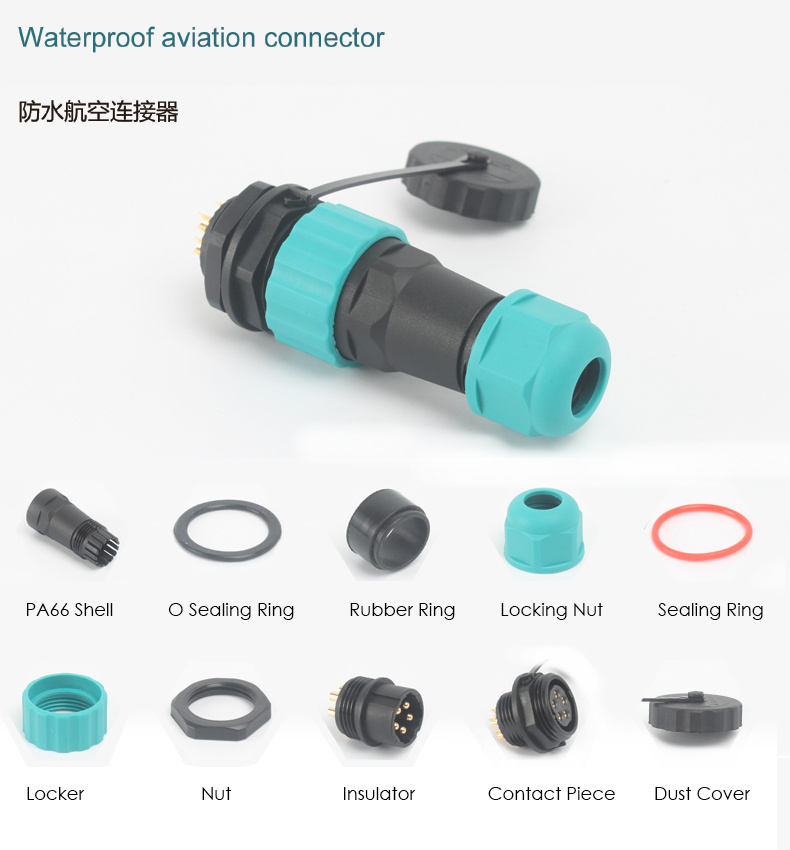

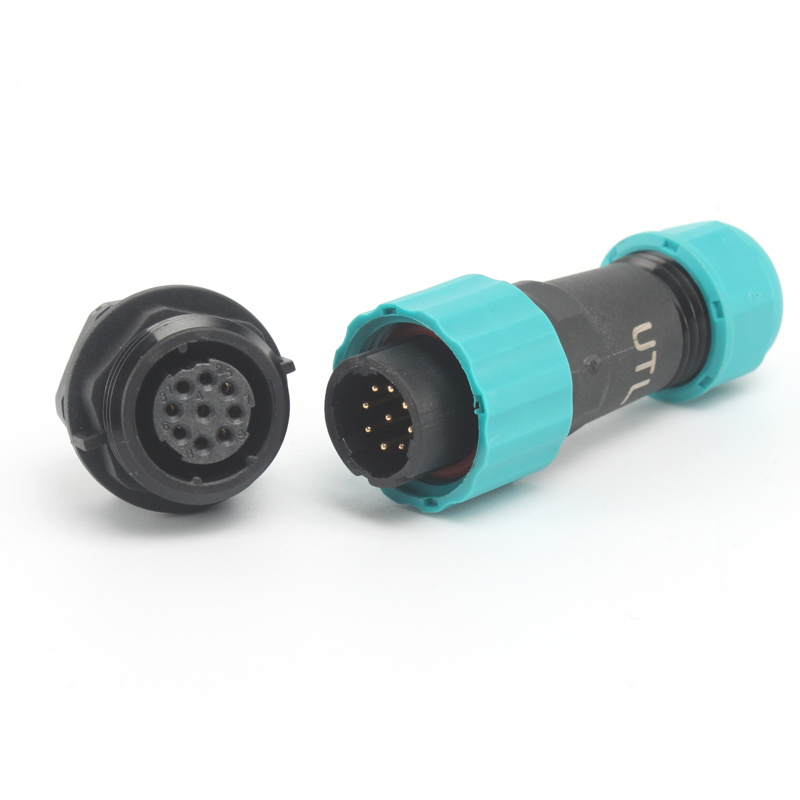

IP68 Waterproof Male-to-Female Circular Connector with threaded nut receptacle

It applies to any electrical connector processing multipin interconnects with cylindrical contact housing and circular contact interpface geometries.
Applies in millitary, aerospace and other high-reliability applications.

1. O.D of cable: Φ13, Φ16, Φ20, Φ28mm
2. Multiple Pin: 1P to 25P

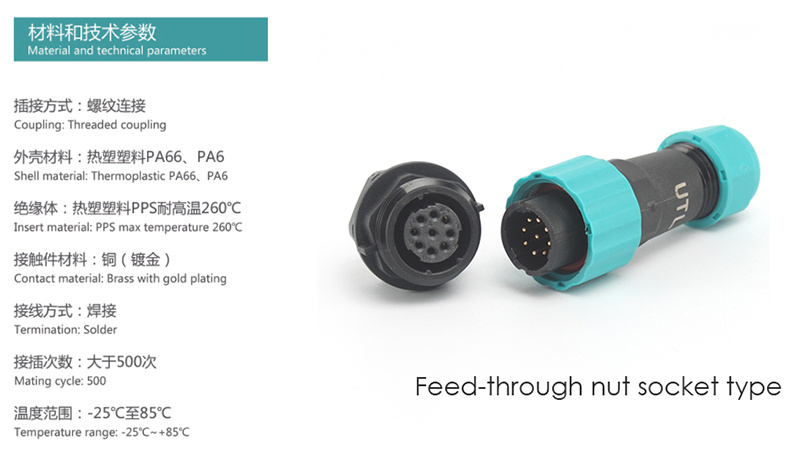

Coupling MethodThreaded coupling
Shell materialThermoplastic PA66 Nylon(fire resistance)
Contactor materialBrass plated with Gold
Insulator materialPPS for max 260ºC

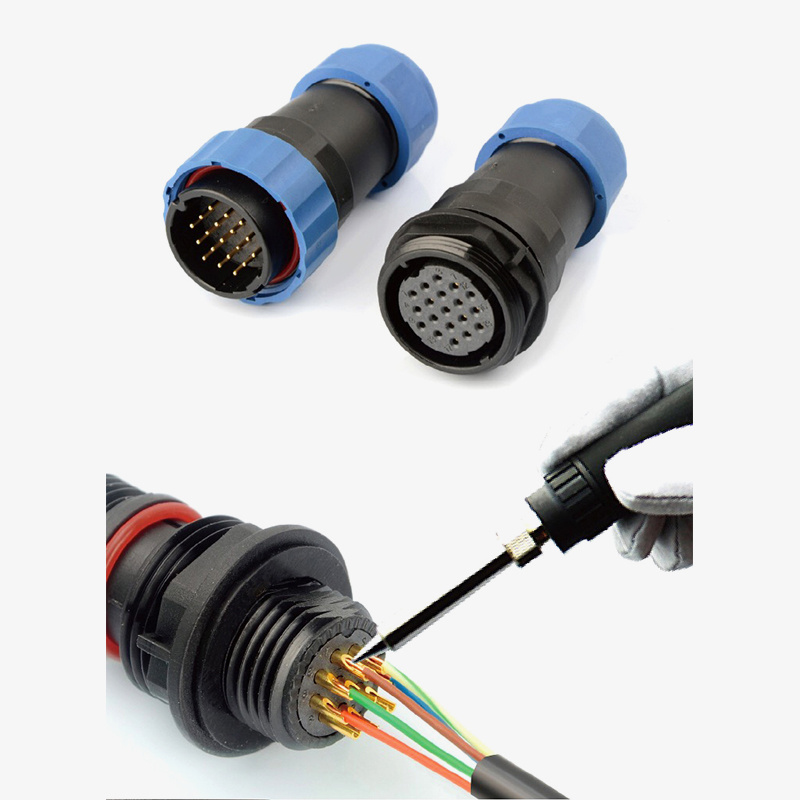

Mode of connectionSoldering
Cable O.Dfrom Φ6.5~15mm
IP levelMax.IP68 underwater
Mating cycle≥500 times
Temperature range-25ºC to +85ºC
Withstand Voltage1500V
Contact Resistance0.5~2mΩ
Insulation Resistance2000mΩ

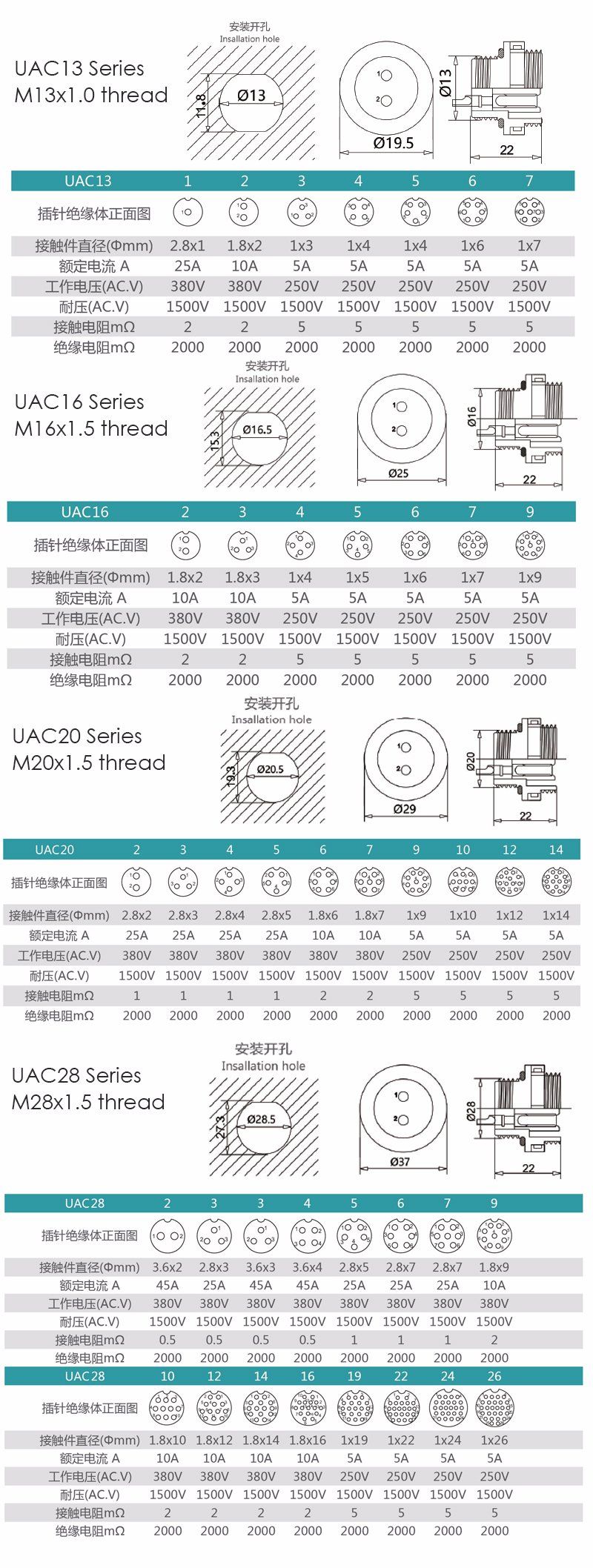

Please select suitable socket accroding to:
1. O.D of cable in mm
2. Number of Pole/Pin
