Zhejiang Huaxi Electronics Co., Ltd. >> Cj20 Magnetic Contactor

Cj20 Magnetic Contactor

Cj20 Magnetic Contactor
Price: Negotiable/Piece
Min Order: 100/Piece
Pay Type: T/T,Western Union
Prod Model: CJ20

Product Description

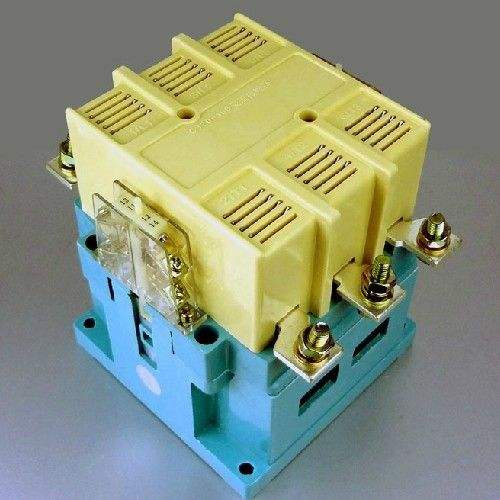

3 pole CJ20 AC magnetic Contactor with rated current from 10A to 1000A
APPLICATION
CJ20 series AC contactors are suitable for frequency 50Hz,rated voltage up to 660V,rated current up to 630A,It is mainly used for making or breaking electric circuits at a long distance & for frequent starting & stopping, controlling AC motors.It is used in combination with thermal relay to compose a magnetic motor starter.The product accords with such standards as IEC60947-4-1
SPECIFICATION
TypeRated insulation voltage (V)Rated thermal current (A)Control power under AC-3 use category Pe Kw
220V380V660V1140V
CJ20-10690102.244-
CJ20-16164.57.511-
CJ20-25255.51113-
CJ20-4040112222-
CJ20-6363183035-
CJ20-100100285050-
CJ20-160160488585-
CJ20-160/111140200---85
CJ20-25069025080132 -
CJ20-250/06190-
CJ20-400400115200220-
CJ20-630630175300--
CJ20-630/06350-
CJ20-630/111140400---400
Zhejiang Huaxi Electronics Co., Ltd is located at the foot of national key place of interest Yandang Mountain and abuts on "China Electric Capital"Liushi, Wenzhou. It was founded in 1997 with a floor area of 4, 003 sq. M, and building area of 5, 600 sq. M. At present, it owns more than 100 staff including 16 engineers.

The Company mainly produces(WENHAN, HX brand) kinds of temperature controller, overheat temperature protectors, temperature displays and gas temperature control valves, which are wideyl applied in electric water heater, electric oven, washing machine, plastic machinery, west cabinet equipment, fuel gas oven, gas air-condition, Turkey cooker, boiler pump, central air-condition heating, ventilation system and such support control products.

The companys is development, production of metallized film capacitors. It is equipped with advanced production equipment and detection instruments. The products are of stable and reliable quality and widely used in fields such as communication, household appliances, power supply, green lighting, commputer, industrial control, electric tool, auto-eletctonics, etc.

Since the foundation of the company, we have always insisted on the principle of paying equal attention to talents and products; Absorbing experienced engineers and professional managing personnel. Basing on strict management, high techonlogy, advanced mechanical facilities, perfect test technique, it can provide the user whit high quality products and good fater-sales service. The main products have been certified to CSA, VED, CQC and CE. The quality control system has been wholly carried out in conformity with ISO. The products mand by our company are used with those of famous domestic manufacturers. The company has become the cooperation partner of foreign famous brand OEM. The products are well sold all over China and also exported abroad, selling well around China and exported oversas.
