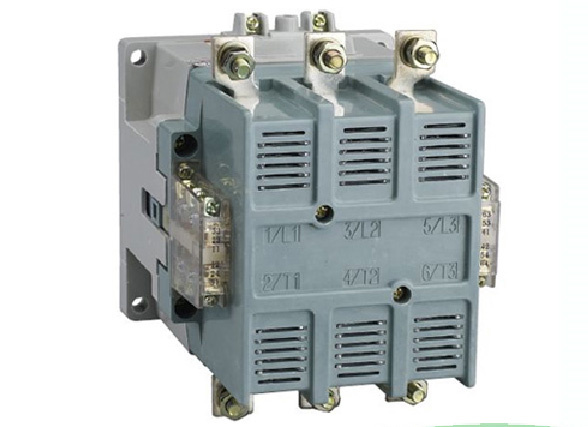

Cj40 Magnetic Contactor

Name: Cj40 Magnetic Contactor
Brand: all-electronics-online.com
SKU: 690499491
Availability: InStock
Rating: 4.8 (73 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJ40

Product Description

HOT SALE Magnetic Contactor Price for CJ40:

1.Mainly used for ac 50Hz, rated voltage 660V, rated current between 9~1000A connecting and breaking circuit in the power system,also,formed into motor starter with thermal relay or electronic protector for protecting the circuit from overload.
2.Double breakpoint straight moving type structure, the contact system is in the front of magnetic system
3.Can be assembled into a variety of accessories with expanded functions
4.More than 63A arcing system adopts arc resistance plastic and iron pieces of high breaking capacity, high reliability which are in good advantage than clay arcing cover fragile.

Technical parameter of HOT SALE Magnetic Contactor Price for CJ40:

model	Cj40-9	CJ40-12	CJ40-16	Cj40-25	CJ40-32	CJ40-40	CJ40-50	CJ40-63	CJ40-80	CJ40-100
rated insulation voltage Ui	690V
rated voltage Ue	220,380,660
Conventional thermal current A	20		32		60			80		125
rated current	9	12	16	25	32	40	50	63	80	100
Breaking capacity KW (660V)	7.5	7.5	13	13	25	25	25	55	55	75
electrical life	100
Mechanical life (x104)	100								120
Operating frequency cycles/h	380V:1200/h 660V:600/h
coil voltage V	36,110,127,220,380
operational rate V	85%-110%Ue
drop-out voltage V	20%-75%Us
inrush VA	54		86		125				492
sealed VA	9		14		14				61
heat disspation W	3.2		5		6				20
conventional thermal current A	10
Rated Voltage	AC-15	36.127.220.380 V
	DC-13	48.110.220 V
rated control capacity AC-15	100								300
rated control capacity DC-13	30								60

Zhejiang Huaxi Electronics Co., Ltd is located at the foot of national key place of interest Yandang Mountain and abuts on "China Electric Capital"Liushi, Wenzhou. It was founded in 1997 with a floor area of 4, 003 sq. M, and building area of 5, 600 sq. M. At present, it owns more than 100 staff including 16 engineers.

The Company mainly produces(WENHAN, HX brand) kinds of temperature controller, overheat temperature protectors, temperature displays and gas temperature control valves, which are wideyl applied in electric water heater, electric oven, washing machine, plastic machinery, west cabinet equipment, fuel gas oven, gas air-condition, Turkey cooker, boiler pump, central air-condition heating, ventilation system and such support control products.

The companys is development, production of metallized film capacitors. It is equipped with advanced production equipment and detection instruments. The products are of stable and reliable quality and widely used in fields such as communication, household appliances, power supply, green lighting, commputer, industrial control, electric tool, auto-eletctonics, etc.

Since the foundation of the company, we have always insisted on the principle of paying equal attention to talents and products; Absorbing experienced engineers and professional managing personnel. Basing on strict management, high techonlogy, advanced mechanical facilities, perfect test technique, it can provide the user whit high quality products and good fater-sales service. The main products have been certified to CSA, VED, CQC and CE. The quality control system has been wholly carried out in conformity with ISO. The products mand by our company are used with those of famous domestic manufacturers. The company has become the cooperation partner of foreign famous brand OEM. The products are well sold all over China and also exported abroad, selling well around China and exported oversas.
