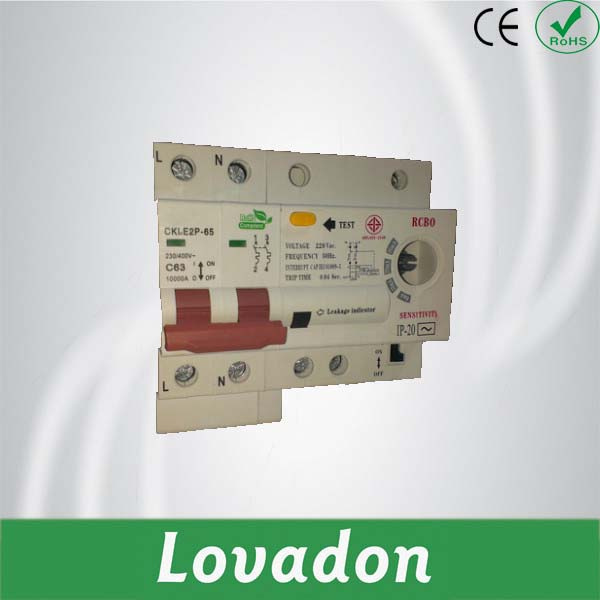

Ckle2p-65 Earth Leakage Circuit Breaker ELCB

Name: Ckle2p-65 Earth Leakage Circuit Breaker ELCB
Brand: all-electronics-online.com
SKU: 684434752
Availability: InStock
Rating: 4.4 (150 reviews)

Price:	US $ 6-7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CKLE2P-65
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	230/400
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Certification:	CE
Breaking Capacity:	4.5 Ka 6ka 10ka
Operation:	Electrical Type / Magnetic Type
Structure:	RCCB
Poles Number:	2p,4p

Product Description

1.Item name: CKLE2P-65
2.Standard:IEC/EN 61009-1
3.Function:Leakage protection
4. Rated voltage: 230/400
5. Rated current: 6A/10A/16A/20A/25A/32A/40A/63A
6. Frequency: 50/60Hz
1.Ambient temperature: -5ºC~+40ºC, 24 hours average temperature not exceed +35ºC.
2.Installment plance altitude: ≤2000m
3.Gas relative humidity:not exceed 50% at +40ºC, higher humidity allowed at lower temperature.
4.Pollution degree: 2 class
5.Installment condition: Mounted in the place without obvious impact or shock, no dangerous(explosion) dielectric without corrosive metal or damaging isolation gas(conductive dust).
6.Installment method: TH35-7.5 mounted rail, can be installed in distribution board, case or box. Generally mounted vertically. Tilted angle between mounting face and vertical face not exceed ±5°.
7.Mounted Category: II,III class.

1.Specifications
	Standard		IEC/EN 61009-1
Electrical feaures	Type(wave form of the earth leakage sensed)		A,AC,S
	Thermo-magnetic release characteristic		C,D
	Rated current In	A	6,10,16,20,25,32,40,50,63
	Rated voltage Ue	V	230/400
	Rated sensitivity l n	A	0.03,0.1,0.3
	Rated residual making and breaking capacity l m	A	500(In<63A) 630(In=63A)
	Rated short-circuit capacity lcn	A	4500/6000
	Break time under l n	s	<0.1
	Rated frequency	Hz	50/60
	Rated impulse withstand voltage(1.2/50)Uimp	V	4000
	Dielectric test voltage at ind.Freq.for 1min	kV	2
	Insulation voltage Ui		500
	Pollution degree		2
Mechanical features	Electrical life	t	4000
	Mechanical life	t	20000
	Protection degree		IP20
	Ambient temperature(with daily average 35 )	C	-5~+40
Installation	Terminal size top/bottom for cable	mm 2	25
Installation		AWG	18 to 3

Packing and shipping
-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
