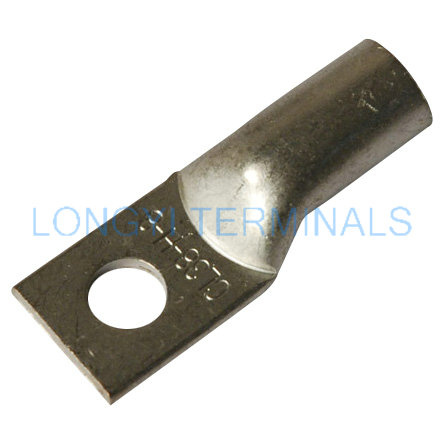

CL Type1-Hole Cable Lugs

CL Type1-Hole Cable Lugs
Price: Negotiable
Trade Terms: FOB
Min Order: 1 /Piece
Pay Type: L/C,T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Cable Lugs

Product Description

CL-TYPE1-HOLE cable lugs are suitable for the connection of copper conductors (section 14-500mm2) in power cable with electronic equipment, they are made of higher 99.99 % pure copper tube T2 and coated with tin. Working temperature -55oC-150oC.
PART NO
2010-2012
PART NO
2008-2010
ITEM NO DIMENSIONS
φE OD ID D B L
LY0005-0001 LY005001 CL14-H-6 6.4 8.8 5.8 18.3 28.5 50.0
LY0005-0002 LY005002 CL22-H-8 8.4 11.3 7.7 18.3 28.5 52.0
LY0005-0003 LY005003 CL38-H-10 10.5 12.4 9.8 18.3 34.0 64.0
LY0005-0004 LY005004 CL38-H-12 13.0 12.4 9.8 18.3 34.0 64.0
LY0005-0005 LY005005 CL60-H-10 10.5 14.0 11.0 20.5 36.0 70.0
LY0005-0006 LY005006 CL60-H-12 13.0 14.0 11.0 20.5 36.0 70.0
LY0005-0007 LY005007 CL70-H-10 10.5 15.0 12.0 21.4 38.0 72.0
LY0005-0008 LY005008 CL70-H-12 13.0 15.0 12.0 21.4 38.0 72.0
LY0005-0009 LY005009 CL80-H-12 13.0 16.0 13.0 23.2 38.0 75.0
LY0005-0010 LY005010 CL100-H-12 13.0 18.0 14.0 26.0 40.0 75.0
LY0005-0011 LY005011 CL125-H-12 13.0 20.0 16.0 28.0 40.0 85.0
LY0005-0012 LY005012 CL150-H-12 13.0 22.0 17.0 31.0 46.0 94.0
LY0005-0013 LY005013 CL180-H-12 13.0 23.0 18.2 33.0 46.0 98.0
LY0005-0014 LY005014 CL200-H-12 13.0 26.0 20.0 36.0 48.0 104.0
LY0005-0015 LY005015 CL250-H-12 13.0 28.0 22.0 40.0 48.0 114.0
LY0005-0016 LY005016 CL325-H-12 13.0 32.0 25.0 45.0 50.0 118.0
LY0005-0017 LY005017 CL400-H-12 13.0 37.0 30.0 48.0 60.0 130.0
LY0005-0018 LY005018 CL500-H-12 13.0 40.0 31.0 56.0 60.0 150.0
LY0005-0019 LY0005-0019 B-CL14-H-6 6.4 8.3 5.8 18.3 28.5 50.0
LY0005-0020 LY0005-0020 B-CL22-H-8 8.4 10.7 7.7 18.3 28.5 52.0
LY0005-0021 LY0005-0021 B-CL38-H-10 10.5 11.9 9.8 18.3 34.0 64.0
LY0005-0022 LY0005-0022 B-CL38-H-12 13.0 11.9 9.8 18.3 34.0 64.0
LY0005-0023 LY0005-0023 B-CL60-H-10 10.5 13.5 11.0 20.5 36.0 70.0
LY0005-0024 LY0005-0024 B-CL60-H-12 13.0 13.5 11.0 20.5 36.0 70.0
LY0005-0025 LY0005-0025 B-CL70-H-10 10.5 14.5 12.0 21.4 38.0 72.0
LY0005-0026 LY0005-0026 B-CL70-H-12 13.0 14.5 12.0 21.4 38.0 72.0
LY0005-0027 LY0005-0027 B-CL80-H-12 13.0 15.5 13.0 23.2 38.0 75.0
LY0005-0028 LY0005-0028 B-CL100-H-12 13.0 17.3 14.0 26.0 40.0 75.0
LY0005-0029 LY0005-0029 B-CL125-H-12 13.0 19.3 16.0 28.0 40.0 85.0
LY0005-0030 LY0005-0030 B-CL150-H-12 13.0 21.1 17.0 31.0 46.0 94.0
LY0005-0031 LY0005-0031 B-CL180-H-12 13.0 22.1 18.2 33.0 46.0 98.0
LY0005-0032 LY0005-0032 B-CL200-H-12 13.0 24.9 20.0 36.0 48.0 104.0
LY0005-0033 LY0005-0033 B-CL250-H-12 13.0 26.9 22.0 40.0 48.0 114.0
LY0005-0034 LY0005-0034 B-CL325-H-12 13.0 30.7 25.0 45.0 50.0 118.0
LY0005-0035 LY0005-0035 B-CL400-H-12 13.0 35.7 30.0 48.0 60.0 130.0
LY0005-0036 LY0005-0036 B-CL500-H-12 13.0 38.4 31.0 58.0 60.0 150.0
Taixing Longyi Terminals Co., Ltd is joint capital enterprise, was found in 1999. The company enjoys superior geographical location, which is only 1 km away from north exit in taixing of Ningtong High-way (the connection with Beijing-Shanghai Highway), separating with the most dynamic regions of Suzhou, Wuxi and Changzhou in Yangtze River by the river.

The company always manufacture and supply many types of copper tubes, copper plates, which is specialized in various standards of copper terminals, insulated and non-insluated terminals, LT(European style) terminals etc, with more than 4000 of specifications and an annual output of several billions. the output of copper tube terminal ranks NO 1 in China. the products are widely used in such industries as electric industry, control cabinet, household appliance, wiring harness manufacture industry etc. In 2009, company invest tens of millions on advanced and professional copper raw material production equipments for copper smelting and processing. we now make the material by ourselves for copper tube, copper sheet, copper bar etc, which both meet the needs of matching supply from customers and let our company is more competitive on delivery, quality, price etc.

We are strong in technical strength, advanced in production equipment, and scientific in management structure; all the products mould are designed and maken by ourselves. our company had passed the ISO9001-2000, all the products are in compliance with RoHS, REACH and CE. A part of consignment products(E182951, E255748) and OEM products (E319294)are in compliance with UL. over 60% of our products are exported to Spain, England, Holland, America, South-east Asia, Taiwan etc. we are supporting products to match with many famous domestic companies, such as Toshiba Electrical Transformer, Haier, Zhongxing Telecommunications, Bombardier, Siemens etc.

LongYi always follow the operating principle of "people oriented, tech on base, quality first and service supreme " and the quality policy of "constant improvement, high-class product, perfect service" we welcome guests and friends from home and abroad for instruction and cooperation, to create a bright future mutually.
