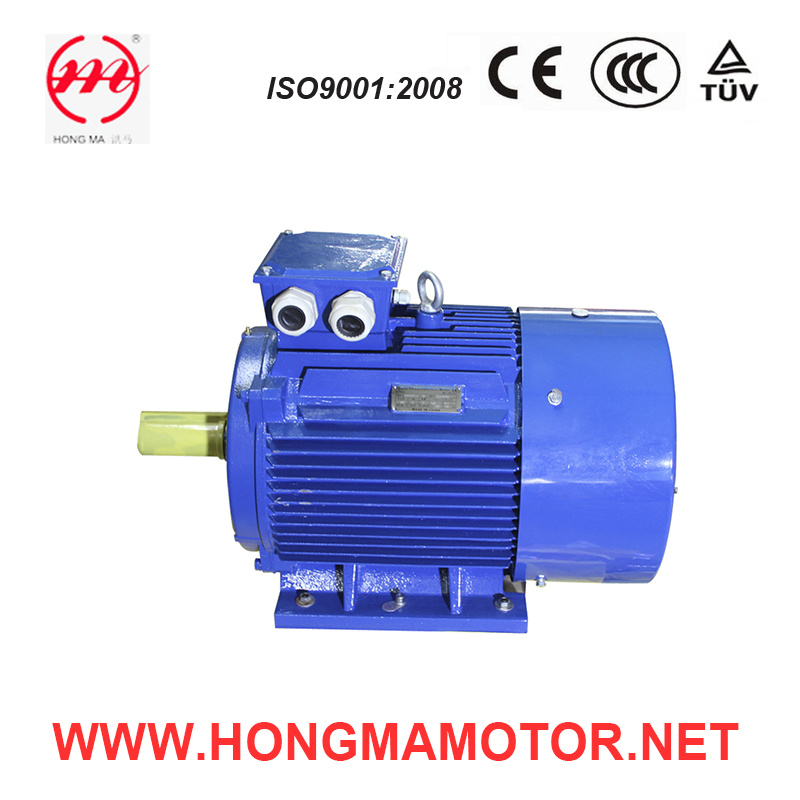

Closed Type Ie1 Tree Phase Induction Motor (180L-8-11KW)

Name: Closed Type Ie1 Tree Phase Induction Motor (180L-8-11KW)
Brand: all-electronics-online.com
SKU: 709844062
Availability: InStock
Rating: 4.9 (65 reviews)

Price:	US $ 329.7/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	1HMI180L-8-11KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame Size Range:	H180
Rated Voltage:	220/380V, 380/660V, 230/400V, 400V/690V
Rated Freqency:	50Hz, 60Hz
Rated Power Range:	11kw
Protection Class:	IP44, IP54, IP55
Insulation Class:	B\F\H
Mounting Type:	B3, B5, B14, B35multi and Pad Mounting
Ambient Temperature:	-20~+40 °c
Altitude:	Not Exceed 1000m
Origial Place:	Zhejiang, China
Application:	Universal
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	y-δ Starting
Certification:	Ce
Brand:	Hongma

Product Description

1HMI-IE1 (EFF2) Series Cast Iron Housing Three Phase Asynchronous Motor

1HMI-IE1 (EFF2) Series Three Phase Asynchronous Motor is the basic series of general-purpose motor with low voltage upgraded of Y series motor. HMI-IE1 (EFF2) Series Motors with beautiful appearance and reliable operation meet to the needs of general-purpose at domestic and overseas within the range of frame size 71 to 355.
HMI-IE1(EFF2) Series Motors are designed of high efficiency, energy saving, high quality performance, small vibration, low noise, long life, high reliability, easy maintenance and large start torque, etc. The mounting dimension and power totally conform to IEC standard.

1HMI-IE1 (EFF2) Series Cast Iron Housing Motor Characteristics and advantages:
Efficiency Class:IE1
Frame Size: H71-355
Poles: 2, 4, 6, 8, 10poles
Rated Power: 0.09-315KW
Rated Voltage: 220/380V, 380/660V, 230/400V, 400V/690V
Frequency: 50HZ, 60HZ
Protection Class: IP44, IP54, IP55, IP56
Insulation Class: B, F, H
Mounting Type:B3, B5, B35multi and pad mounting
Ambient Temperature: -20~+40 °C
Altitude: ≤1000M

1HMI-IE1 Series Technical Data

Model	TYPE	Output_kW	η(%)	Cosφ	r/in	Current_380V	Current_400V	Current_415V	Ts/Tn	Tax/Tn	Is/In	Weight(C.I.)	dB(A)
1HMI-IE1	71M1-2	0.37	70	0.81	2756	1.0	0.9	0.9	2.2	2.2	6.1	15.0	64
1HMI-IE1	71M2-2	0.55	72	0.82	2792	1.4	1.3	1.3	2.2	2.2	6.1	16	64
1HMI-IE1	80M1-2	0.75	72.1	0.83	2830	1.9	1.8	1.7	2.2	2.3	6.1	16	67
1HMI-IE1	80M2-2	1.1	75	0.84	2830	2.7	2.5	2.4	2.2	2.3	7	17	67
1HMI-IE1	90S-2	1.5	77.2	0.84	2840	3.5	3.3	3.2	2.2	2.3	7	22	72
1HMI-IE1	90L-2	2.2	79.7	0.85	2840	4.9	4.7	4.5	2.2	2.3	7	25	72
1HMI-IE1	100L-2	3	81.5	0.87	2860	6.4	6.1	5.9	2.2	2.3	7.5	33	76
1HMI-IE1	112M-2	4	83.1	0.88	2880	8.3	7.9	7.6	2.2	2.3	7.5	45	77
1HMI-IE1	132S1-2	5.5	84.7	0.88	2900	11.2	10.7	10.3	2.2	2.3	7.5	64	80
1HMI-IE1	132S2-2	7.5	86	0.88	2900	15.1	14.3	13.8	2.2	2.3	7.5	70	80
1HMI-IE1	160M1-2	11	87.6	0.89	2930	21.4	20.4	19.6	2.2	2.3	7.5	117	86
1HMI-IE1	160M2-2	15	88.7	0.89	2930	28.9	27.4	26.4	2.2	2.3	7.5	125	86
1HMI-IE1	160L-2	18.5	89.3	0.90	2930	35.0	33.2	32.0	2.2	2.3	7.5	147	86
1HMI-IE1	180M-2	22	89.9	0.90	2940	41.3	39.2	37.8	2	2.3	7.5	180	89
1HMI-IE1	200L1-2	30	90.7	0.90	2950	55.8	53.0	51.1	2	2.3	7.5	240	92
1HMI-IE1	200L2-2	37	91.2	0.90	2950	68.5	65.1	62.7	2	2.3	7.5	255	92
1HMI-IE1	225M-2	45	91.7	0.90	2970	82.8	78.7	75.9	2	2.3	7.5	309	92
1HMI-IE1	250M-2	55	92.1	0.90	2970	100.8	95.8	92.3	2	2.3	7.5	403	93
1HMI-IE1	280S-2	75	92.7	0.90	2970	136.6	129.8	125.1	2	2.3	7.5	544	94
1HMI-IE1	280M-2	90	93	0.91	2970	161.6	153.5	148.0	2	2.3	7.5	620	94
1HMI-IE1	315S-2	110	93.3	0.91	2980	196.9	187.0	180.2	1.8	2.2	7.1	980	96
1HMI-IE1	315M-2	132	93.5	0.91	2980	235.7	223.9	215.8	1.8	2.2	7.1	1080	96
1HMI-IE1	315L1-2	160	93.8	0.92	2980	281.7	267.6	257.9	1.8	2.2	7.1	1160	99
1HMI-IE1	315L2-2	200	94	0.92	2980	351.4	333.8	321.7	1.8	2.2	7.1	1190	99
1HMI-IE1	355M-2	250	94.0	0.92	2980	439.2	417.3	402.2	1.6	2.2	7.1	1760	103
1HMI-IE1	355L-2	315	94.0	0.92	2980	553.4	525.8	506.8	1.6	2.2	7.1	1850	103
1HMI-IE1	71M1-4	0.25	65.0	0.74	1347	0.8	0.8	0.7	2.1	2.2	5.2	14.0	55
1HMI-IE1	71M2-4	0.37	67.0	0.75	1340	1.1	1.1	1.0	2.1	2.2	5.2	14.5	55
1HMI-IE1	80M1-4	0.55	71.0	0.75	1390	1.6	1.5	1.4	2.4	2.3	5.2	17	58
1HMI-IE1	80M2-4	0.75	72.1	0.76	1390	2.1	2.0	1.9	2.3	2.3	6	18	58
1HMI-IE1	90S-4	1.1	75	0.77	1390	2.9	2.7	2.6	2.3	2.3	6	22	61
1HMI-IE1	90L-4	1.5	77.2	0.79	1390	3.7	3.6	3.4	2.3	2.3	6	27	61
1HMI-IE1	100L1-4	2.2	79.7	0.81	1410	5.2	4.9	4.7	2.3	2.3	7	34	64
1HMI-IE1	100L2-4	3	81.5	0.82	1410	6.8	6.5	6.2	2.3	2.3	7	38	64
1HMI-IE1	112M-4	4	83.1	0.82	1435	8.9	8.5	8.2	2.3	2.3	7	43	65
1HMI-IE1	132S-4	5.5	84.7	0.83	1440	11.9	11.3	10.9	2.3	2.3	7	68	71
1HMI-IE1	132M-4	7.5	86	0.84	1440	15.8	15.0	14.4	2.3	2.3	7	81	71
1HMI-IE1	160M-4	11	87.6	0.84	1460	22.7	21.6	20.8	2.2	2.3	7	123	75
1HMI-IE1	160L-4	15	88.7	0.85	1460	30.2	28.7	27.7	2.2	2.3	7.5	144	75
1HMI-IE1	180M-4	18.5	89.3	0.86	1470	36.6	34.8	33.5	2.2	2.3	7.5	182	76
1HMI-IE1	180L-4	22	89.9	0.86	1470	43.2	41.1	39.6	2.2	2.3	7.5	190	76
1HMI-IE1	200L-4	30	90.7	0.86	1470	58.4	55.5	53.5	2.2	2.3	7.2	270	79
1HMI-IE1	225S-4	37	91.2	0.87	1480	70.9	67.3	64.9	2.2	2.3	7.2	284	81
1HMI-IE1	225M-4	45	91.7	0.87	1480	85.7	81.4	78.5	2.2	2.3	7.2	320	81
1HMI-IE1	250M-4	55	92.1	0.87	1480	104.3	99.1	95.5	2.2	2.3	7.2	427	83
1HMI-IE1	280S-4	75	92.7	0.87	1480	141.3	134.2	129.4	2.2	2.3	7.2	562	86
1HMI-IE1	280M-4	90	93	0.87	1480	169.0	160.6	154.8	2.2	2.3	7.2	667	86
1HMI-IE1	315S-4	110	93.3	0.88	1490	203.6	193.4	186.4	2.1	2.2	6.9	1000	93
1HMI-IE1	315M-4	132	93.5	0.88	1490	243.8	231.6	223.2	2.1	2.2	6.9	1100	93
1HMI-IE1	315L1-4	160	93.8	0.89	1490	291.2	276.6	266.6	2.1	2.2	6.9	1160	97
1HMI-IE1	315L2-4	200	94	0.89	1490	363.2	345.1	332.6	2.1	2.2	6.9	1270	97
1HMI-IE1	355M-4	250	94.0	0.90	1490	449.0	426.5	411.1	2.1	2.2	6.9	1700	101
1HMI-IE1	355L-4	315	94.0	0.90	1490	565.7	537.4	518.0	2.1	2.2	6.9	1850	101
1HMI-IE1	71M1-6	0.18	56.0	0.66	865	0.7	0.7	0.7	1.9	2	4	14.0	52
1HMI-IE1	71M2-6	0.25	59.0	0.68	863	0.9	0.9	0.9	1.9	2	4	14.5	52
1HMI-IE1	80M1-6	0.37	62.0	0.70	890	1.3	1.2	1.2	1.9	2	4.7	17.0	54
1HMI-IE1	80M2-6	0.55	65.0	0.72	890	1.8	1.7	1.6	1.9	2	4.7	19.0	54
1HMI-IE1	90S-6	0.75	70	0.72	910	2.3	2.1	2.1	2	2.1	5.5	23.0	57
1HMI-IE1	90L-6	1.1	72.9	0.73	910	3.1	3.0	2.9	2	2.1	5.5	25	57
1HMI-IE1	100L-6	1.5	75.2	0.75	920	4.0	3.8	3.7	2	2.1	5.5	33	61
1HMI-IE1	112M-6	2.2	77.7	0.76	935	5.7	5.4	5.2	2	2.1	6.5	45	65
1HMI-IE1	132S-6	3	79.7	0.76	960	7.5	7.1	6.9	2.1	2.1	6.5	63	69
1HMI-IE1	132M1-6	4	81.4	0.76	960	9.8	9.3	9.0	2.1	2.1	6.5	73	69
1HMI-IE1	132M2-6	5.5	83.1	0.77	960	13.1	12.4	12.0	2.1	2.1	6.5	84	69
1HMI-IE1	160M-6	7.5	84.7	0.77	970	17.5	16.6	16.0	2	2.1	6.5	119	73
1HMI-IE1	160L-6	11	86.4	0.78	970	24.8	23.6	22.7	2	2.1	6.5	147	73
1HMI-IE1	180L-6	15	88.7	0.81	970	31.7	30.1	29.0	2	2.1	7	195	73
1HMI-IE1	200L1-6	18.5	88.6	0.81	970	39.2	37.2	35.9	2.1	2.1	7	220	76
1HMI-IE1	200L2-6	22	89.2	0.83	970	45.1	42.9	41.3	2.1	2.1	7	250	76
1HMI-IE1	225M-6	30	90.2	0.84	980	60.2	57.2	55.1	2	2.1	7	292	76
1HMI-IE1	250M-6	37	90.8	0.86	980	72.0	68.4	65.9	2.1	2.1	7	408	78
1HMI-IE1	280S-6	45	91.4	0.86	980	87.0	82.6	79.6	2.1	2	7	536	80
1HMI-IE1	280M-6	55	91.9	0.86	980	105.7	100.4	96.8	2.1	2	7	595	80
1HMI-IE1	315S-6	75	92.6	0.86	990	143.1	135.9	131.0	2	2	7	990	85
1HMI-IE1	315M-6	90	92.9	0.86	990	171.2	162.6	156.7	2	2	7	1080	85
1HMI-IE1	315L1-6	110	93.3	0.86	990	208.3	197.9	190.7	2	2	6.7	1150	85
1HMI-IE1	315L2-6	132	93.5	0.87	990	246.6	234.2	225.8	2	2	6.7	1210	85
1HMI-IE1	355M1-6	160	93.8	0.88	990	294.5	279.8	269.7	1.9	2	6.7	1600	92
1HMI-IE1	355M3-6	200	94	0.88	990	367.4	349.0	336.4	1.9	2	6.7	1700	92
1HMI-IE1	355L2-6	250	94.0	0.88	990	459.2	436.2	420.5	1.9	2	6.7	1800	92
1HMI-IE1	80M1-8	0.18	51.0	0.61	630	0.9	0.8	0.8	1.8	1.9	3.3	17	52
1HMI-IE1	80M2-8	0.25	54.0	0.61	640	1.2	1.1	1.1	1.8	1.9	3.3	19	52
1HMI-IE1	90S-8	0.37	62.0	0.61	660	1.5	1.4	1.4	1.8	1.9	4	23	56
1HMI-IE1	90L-8	0.55	63.0	0.61	660	2.2	2.1	2.0	1.8	2	4	25	56
1HMI-IE1	100L1-8	0.75	71.0	0.67	690	2.4	2.3	2.2	1.8	2	4	33	59
1HMI-IE1	100L2-8	1.1	73.0	0.69	690	3.3	3.2	3.0	1.8	2	5	38	59
1HMI-IE1	112M-8	1.5	75.0	0.69	680	4.4	4.2	4.0	1.8	2	5	50	61
1HMI-IE1	132S-8	2.2	78.0	0.71	710	6.0	5.7	5.5	1.8	2	6	63	64
1HMI-IE1	132M-8	3	79.0	0.73	710	7.9	7.5	7.2	1.8	2	6	79	64
1HMI-IE1	160M1-8	4	81.0	0.73	720	10.3	9.8	9.4	1.9	2	6	118	68
1HMI-IE1	160M2-8	5.5	83.0	0.74	720	13.6	12.9	12.5	2	2	6	119	68
1HMI-IE1	160L-8	7.5	85.5	0.75	720	17.8	16.9	16.3	2	2	6	145	68
1HMI-IE1	180L-8	11	87.5	0.76	730	25.1	23.9	23.0	2	2	6.6	184	70
1HMI-IE1	200L-8	15	88.0	0.76	730	34.1	32.4	31.2	2	2	6.6	750	73
1HMI-IE1	225S-8	18.5	90.0	0.76	730	41.1	39.0	37.6	1.9	2	6.6	266	73
1HMI-IE1	225M-8	22	90.5	0.78	740	47.4	45.0	43.4	1.9	2	6.6	292	73
1HMI-IE1	250M-8	30	91.0	0.79	740	63.4	60.2	58.1	1.9	2	6.6	405	75
1HMI-IE1	280S-8	37	91.5	0.79	740	77.8	73.9	71.2	1.9	2	6.6	520	76
1HMI-IE1	280M-8	45	92.0	0.79	740	94.1	89.4	86.1	1.9	2	6.6	592	76
1HMI-IE1	315S-8	55	92.8	0.81	740	111.2	105.6	101.8	1.8	2	6.6	1000	82
1HMI-IE1	315M-8	75	93.0	0.81	740	151.3	143.7	138.5	1.8	2	6.6	1100	82
1HMI-IE1	315L1-8	90	93.8	0.82	740	177.8	168.9	162.8	1.8	2	6.6	1160	82
1HMI-IE1	315L2-8	110	94.0	0.82	740	216.8	206.0	198.5	1.8	2	6.4	1230	82
1HMI-IE1	355M1-8	132	93.7	0.82	740	261.0	248.0	239.0	1.8	2	6.4	1600	90
1HMI-IE1	355M2-8	160	94.2	0.82	740	314.7	299.0	288.2	1.8	2	6.4	1700	90
1HMI-IE1	355L-8	200	94.5	0.83	740	387.4	368.1	354.8	1.8	2	6.4	1800	90
1HMI-IE1	315S-10	45	91.5	0.75	590	99.6	94.7	91.2	1.5	2	6.2	810	82
1HMI-IE1	315M-10	55	92.0	0.75	590	121.1	115.1	110.9	1.5	2	6.2	930	82
1HMI-IE1	315L1-10	75	92.5	0.76	590	162.1	154.0	148.4	1.5	2	6.2	1045	82
1HMI-IE1	315L2-10	90	93.0	0.77	590	191.0	181.4	174.9	1.5	2	6.2	1115	82
1HMI-IE1	355M1-10	110	93.2	0.78	590	229.9	218.4	210.5	1.3	2	6	1500	90
1HMI-IE1	355M2-10	132	93.5	0.78	590	275.0	261.3	251.8	1.3	2	6	1600	90
1HMI-IE1	355L-10	160	93.5	0.78	590	333.3	316.7	305.2	1.3	2	6	1700	90

Package

Frame NO. 80--132 :Package by carton box and then packed by wooden box

Frame NO.160 and above:one wooden box per set
