Cm1 Series MCCB 63-800A Cam1
| Price: |
US $ 4-8/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
CAM1 |
| Manufacturer: |
Original Factory |
| Company Certification: |
ISO9001,SGS |
| Company Credit Rate: |
AAA |
| Company Size: |
Over 2000 Stuff |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Certification: |
CCC |
| Poles Number: |
3p,4p |
Product Description

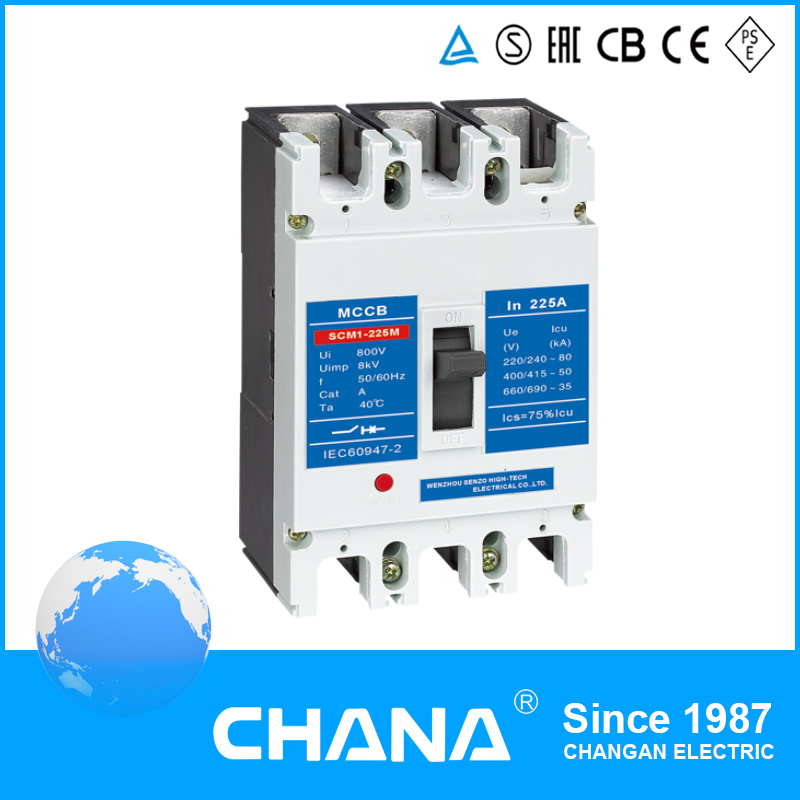

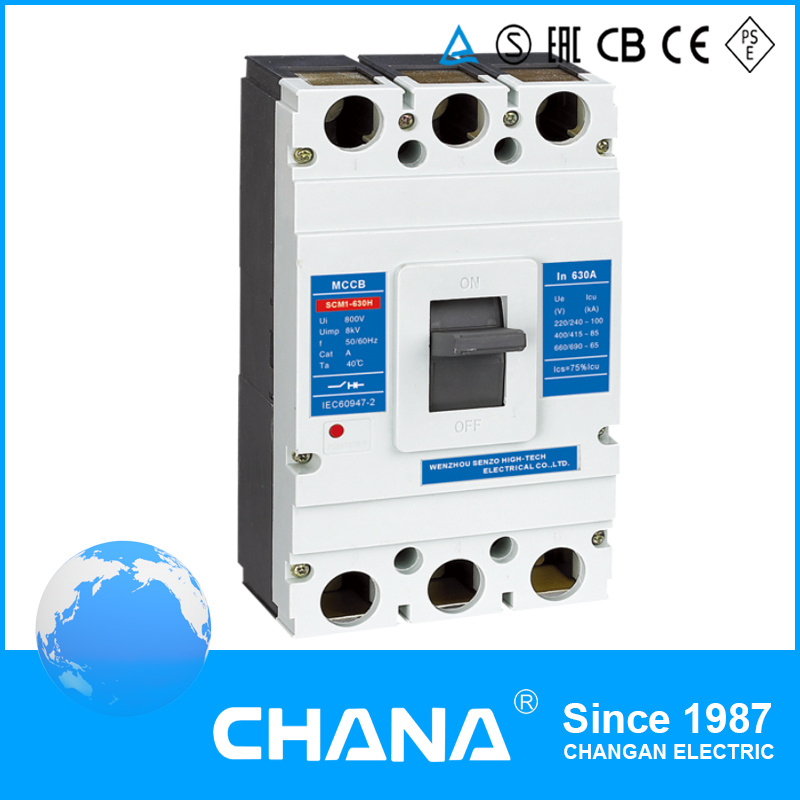

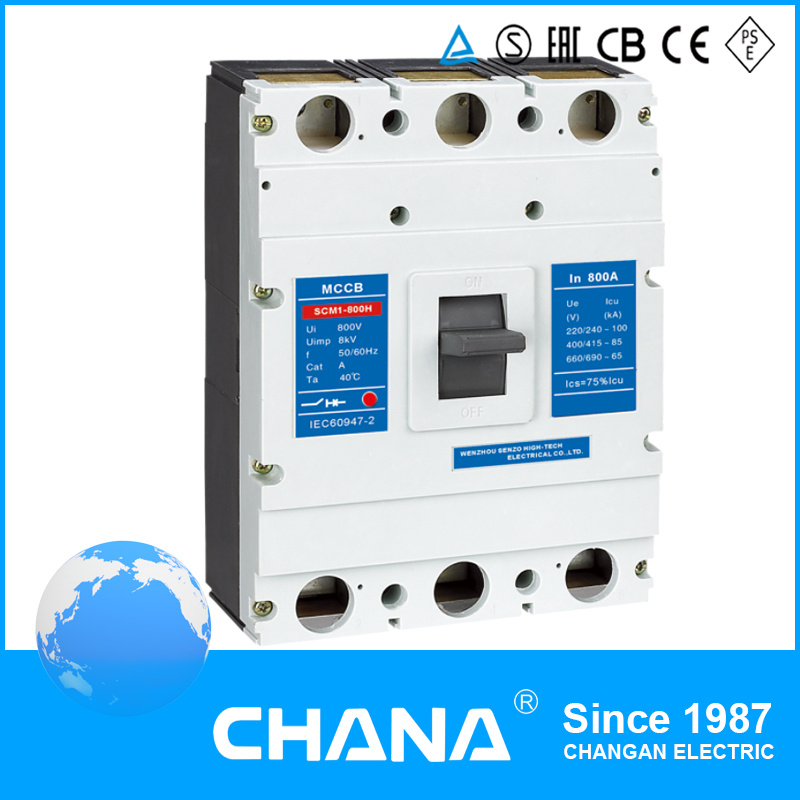

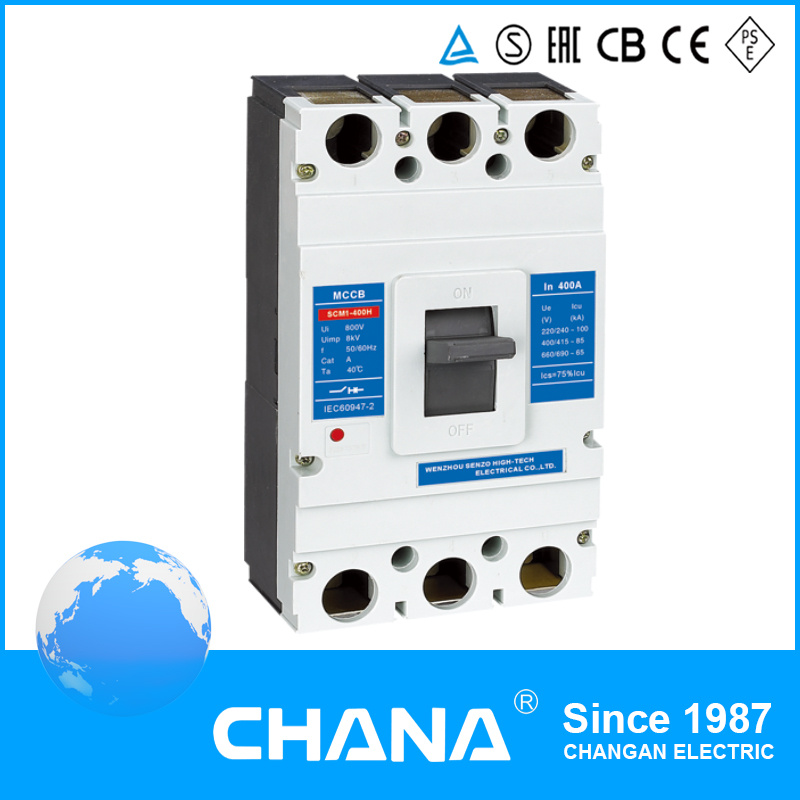

1.ApplicationCAM1 series moulded case circuit breaker is a new type breaker which is applied with rated insulating voltage 800V(500V for CAM1-63),rated working voltage 690V and used for infrequent exchange and start-up in AC(60)Hz condition. The MCCB is of protecting function in overloading, short-circuit, and under voltage situation to protect circuit system and power device from damage. The MCCB can be divided into L;M;H types according to their rated limit short-circuit breaking capacity.The MCCB is advantageous for its compact body, high breaking capacity(some even on flying arc),short arc-casting and superior aseismatic function.The MCCB has function of insulation wit its markThe product complies with IEC60947-2,GB14048.2. 2.Normal working situationAltitude 2000m and below;Ambient temperature no higher than+40ºC(45ºC for watercraft)no less than-5ºC;Stand moist air;Stand salty&oil mildew;Most gradient 22.5°;Atmosphere without corrupt&electric air and no danger of explosion;Without rain effect. 3.Main technique data of MCCB Table1:| Type | CAM1-63L CAM1-63M | CAM1-100L CAM1-100M | CAM1-225L CAM1-225M/CAM1250L CAM1-250M |
| rated frame level current lnm(A) | 63 | 100 | 225 |
| Rated current ln (A) | 10,12,16,20,25,32,40,50,63 | 16,20,25,32,40,50,63,80,100 | 125,160,180,200,225,(250) |
| Rated insulated voltage Ui(AC V) | 500 | 800 | 800 |
| Rated impulse-stand voltage Ui(V) | 8000 | 8000 | 8000 |
| Rated working voltage Ue(AC V) | 400/415 | 400/415 | 400/415 |
| Poles | 3 | 4 | 3 | 4 | 3 | 4 |
| Rated limited short-circuit breaking capacity level | L | M | L | M | L | M | L | M | L | M | L | M |
| Rated limited short-circuit breaking capacity lcu(KA) | 400/415V | 20 | 30 | 20 | 30 | 30 | 50 | 30 | 50 | 35 | 50 | 35 | 50 |
| Rated working short-circuit breaking capacity lcs(KA) | 400/415V | 15 | 22.5 | 15 | 22.5 | 22.5 | 37.5 | 22.5 | 37.5 | 26.25 | 37.5 | 26.25 | 37.5 |
| Operation characteristic (Times) | Connected | 2000 | 2000 | 1500 |
| Break | 10000 | 10000 | 8500 |
| Outlook dimension | L | 135 | 150 | 165 |
| W | 78 | 103 | 92 | 122 | 107 | 142 |
| H | 73.5 | 81.5 | 72 | 88 | 86 | 103 |
| Weight(g) | 735 | 849 | 1464 | 1952 | 1257 | 1493 | 1493 | 1900 | 1714 | 2014 | 1900 | 2014 |
| Arcing distance(mm) | ≤50 | ≤50 | ≤50 |
Table2:| Type | CAM1-400M CAM1-400H | CAM1-630M CAM1-630H | CAM1-800H |
| rated frame level current lnm(A) | 400 | 630 | 800 |
| Rated current ln (A) | 225,250,315,350,400 | 400,500,630 | 630,700,800 |
| Rated insulated voltage Ui(AC V) | 800 | 800 | 800 |
| Rated impulse-stand voltage Ui(V) | 8000 | 8000 | 8000 |
| Rated working voltage Ue(AC V) | 400/415 | 400/415 | 400/415 |
| Poles | 3 | 4 | 3 | 4 | 3 | 4 |
| Rated limited short-circuit breaking capacity level | M | H | M | H | M | H | M | H | H | H |
| Rated limited short-circuit breaking capacity lcu(KA) | 400/415V | 50 | 70 | 50 | 70 | 50 | 70 | 50 | 70 | 80 | 80 |
| Rated working short-circuit breaking capacity lcs(KA) | 400/415V | 37.5 | 52.5 | 37.5 | 52.5 | 37.5 | 52.5 | 37.5 | 52.5 | 60 | 60 |
| Operation characteristic (Times) | Connected | 1000 | 1000 | 500 |
| Break | 5000 | 4000 | 3000 |
| Outlook dimension | L | 257 | 270 | 280 |
| W | 150 | 198 | 182 | 240 | 210 | 280 |
| H | 106.5 | 110 | 115.5 |
| Weight(g) | 5420 | 7443 | 6116 | 7116 | 7116 | 9929 | 8526 | 11731 |
| Arcing distance(mm) | ≤50 | ≤100 | ≤100 |

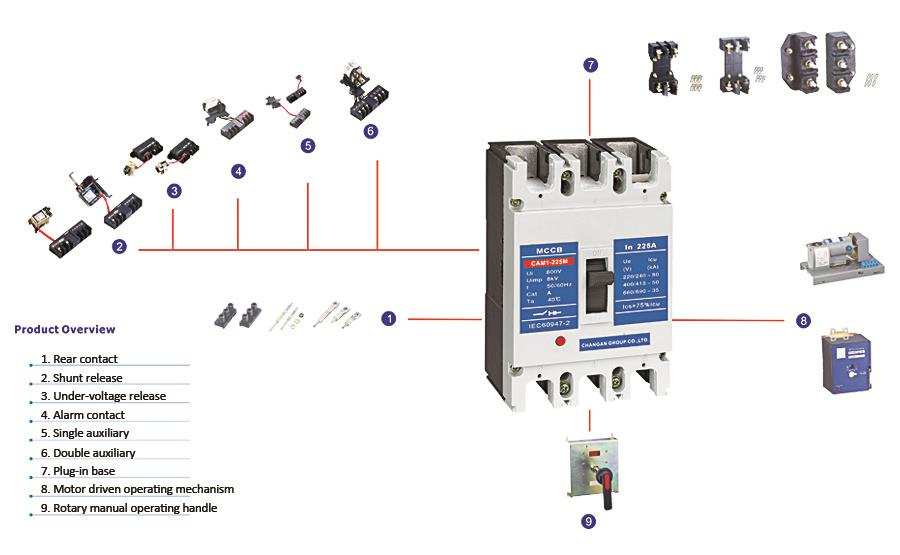

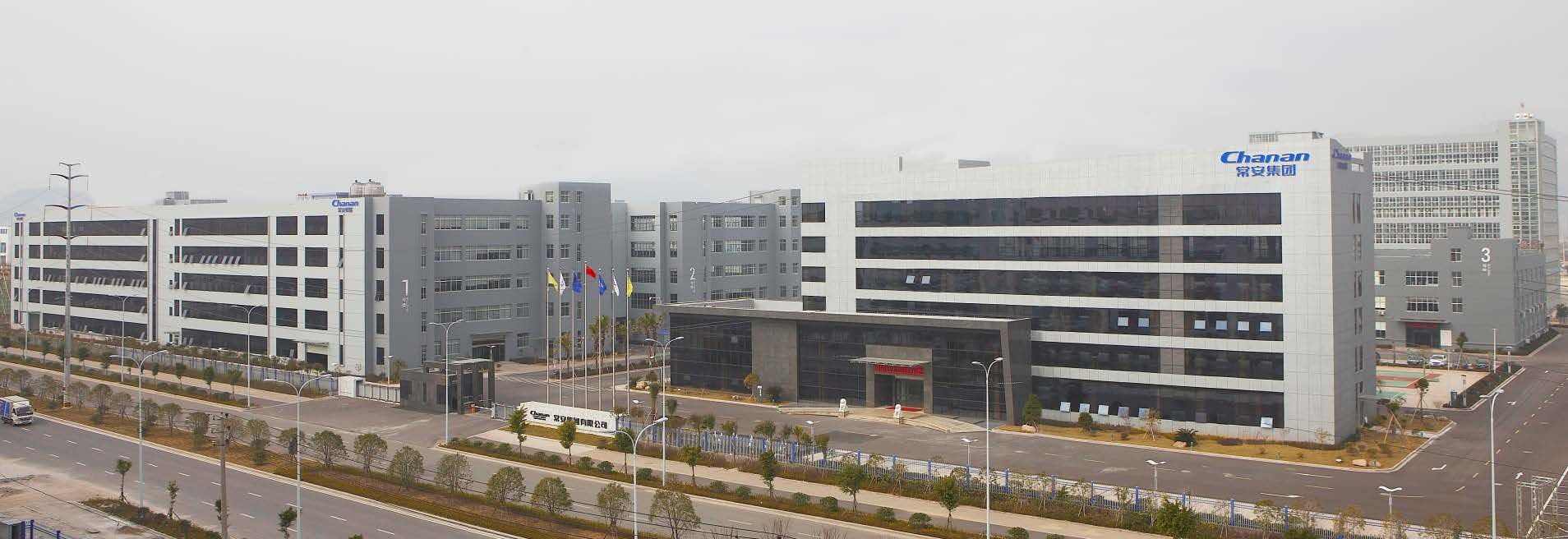

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
