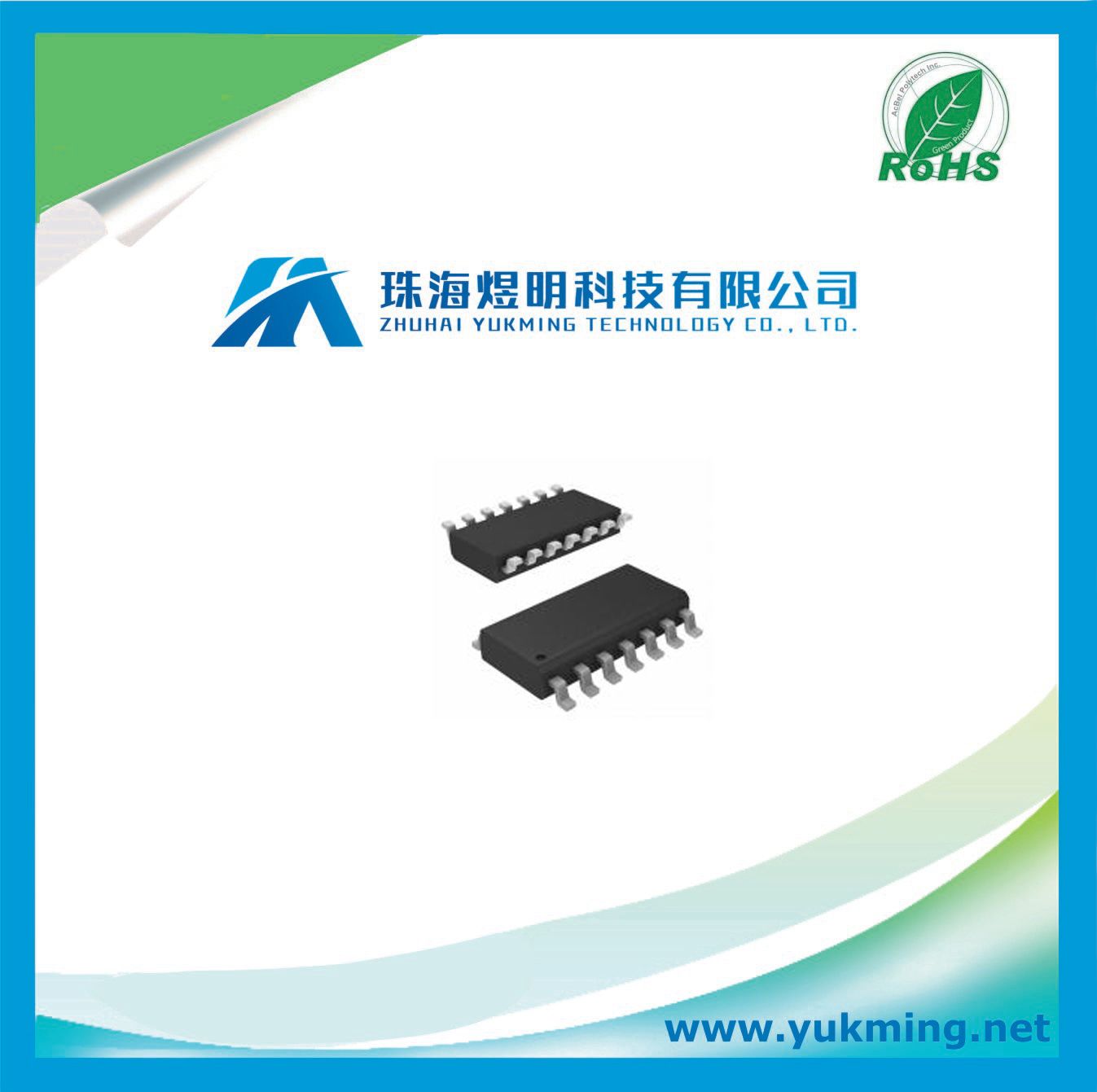

CMOS Quad Bilateral Switch IC Integrated Circuit CD4066

Prod Model:	CD4066

Product Description

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.


Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require




CMOS QUAD BILATERAL SWITCH

 15-V Digital or ±7.5-V Peak-to-Peak
Switching
 125- Typical On-State Resistance for 15-V
Operation
 Switch On-State Resistance Matched to
Within 5 Over 15-V Signal-Input Range
 On-State Resistance Flat Over Full
Peak-to-Peak Signal Range
 High On/Off Output-Voltage Ratio: 80 dB
Typical at f
is = 10 kHz, RL = 1 kΩ
 High Degree of Linearity: <0.5% Distortion
Typical at f
is = 1 kHz, Vis = 5 V p-p,
VDD - VSS ≥ 10 V, RL = 10 kΩ
 Extremely Low Off-State Switch Leakage,
Resulting in Very Low Offset Current and
High Effective Off-State Resistance: 10 pA
Typical at VDD - VSS = 10 V, TA = 25°C
 Extremely High Control Input Impedance
(Control Circuit Isolated From Signal
Circuit): 1012 Typical
 Low Crosstalk Between Switches: -50 dB
Typical at f
is = 8 MHz, RL = 1 kΩ
 Matched Control-Input to Signal-Output
Capacitance: Reduces Output Signal
Transients
 Frequency Response, Switch On = 40 MHz
Typical
 100% Tested for Quiescent Current at 20 V
 5-V, 10-V, and 15-V Parametric Ratings
 Meets All Requirements of JEDEC Tentative
Standard No. 13-B, Standard Specifications
for Description of "B" Series CMOS
Devices
 Applications:
-  Analog Signal Switching/Multiplexing:
Signal Gating, Modulator, Squelch
Control, Demodulator, Chopper,
Commutating Switch
-  Digital Signal Switching/Multiplexing
-  Transmission-Gate Logic Implementation
-  Analog-to-Digital and Digital-to-Analog
Conversion
-  Digital Control of Frequency, Impedance,
Phase, and Analog-Signal Gain
