Cnlinko IP67 5pin Power Application for LED Scree waterproof Connector

Name: Cnlinko IP67 5pin Power Application for LED Scree waterproof Connector
Brand: all-electronics-online.com
SKU: 802931805
Availability: InStock
Rating: 4.6 (150 reviews)

Price:	US $ 3.6-4.3/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP-20-C05PE-01-001
Certification:	Ce.CCC, ISO9001
Connector Type:	5pin
Rated Current:	12A
Rated Voltage:	500V
Protection Level:	IP67
Connecting Mode:	Easy Locking Type
Assembly Wire:	Soldering
Contact Resistance:	<2.5mΩ
Copper Needles:	Copper Alloy(Gold-Plated)
Housing,The Insulating Parts:	High Performance Engineering Plastics
Application:	LED Screen, Medical Equipment
Gender:	Male and Female

Product Description

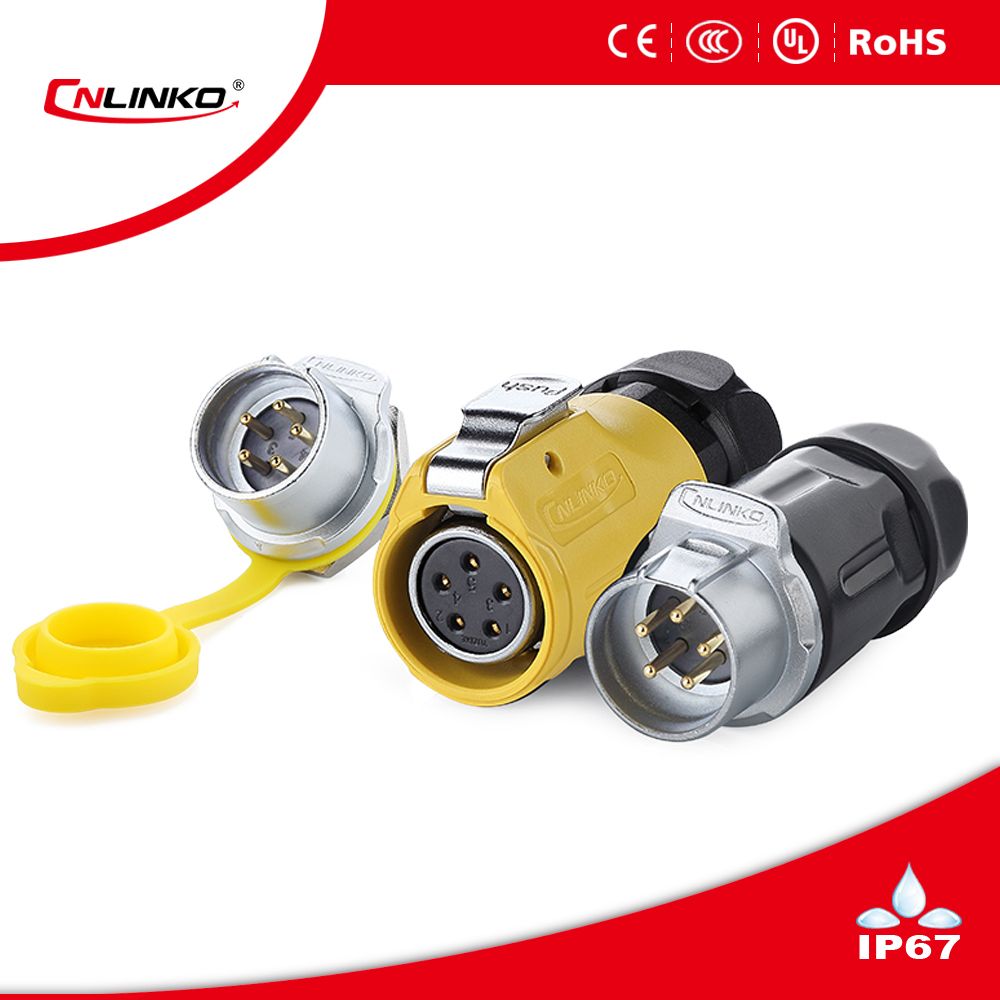

High Quality Cnlinko IP67 5pin Power Application Female Gender Panel Mount Socket for LED Screen/ LP20 waterproof power connector

LP-20 series connector is widely used in

LED screen
Audio visual equiment
Medical equiment
Industrial equment
AV system

Data Sheet:

Cable Specification:	1.0 mm2 ~1.5 mm2 /18~16AWG
Diameter Range:	Φ7mm ~Φ9mm
Contact Diameter x number:	Φ1.8×5
Rated Current (A):	12A
Operating voltage(AC.V.Rms):	500V
Contact resistance:	<2.5mΩ
Withstanding voltage(AC.V)1minute:	2500V
Insulation resistance:	>500mΩ
Protection Level:	IP67
Durability:	≥500 times plug in /out
Working Temperature:	-40°C~80°C
Connecting mode:	Easy locking type
Assembly wire:	Soldering
Housing&Insulation parts materials:	High-performance engineering plastics
With zinc alloy hardware and copper pins With silica gel materials waterproof cap UL94-V0 Flammability

Packaging & Shipping

Normally, our price is based on our box packing.
Customized packing is welcome , MOQ of printing customized box is 1000 pcs/model
Delivery Detail: 3-5 working days after received deposit .
You may choose our shipping partner or your own partner .
100% T/T in advance is required after confirming the order.

Our Services

CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
Supply OEM service .
We have professional quality control system and R&D department to strictly manufacture each product.
100,000 pcs per month .
National level laboratory , and have flexible production line, to make quick action to urgent customized needs.
We will supply the best service to you . Anything ,please feel free to contact us at:
Oversea's department
Tel:0086-15697323896

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
