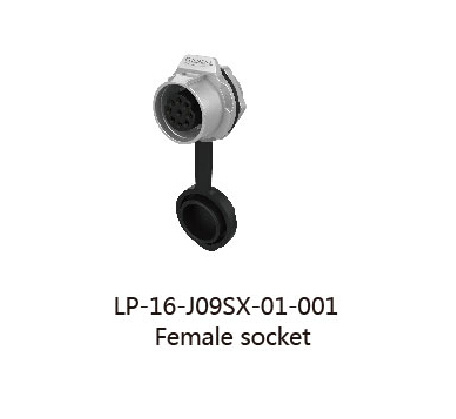

Cnlinko Waterproof Connector/9 Way Panel Mount Socket

Prod Model:	LP-16-J09SX-01-001

Product Description

cnlinko waterproof connector/9 way panel mount socket

LP-16 type connector is plastic and smaller size waterproof power connector,which has been widely used in:
1: LED tri-proof lighting/outdoor lighting
2: LED display and screen
3: Testing measurement
4: Industrial control system
5: Hair trimmer

Model No.: LP-16-C09PE-01-001
Data Sheet:
Cable Specification: 0.15mm2 ~ 0.2 mm2 /26~24 AWG
Diameter Range: Φ5.5mm ~Φ7mm
Contact Diameter x number:Φ1.0×9
Rated Current (A): 5A
Operating voltage(AC.V.rms): 400V
Contact resistance: <5mΩ
Withstanding voltage(AC.V)1minute:1500V
Insulation resistance:>500mΩ
Protection Level: IP65/IP67
Durability:≥500 times plug in /out
Working Temperature:-40°C~80°C
Connecting mode: Fast locking/easy locking
Assembly wire: Soldering/Crimping
Materials for all parts:
Housing&Insulation Parts : High-performance engineering plastics
Hardware: Zinc alloy ( pearl hard chrome)
Cooper pins: copper alloy (gold plated 4U)
Waterproof cover: Silica gel
Flammability rating: UL94-V0

Contact Information:
Eunice Tan(sales manager)


H.P: +86-15013650758

Packaging & Payment term & Shippment
Packaging: 10pcs/small box, 240pcs/ctn
Payment term: T/T, Western Union, Paypal
Shippment: By express, by sea, by air
