Coaxial Cable Rg11 Specifications

Name: Coaxial Cable Rg11 Specifications
Brand: all-electronics-online.com
SKU: 768545695
Availability: InStock
Rating: 4.3 (82 reviews)

Price:	US $ 0.04-0.05/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	30000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	Coaxial Cable Rg11 Specifications
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket:	PVC,PE
Jacket Color:	White, Gray, Black, Yellow, Brown, Red
Conductor Size:	28AWG, 26AWG, 24AWG, 23AWG, 22AWG
Delivery Detail:	2 Weeks for One Container
Spec:	Available on Request
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial Cable
Brand:	DSC

Product Description

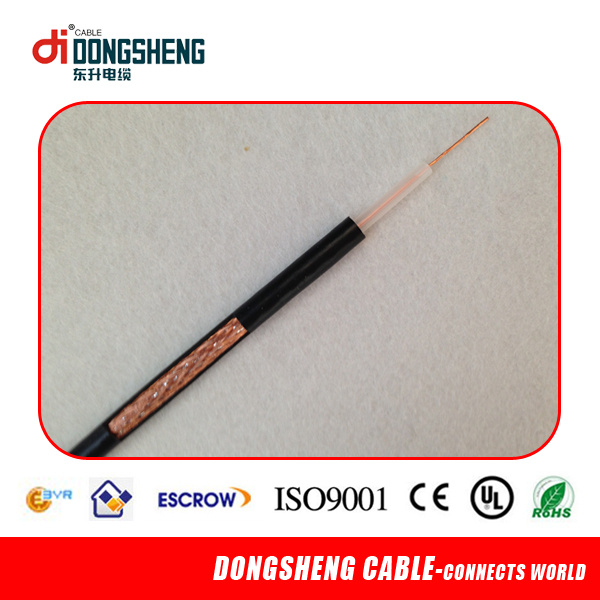

Coaxial Cable Rg11 Specifications
1. OEM is OK
2. ISO9001/CE/REACH/ETL
3. Stable quality with competitive

Specification:

Physical Dimensions
Component		Standard Shield	Tri-Shield	Quad-Shield
Conductor	Material	CCS/BC	CCS/BC	CCS/BC
Conductor	Dia. (mm)	1.63±0.01	1.63±0.01	1.63±0.01
Dielectric	Material	Foam PE	Foam PE	Foam PE
Dielectric	Dia. (mm)	7.11±0.10	7.11±0.10	7.11±0.10
Shield	Material	Al Foil + Al Braid	Al Foil + Al Braid + Al Foil	(Al Foil + Al Braid)*2
Shield	Coverage	40%-95%	40%-95%	40%-95%
Jacket	Material	PVC/PE	PVC/PE	PVC/PE
Jacket	Dia. (mm)	10.03±0.10	10.16±0.10	10.34±0.10
Messenger	Material	Galvanized Steel	Galvanized Steel	Galvanized Steel
Messenger	Dia. (mm)	1.83±0.01	1.83±0.01	1.83±0.01

Mechanical Characteristics

Minimum Breaking Strength of Messenger

166kgf

Electrical Characteristics

Impedance(Ω)			75±3
Velocity of Propagation			83%
Capacitance(pF/m)			53.1
Structural Return Loss(≥dB)			20

Attenuation [@ 68° F. (20° C)]

Frequency(MHz)			Maximum(dB/100m)
5			1.25
55			3.18
211			5.94
300			7.05
400			8.10
550			9.65
750			11.48
1000			13.88
1450			18.10
1800			20.60
2250			23.50
3000			28.90

If you have any interest in our products,
Contact us any time,We'll answer you in the first time.

24 Hours Available
Name:Wendy Lee
Mobile (waht's app):+86 15958030333
Phone:+86-571-61070066
Fax:+86-571-63763198

Web address:www.dongsheng.com

DSC Located at the city of Lin'an, Hangzhou, Hangzhou Lin'an Dongsheng Cable Co., Ltd. is 28km away from Hangzhou City, covering an area of 30000 square meters, with beautiful landscape and convenient communication facilities.

Since 1991, 24 year cable experience, our rapid development helps us to be the industry leader. Our company has passed ISO9001 quality system certification & UL certification, and had foreign trade license. Our company is on the top with comprehensive strength.

Main products in our company cover LAN Network Cables Cat5e CAT6 Cat3, Coaxial CCTV/CATV Cable RG6 RG59 RG11 RG59-2C QR500 RG58 RG213 LMR400 KX6 19VATC CT100 SAT703 ect. Telephone Cable, Alarm Cable and Cable Accessories

Our motto is "Keeping pace with the time, and going up like the sun", just as our company's name, Dongsheng, suggests. We are looking forward to establishing long term & mutually beneficial business relationship with you.
