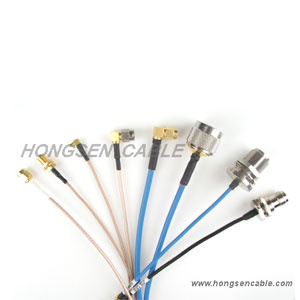

Coaxial Cable - RG400

Name: Coaxial Cable - RG400
Brand: all-electronics-online.com
SKU: 639688295
Availability: InStock
Rating: 4.3 (79 reviews)

Price:	Negotiable
Trade Terms:	T/T, L/C
Min Order:	5KM
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Description

Coaxial Cable RG400

SPECIFICATION:
Inner conductor: 19/0.195 stranded silver plated copper
Insulation: 2.95mm PTFE
Outer conductor: Double shield, Silver plated copper Braid
Jacket: 4.95mm FEP

Electrical properties:
Capacitance (pF/m): 96.5
Impedance (Ω ): 50.0
Velocity of Propagation (%): 70.0
Max Operating Frequency (MHz): 8000.0
Max Operating Voltage (RMS): 1900.0
Operating Temp Range (º C): -55 to 200

APPLICATION:
Application: Radio Frequency, Telecommunication

Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.

Our Mission

We are dedicated to providing our customers competitive price and excellent service.
