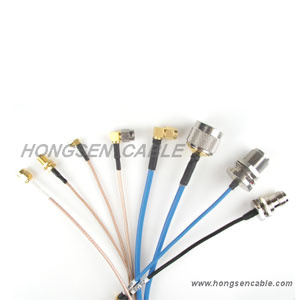

Teflon Double shield Coaxial Cable RG400

Name: Teflon Double shield Coaxial Cable RG400
Brand: all-electronics-online.com
SKU: 639747275
Availability: InStock
Rating: 4.8 (82 reviews)

Price:	US $ 1.659-1.933/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG400
Outer Conductor:	Double shield-Silver plated copper Braid
Insulation:	PTFE
Application:	RF Cable
Certification:	CPR
Conductor Material:	silver plated copper
Cover Material:	FEP
Type:	coax
Model:	RG400

Product Description

Coaxial Cable RG400

SPECIFICATION:
Inner conductor: 19/0.195 stranded silver plated copper
Insulation: 2.95mm PTFE
Outer conductor: Double shield, Silver plated copper Braid
Jacket: 4.95mm FEP

Electrical properties:
Capacitance (pF/m): 96.5
Impedance (Ω ): 50.0
Velocity of Propagation (%): 70.0
Max Operating Frequency (MHz): 8000.0
Max Operating Voltage (RMS): 1900.0
Operating Temp Range (º C): -55 to 200

Electrical Characteristics

Capacitance (pF/m)		94.0
Impedance (Ω)		50 ± 2
Velocity of Propagation (%)		70.0
Conductor DCR (Ohm/km)		29.9
Outer Shield DCR (Ohm/km)		7.5
Max Operating Frequency (MHz)		12400.0
Max Operating Voltage (RMS)		1900.0
Corona Extinction voltage (VRMS)		1900.0
Voltage Withstand (VRMS)		3000.0
Spark Test (VRMS)		2000.0
Operating Temp Range (ºC)		-55 to 200


Attenuation ( @ 20 ºC)

Frequency (MHz)	Attenuation (dB/100ft)	Attenuation (dB/100m)
50	3.0	9.8
100	4.6	15.1
200	6.8	22.3
400	9.5	31.2
1000	16.2	53.1
1500	18.8	61.7
2000	23.2	76.1
2500	24.8	81.4
3000	30.2	99.1

Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.
