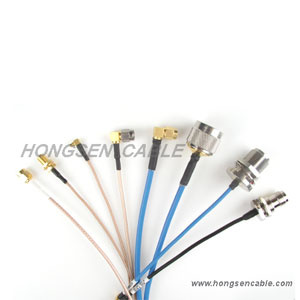

MIL Spec RF Coaxial Cable - RG179

Name: MIL Spec RF Coaxial Cable - RG179
Brand: all-electronics-online.com
SKU: 638881635
Availability: InStock
Rating: 4.4 (95 reviews)

Price:	US $ 0.43-0.54/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG179
Markets:	North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
Insulation:	PTFE
Jacket:	FEP
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Silver Plated copper
Cover Material:	FEP

Product Description

RG179 Coaxial Cable with Solid PTFE Insulated, Silver Plated Copper Braid, FEP Jacket, 2.54mm

Physical properties:
Inner conductor: 7/0.10mm stranded silver plated copper-clad steel
Insulation: 1.60mm PTFE
Outer conductor: Silver plated copper braid, 93% coverage
Jacket: 2.54mm FEP

Electrical properties:

Capacitance (pF/m) : 64.0
Impedance (Ω ): 75.0
Velocity of Propagation (%): 69.5
Conductor DCR (Ohm/km): 800.5
Outer Shield DCR (Ohm/km): 27.9
Max Operating Frequency (MHz): 3000.0
Max Operating Voltage (RMS): 1200.0
Operating Temp Range (º C): -55 to 200

Attenuation ( @ 20 ºC)

Frequency (MHz)	Max Attenuation (dB/100ft)	Max Attenuation (dB/100m)
10	5.3	17.4
50	7.0	23.0
100	8.2	26.9
200	12.5	41.0
400	16.0	52.5
700	19.7	64.6
900	25.5	83.7
1000	26.3	86.3
3000		0.0

RG179 coaxial cable may be used in mobile phones, home applications, video/audio security and medical equipment. Silver Plated Copper covered steel as inner conductor, PTFE dielectric, Silver Plated copper as braid wire, and FEP as jacket.

Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.

Our Mission

We are dedicated to providing our customers competitive price and excellent service.
