50 Ohm Flexible PTFE Insulation Coaxial Cable RG316

Name: 50 Ohm Flexible PTFE Insulation Coaxial Cable RG316
Brand: all-electronics-online.com
SKU: 639747255
Availability: InStock
Rating: 4.8 (24 reviews)

Price:	US $ 0.492-0.561/Meter
Trade Terms:	FOB
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG316
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket Material:	FEP
Insulation Material:	PTFE
Application:	Coaxial Cable
Certification:	UL
Conductor Material:	Silver Plated Copper Clad Steel
Cover Material:	FEP
Type:	Coax cable
Model:	RG

Product Description

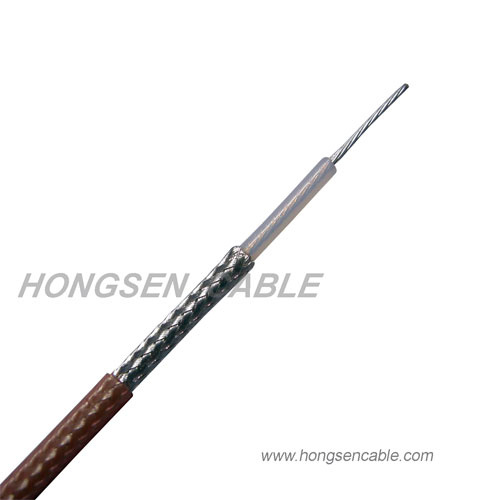

Coaxial Cable RG316

Construction:
Inner conductor: 7/0.17 stranded silver plated copper Clad Steel
Insulation: 1.52mm PTFE
Outer conductor: Silver plated copper
Jacket: 2.49mm FEP

Electrical properties:
Capacitance (pF/m): 96.5
Impedance (Ω ): 50.0
Velocity of Propagation (%): 70.0
Max Operating Frequency (MHz): 11000.0
Max Operating Voltage (RMS): 2500.0
Operating Temp Range (ºC): -55 to 200

Attenuation ( @ 20 ºC)
Frequency (MHz)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
10	2.7	8.9
50	5.6	18.4
100	8.3	27.2
200	11.0	36.1
400	16.7	54.8
700	22.8	74.8
900	26.3	86.3
1000	28.6	93.8
3000	54.8	179.8

Application:

Radio Frequency, Telecommunication

RG316 Coaxial cable are used in wireless communication, broadcast and military equipments for transmission of radio frequency signals. Silver Plated Copper covered steel as inner conductor, PTFE dielectric, Silver Plated copper as braid wire, and FEP as jacket.

Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.

Our Mission

We are dedicated to providing our customers competitive price and excellent service.
