50 Ohm Teflon Coaxial Cable RG316

Name: 50 Ohm Teflon Coaxial Cable RG316
Brand: all-electronics-online.com
SKU: 639067575
Availability: InStock
Rating: 4.3 (92 reviews)

Price:	US $ 0.52-0.71/Meter
Trade Terms:	By Sea
Min Order:	3000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG316
Insulation:	PTFE
Outer Conductor:	Silver Plated Copper
Impedance:	50 Ohm
Operating Temp Range:	-55 to 200 º C
Application:	RF Cable
Certification:	CPR
Conductor Material:	silver-plated copper-clad steel
Cover Material:	FEP
Type:	COAXIAL
Model:	RG
Brand:	OEM

Product Description

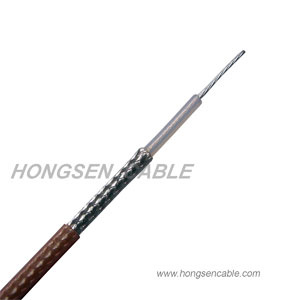

RG316 RF Coaxial Cable with Solid PTFE Insulated, Silver Plated Copper Braid, FEP Jacket

Physical properties:
Inner conductor: 7/0.17mm silver-plated copper-clad steel,
Insulation: 1.52mm solid PTFE,
Outer conductor: 1.98mm silver-plated copper braid, 96% coverage,
Jacket: 2.49mm FEP

Electrical properties:
Capacitance (pF/m): 95.0
Impedance (Ω ): 50.0
Velocity of Propagation (%): 69.5
Conductor DCR (Ohm/km): 277.2
Outer Shield DCR (Ohm/km): 20.0
Max Operating Frequency (MHz): 3000.0
Max Operating Voltage (RMS): 1200.0
Operating Temp Range (º C): -55 to 200

Attenuation ( @ 20 ºC)

Frequency (MHz)	Max Attenuation (dB/100ft)	Max Attenuation (dB/100m)
10	2.7	8.9
50	5.6	18.4
100	8.3	27.2
200	11.0	36.1
400	16.7	54.8
700	22.8	74.8
900	26.3	86.3
1000	28.6	93.8
3000	54.8	179.8

Application:
RG316 Coaxial cable are used in wireless communication, broadcast and military equipments for transmission of radio frequency signals.

Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.
