Coaxial Cable BT3002 for the digital telephone exchange system

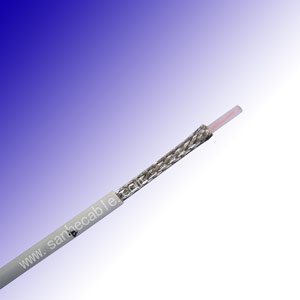

Name: Coaxial Cable BT3002 for the digital telephone exchange system
Brand: all-electronics-online.com
SKU: 609862855
Availability: InStock
Rating: 4.3 (63 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	15000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BT 3002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shield:	double shield, high coverage
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	UL

Product Description

Conductor: 0.31mm Bare Copper
Dielectric: 1.95mm Solid polyethylene
Shield: 1 layer- Tinned Copper 91% coverage
2 layer - Tinned Copper 90% coverage
Jacket: 3.55 mm black PVC

Electrical Characteristics
Capacitance (pF/m)		66.0
Impedance (Ω)		75+/-4
Velocity of Propagation (%)		67.0
Dielectric Strength (kV rms/min)		3.5
Inner Conductor DCR (Ohm/km)		236.0

Attenuation ( @ 20 ºC)
Frequency (MHz)	Max Attenuation (dB/100ft)	Max Attenuation (dB/100m)
1	0.7	2.3
4	1.4	4.5
5	1.5	4.8
17	2.8	9.2
70	5.7	18.7
100	6.9	22.5
200	9.8	32.0

APPLICATION
They are mainly used for indoor installation in the transmission equipments for the digital telephone exchange system. Due to their miniature size they can also be used for other applications where high performance is essential.

Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.

Our Mission

We are dedicated to providing our customers competitive price and excellent service.
