RF lower attenuation Coaxial Cable 5D-FB

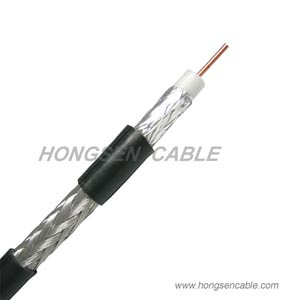

Name: RF lower attenuation Coaxial Cable 5D-FB
Brand: all-electronics-online.com
SKU: 200022864
Availability: InStock
Rating: 4.3 (59 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	15000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	5D-FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS

Product Description

5D-FB Low Loss 50 Ohm Coaxial Cable

SPECIFICATION:
Conductor: 1.8 Bare copper/ CCA
Dielectric: 5.0 mm Foam polyethylene
Fist Shield: Bonded AL/ P Foil
Second Shield: Aluminum wire braid
Jacket: 7.5 mm black PVC

Electrical Characteristics

Impedance (Ω)		50±3
Capacitance (pF/m)		82 ± 2
Velocity of Propagation (%)		82.0
Return Loss (dB)		≥ 20
Screening Effectiveness (dB)		≥ 90
Inner Conductor DCR (Ω/km)		6.9
Outer Shield DCR (Ω/km)		13.5
Dielectric Strength (KV)		1.6
Voltage Withstand (Volts DC)		2000.0
Spark Test (VRMS)		5000.0
Operating Temp Range (ºC)		-25 to +70


Attenuation ( @ 20 ºC )

Frequency (MHz)	Max Attenuation (dB/100ft)	Max Attenuation (dB/100m)
100	1.9	6.3
150	2.4	7.8
280	3.3	10.9
350	3.7	12.2
400	4.0	13.0
800	5.8	18.9
900	6.1	20.0
1200	7.3	24.0
1500	8.3	27.2
1800	9.1	29.7
1900	9.5	31.3
2000	9.9	32.5
2200	10.1	33.3
2500	10.9	35.8
3000	12.5	40.9

APPLICATION:
5D-FB used as a connection cable in the high signal sequences of the wireless and data communication systems where lower attenuation required.

Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.

Our Mission

We are dedicated to providing our customers competitive price and excellent service.
