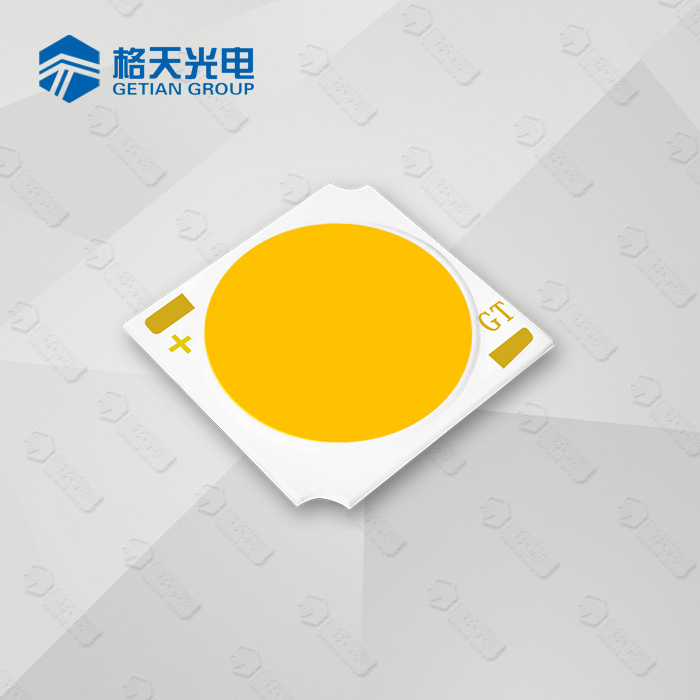

Shenzhen Getian Opto-Electronics Co., Ltd. >> COB 1919 LED 3 Step 15W LED Diode

COB 1919 LED 3 Step 15W LED Diode

COB 1919 LED 3 Step 15W LED Diode
Price: US $ 2.05-2.25/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: GT-COB1919
Current: 450mA
Voltage: 34-41V
Luminous Efficacy: 120-130lm/W
CCT: 2700K
CRI: 90
Warranty: 3 Years
Max Current: 900mA
Usage: LED Track Light
Power: 15W
LED Chips: Bridgelux
Beam Angle: 120??
Base Material: Aluminum
Life: 30000h
Certification: Lm-80, En62471
Emitting Color: White
Welding Process: Solderless Holder
IP Rating: IP20
LED Packaging Type: Surface Mount

Product Description

COB 1919 LED 3 Step 15W LED Diode

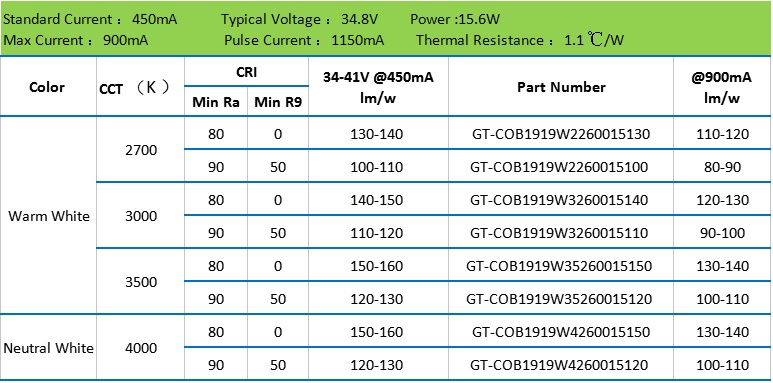

Specification:





Features

*high luminous efficacy 170lm/w
* mirror-surface aluminum base
*high intensity circular chip array
*RoHS compliant
*> 30000 hrs
*super high CRI
*Mac Adam 3 or 5 steps available
*smooth light quality.


Junction Temperature125ºCBeam Angel120°
Dimension19.0*19.0mmDiameter of Luminous Area17mm

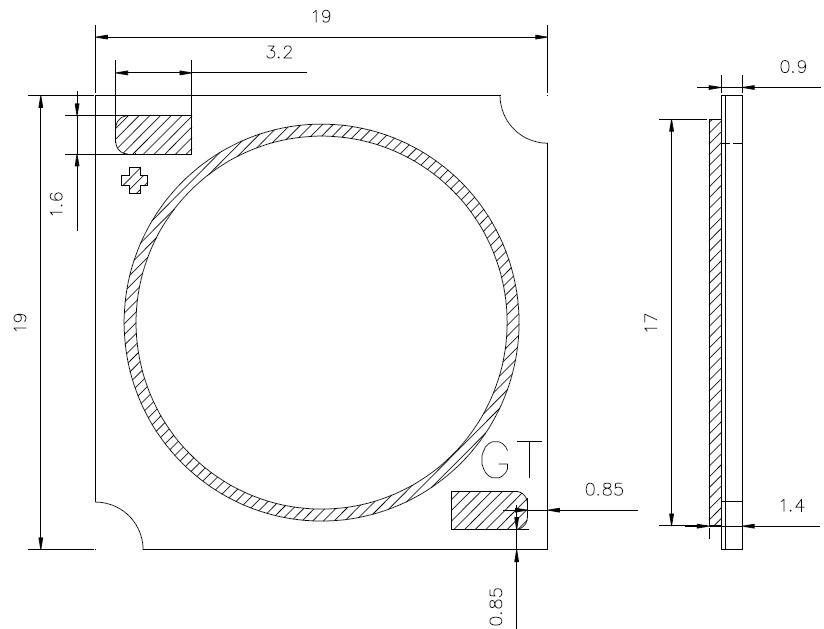

Product Dimension:


Company Information:

Shenzhen Getian, established in 2005, is a professional and innovative integrated led manufacturer specializing in high power led & COB packaging, LED drivers, industrial lighting.



Product Range:
3-400W MSA COB Series
10-400W Copper COB Series
3535 RGB & RGBW Series
Color LEDs 280-850nm Series
Flip Chip LEDs 60-300W
SMD LED Series
LED Drivers 8-150W
Industrial Lights (High Bay/Flood Light/Street Light)


Our Service:
PCB design & Reflow soldering service
COB/LED/Drivers customization
Mold development (Plastic injection & Die casting)
Representatives in the UK, Korea and Czech.
* ISO9001-2008, SGS, TUV, BV, CNAS accredited laboratory & Optical Lab.




Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.

Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.

With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.

Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.

Warmly welcome all fields of friends to visit our company and negotiate trade.
