| Prod Model: |
LYD-RFTC-01 |
| Working Temperature: |
-20 - 60 |
| Net Weight: |
227g |
| Gross Weight: |
379g |
| RF Frequency: |
433.92MHz |
| Application: |
Toys |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Battery Type: |
AAA Battery |
| Voltage: |
DC5V, 12V~24voptional |
| Material: |
Iron |
Product Description
Basic Info| place of origin: | Shenzhen,China | brand name: | louita | model no.: | LYD-RFTC-01 |
| RF frequency: | 433.92Mhz | Output Current: | <6A(each circuit) | Carton size : | 690*420*260mm/50pcs |
| Controller's dimension: | 83*79*33mm | Static power consumption : | <1W | | |

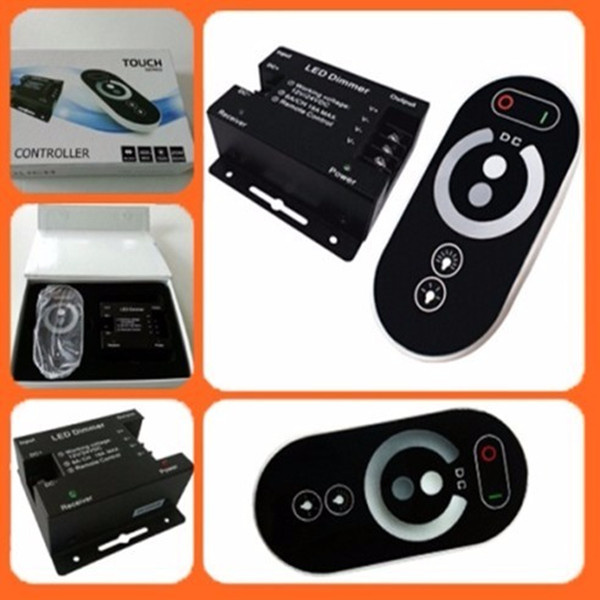

Product DescriptionThis Rf Touch Remote singleColor dimmer is one of a newly design LED Touch remote controller of Our factory.Using the latest capacitance touch technology and unique appearance design,Looks Simple, intuitive ,it realize of the effect of remote dimming control.This controller provide three channels single color output in parallel ,means these three channels can be adjusted at the same time. This controller is integrated with the advantage of easy connection, stable Rf transmission just with little Interference, and long lifespan.This controller is with short circuit protection function,when meet short circuit, its green indicating light will be twinkling in a fixed frequency to indicate the user.what's more,Its with automatically restore function after short circuit protection,this humanizeddesign can make the user experience another different sense
Technical parameters:
Controller: Working temperature:-20ºC~+60ºC
Supply Voltage:DC5V, 12V, 24V available(Please specify the voltage when place order)
Output:3 single color channels N-MOSDrain open output in parallel
Connection mode:common anode

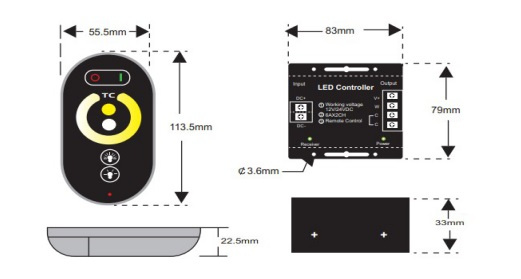

controller dimension:L83×W79×H33 mm
Package size:L205×W134×H47mm
Net Weight:227g
Gross Weight:379g
Static power consumption:<1W
Output current:<6A(each channel)
Output power:5V:<90W, 12V:<216W, 24V:<432W
Romoter Working temperature:-30ºC~+60ºC
Power supply mode:3pcs NO.7 Battery
Supply voltage:3V
Static power consumption:<0.09mW
Remote-controlled distance:>20M
main characteristic:1 Novel,fashionable,unique,noble appearance ,High sensitivity with good feeling.
2 The touching ring is sensitive, the color brightness is Very intuitive appear in the touch ring,user can choose the color brightness they prefereasily.Beside, this remote can be touch single point or to touch continually to realize choosing the color temperature.
3 Low power consumption, long lifespan, can be touch infinite times , overcome the shortcomings of traditional key short lifespan.
4 With auto Resting function,it will be turn into Resting state after 20 seconds with touching the remote control,this function canRealize saving electricity and prolong the battery lifespan.
5 With short circuit automatic detection and protection function, it will automatically shut down output when short-circuit occurred,and lights flashing.Automatic recovery after 10 s output, or the user can re-install the electricity to recover the output .
6 Stable remote,long remote distance.
