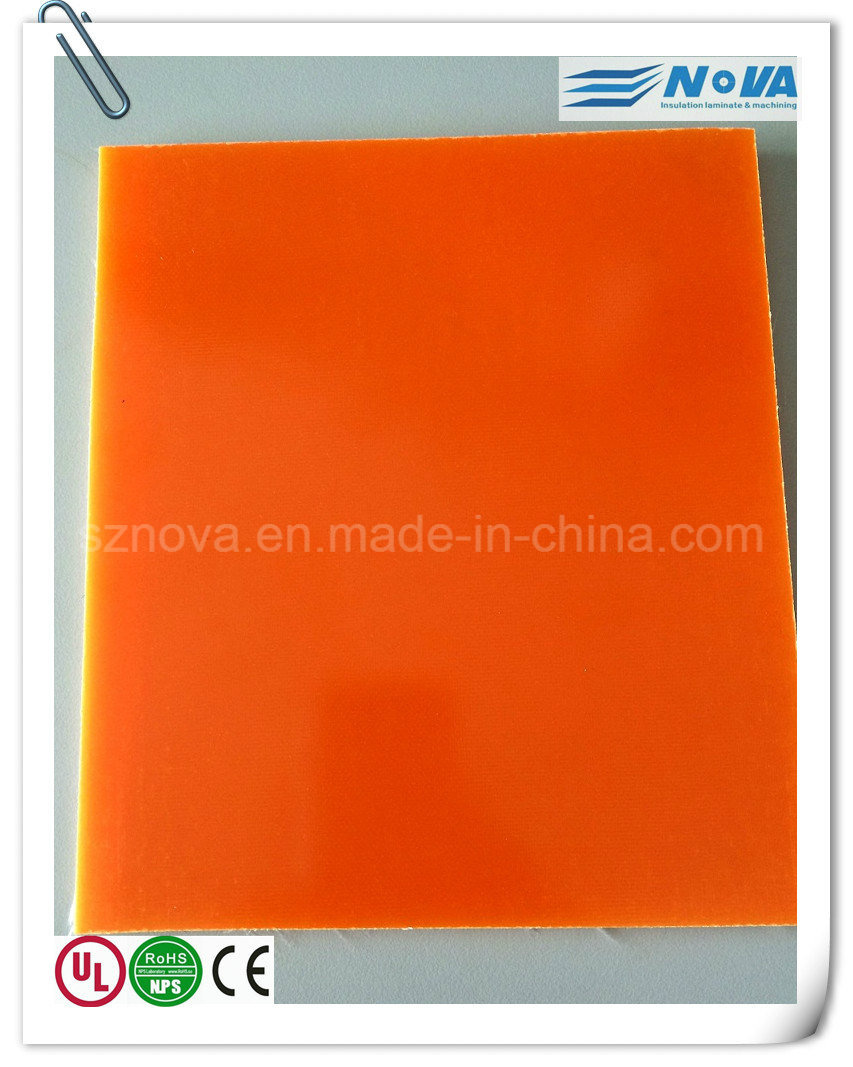

Color G10 Laminated Sheet

Name: Color G10 Laminated Sheet
Brand: all-electronics-online.com
SKU: 837474685
Availability: InStock
Rating: 4.9 (93 reviews)

Price:	US $ 10Kilogram
Min Order:	250Kilogram
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Sheet Size:	1020 X 1220mm
Thickness Range:	0.5mm~50mm
Minimum Order Quantity:	250 Kgs in a Lot

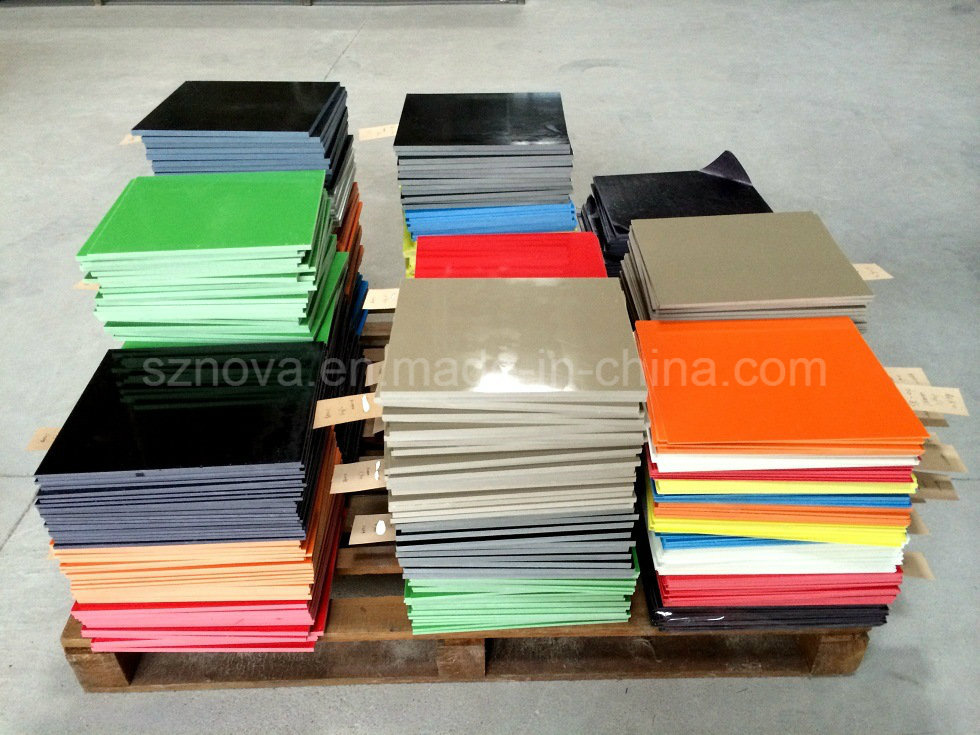

Packaging Details:	500-1000kgs Per Pallet or as Required
Lead Time:	7-15 Days After Confirmed
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Thermal Rating:	H 180
Maximum Voltage:	20KV~100KV
Color:	Colored G10
Brand:	Nova

Product Description

Advantages:
Our G10 is first quality with good structure, absolutely no foreign matter or defects of any kind, very closed thickness tolerance, flat and straight panel, smooth and clean surfaces.

* very bright color, especially suitable for fins application.
* absolutely no foreign matter or defects of any kind.
* very closed thickness tolerance, flat and straight panel suitable for CNC machining.
* high flexural & impact strength.
* good structure with clear layer.
* customize color available.

Applications:
Our Colored G10 has high flexural & impact strength, good machining quality, and bright color,
Especially be suitable for Surfboard fins, Knife handle, and other sport appliances.

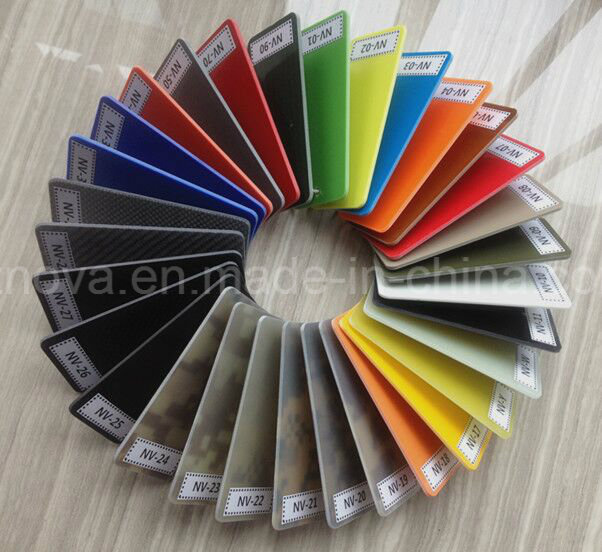

Colored G10 Epoxy Laminate can be made into Single colors or Multi-layered colors (G10 Mixed Color).
Usual colors available in: Black, White, Red, Yellow, Blue, Orange, Olive Green, Gray, Brown, and many others.

We also customize colors according to sample or color code.

Specifications:
1) Grade: G10
2) Usual Colors: Black, White, Red, Yellow, Blue, Orange, Olive Green, Gray, Brown, etc.
3) Thickness Range: 0.5mm to 50mm
4) Sheet Size: 915*1220mm; 1020*1220mm
5) Min. Order Quantity: 250 kgs in a lot

Technical Performance

NO.	PROPERTIES	UNIT	STANDARD VALUE	TESTING VALUE
1	Flexural strength perpendicular to lamination- normal room temperature	MPa	≥ 350	467
2	Notch impact strength parallel to lamination (charpy)	kJ/m²	≥ 37	65
3	Dielectric strength perpendicular to lamination (in oil 90±2ºC) 1.0mm in thickness	kV/mm	≥ 14.2	22
4	Breakdown voltage parallel to lamination (in oil 90±2ºC)	kV	≥ 45	65
5	1MHz dielectric coefficient	-	≤ 5.5	4.13
6	1MHz loss factor	-	≤ 0.04	0.021
7	Water absorption rate D-24/23, 1.6mm in thickness	%	≤ 0.25	0.08
8	Flammability	-	FV0	FV0

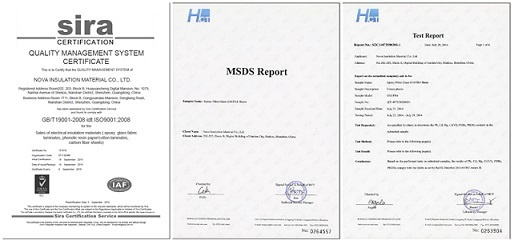

Certificate Show

About Us:

Nova Insulation Maetrial Co.,Ltd. is specialized in manufacture all kinds of Epoxy glass fabric laminated products with over 10 years experience, including G10/FR4, G11/FR5 and so on.

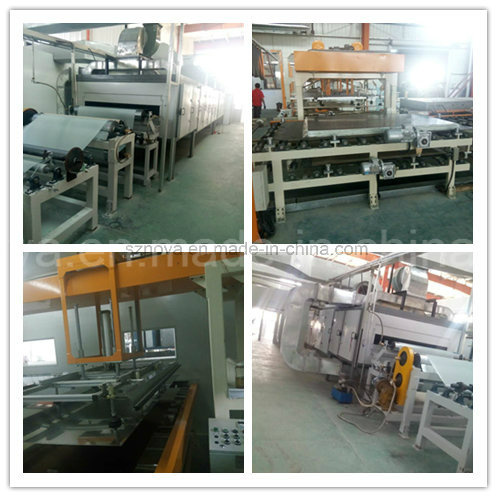

We can serve you not only customize the G10/FR4 Epoxy glass fabric laminated sheet products for you, but also very experienced design concept, strong program management system, well trained employees for Epoxy glass fabric making process, sophisticated equipment, and strict quality control schedule which can make us to be the successful manufacturer with high quality products and on time delivery for each of your projects.

FAQ
1.Q:Are you factory?
A:We are manufacturer with export license.
2.Q:How about the delivery time?
  A:Usually 7-15days,also depends on quantity.
3.Q:Can I get free sample for check?
  A:Normally small size can be provided for free and customers just need to take charge for express fee.
4.Q:Can you give me a discount price?
  A:It depends on quantity,the larger quantity is,the more discount you can get.

Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
