Ultra Thickness Mechanical Part (Epgc 201)
| Price: |
US $ 4.6-5kilogram |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500kilogram |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
G10/FR4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Thickness: |
200mm (7.874") |
| Sheet Size: |
1020*1220mm; 1220*2040mm |
| Minimum Order Quantity: |
500 Kgs in a Lot |
| Packaging Details: |
500-1000kgs Per Pallet or as Required |
| Lead Time: |
7-15 Days After Confirmed |
| Application: |
Switch Baseplate |
| Type: |
Insulation Sheet |
| Chemistry: |
Hybrid Insulation |
| Material: |
Fiberglass |
| Thermal Rating: |
B 130 |
| Maximum Voltage: |
20KV~100KV |
| Color: |
Natural Green |
| Brand: |
Nova |
Product Description

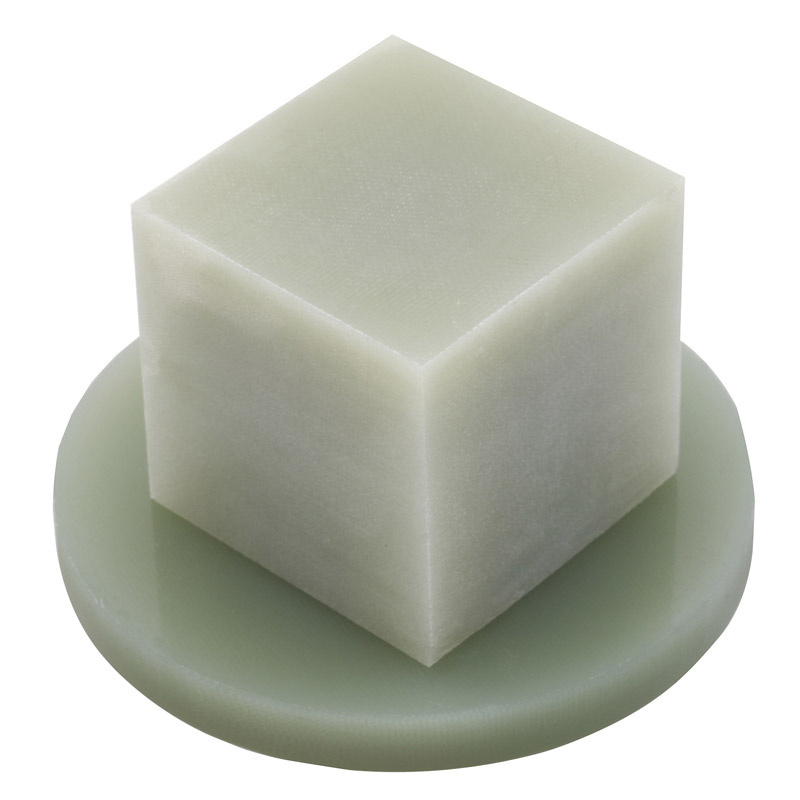

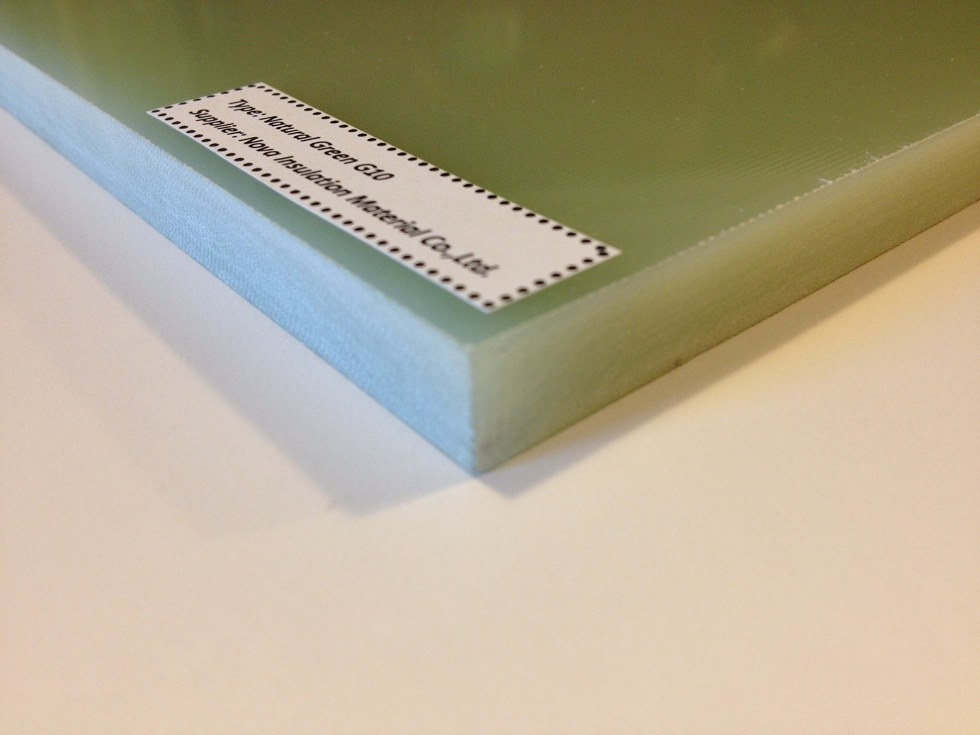

Description:Nova has full experience in ultra thicknesses G10 up to 200mm( 7.874 inches).
* High flexural, impact and bond strength
* No delamination
* No layering on edges
* Especially suitable for machining to G10 rod or mechanical part
* Sheet sizes available in 36"x48", (37"x49"), 40"x48"
These grades are composed ofelectrical alkali-free glass woven fabric base impregnated with an epoxy resin binder under pressure and heat. They have extremely high mechanical & electrical strength. Good dielectric properties under dry and humid conditions. Excellent rigidity and dimensional stability.
G10/FR4 Temperature Index: 135 Degree Celsius
Specifications:
1) Grade: G10/FR4
2) Color: Natural Green; Yellow; Black
3) Thickness range: 0.1mm~100mm
*(101~200mm available in 915*1220mm & 1020*1220mm)
4) Sheet size: 915*1220mm; 1020*1220mm; 1020*2040mm; 1220*2440mm
5)Min. Order Quantity: 500 kgs in a lot
Widely used as insulating structural parts in electrical & mechanical equipments, such as generators, motors, transformers, terminal boards, PC boards, washers, and many others.
We have machine capability to process G10 sheet to G10 Rods with tight tolerance.
Technical Data sheet - G10/Fr4| NO. | PROPERTIES | UNIT | METHODE | STANDARD VALUE | TESTING
VALUE |
| 1 | Flexural strength perpendicular to lamination- normal room temperature | MPa | ISO 178 | ≥ 350 | 492 |
| 2 | Notch impact strength parallel to lamination (Notched charpy) | kJ/m2 | ISO 179 | ≥ 37 | 63 |
| 3 | Dielectric strength perpendicular to lamination (in oil 90±2ºC) 1.0mm in thickness | kV/mm | IEC 60243 | ≥ 14.2 | 22 |
| 4 | Breakdown voltage parallel to laminations
(in oil 90±2ºC) | kV | IEC 60243 | ≥ 45 | 75 |
| 5 | 1MHz dielectric coefficient | - | IEC 60250 | ≤ 5.5 | 4.85 |
| 6 | 1MHz loss factor | - | IEC 60250 | ≤ 0.04 | 0.02 |
| 7 | Water absorption rate, 1.6mm in thickness | % | ISO 62 | ≤ 0.25 | 0.06 |
| 8 | Insulation resistance impregnated in water, D-24/23 | Ω | IEC 60093 | ≥ 5.0×1010 | 2.5×1011 |
| 9 | Flammability | class | IEC 60695 | FV0 | FV0 |
| 10 | Bonding strength | N | | ≥ 6500 | 8174 |

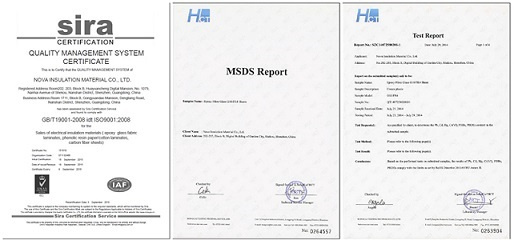

Certificate Show
About Us:
Nova Insulation Maetrial Co.,Ltd. is specialized in manufacture all kinds of Epoxy glass fabric laminated products with over 10 years experience, including G10/FR4, G11/FR5 and so on.
We can serve you not only customize the G10/FR4 Epoxy glass fabric laminated rod products for you, but also very experienced design concept, strong program management system, well trained employees for G10/FR4 Epoxy glass fabric laminated making process, sophisticated equipment, and strict quality control schedule which can make us to be the successful manufacturer with high quality products and on time delivery for each of your projects.
We sincerely hope to be your long-term partner to develop new markets together,and create brilliant!
FAQ
1.Q:Are you factory?
A:We are manufacturer with export license.
2.Q:How about the delivery time?
A:Usually 7-15days,also depends on quantity.
3.Q:Can I get free sample for check?
A:Normally small size can be provided for free and customers just need to take charge for express fee.
4.Q:Can you give me a discount price?
A:It depends on quantity,the larger quantity is,the more discount you can get.
Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.
We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.
Nova supplies the following products:
1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)
2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)
3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)
4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.
Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.
Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
