Colors of Cord Insulated End Terminal (E0506)

Name: Colors of Cord Insulated End Terminal (E0506)
Brand: all-electronics-online.com
SKU: 615259164
Availability: InStock
Rating: 4.9 (49 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	E0506
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	E0506
Application:	Conduct Electricity
Type:	Socket Terminals
Material:	Brass

Product Description

Why choose us?

1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

Max. Current: 22-16A. W. G: 19A 16-14A. W. G: 27A
Metal: Brass
Insulated Material: Nylon

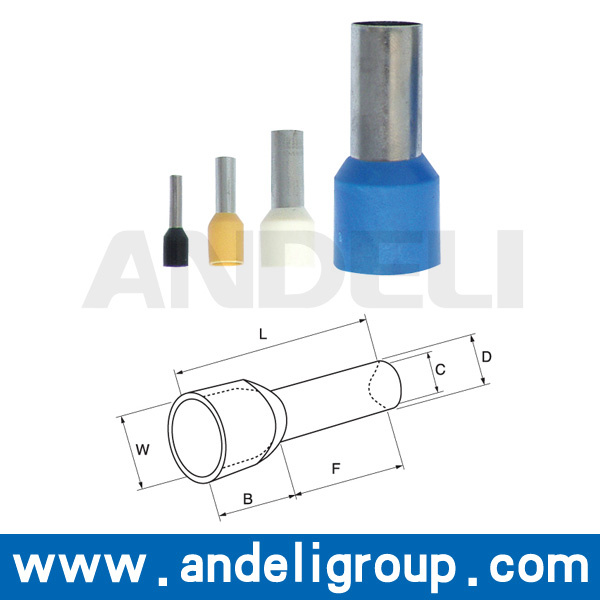

ITEM.NO.	Dimension(mm)						A.W.G	mm2	Insulation Color
	F	L	W	B	D	C
E0506	6.0	12.0	2.6	6.0	1.3	1.0	#22	0.5	Orange White
E0508	8.0	14.0
E0510	10.0	16.0
E7506	6.0	12.4	2.8	6.4	1.5	1.2	#20	0.75	White Blue
E7508	8.0	14.6
E7510	10.0	16.4
E7512	12.0	18.4
E1008	8.0	14.6	3.0	6.4	1.7	1.4	#18	1.0	Yellow Red
E1010	10.0	16.4
E1012	12.0	18.4
E1508	8.0	14.6	3.5	6.4	2.0	1.7	#16	1.5	Red Black
E1510	10.0	16.4
E1518	18.0	24.4
E2508	8.0	15.2	4.0	7.5	2.6	2.3	#14	2.5	Blue Grey
E2512	12.0	19.0
E2518	18.0	25.0
E4009	9.0	16.5	4.4	7.5	3.2	2.8	#12	4.0	Grey Orange
E4012	12.0	19.5
E4018	18.0	25.5
E6012	12.0	20.0	6.3	8.0	3.9	3.5	#10	6.3	Black Green
E6018	18.0	26.0
E10-12	12.0	24.5	7.6	9.5	4.9	4.5	#7	10.0	Milky White Brown Green
E10-18	18.0	27.5
E16-12	12.0	22.0	8.8	10.2	6.2	5.8	#5	16.0	Green Milky White
E16-18	18.0	28.2
E25-16	18.0	29.0	11.2	13.0	7.9	7.5	#4	25.0	Brown Green Black
E25-22	22.0	35.0
E35-16	16.0	30.0	12.7	14.0	8.7	8.3	#2	35.0	Greyish Brown
E35-25	25.0	39.0
E50-20	20.0	36.0	15.3	16.0	10.9	10.3	#1	50.0	Olive
E50-25	25.0	41.0
