Compact High-Performance Fan Heater with CE (CS 032 Series)

Compact High-Performance Fan Heater with CE (CS 032 Series)
Price: US $ 10-15/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: CS 032 CSF032 Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Weight: Approx.0.5kg
Fitting Position: Airflow Direction up
Dimensions: 150.5*88*66mm
Antistop: Fan Heater
Usage: Air Purifier
Certification: CE
Control Type: Mechanical
Display Type: LED
Type: Fan Heater
Material: Plastic
Brand: Winston

Product Description

All types of heaters and thermostat

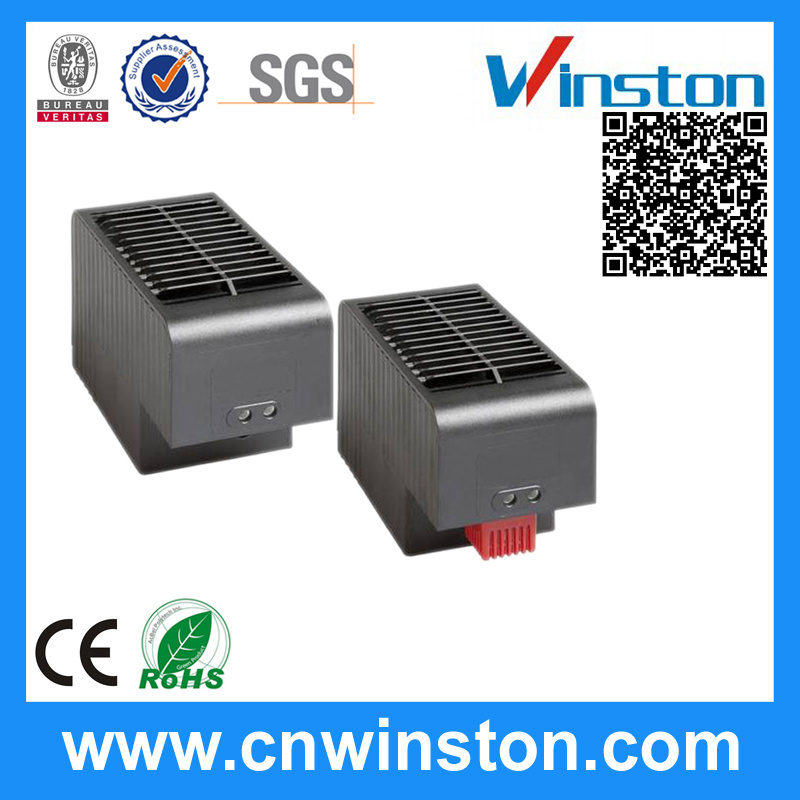

Compact high-performance Fan Heater Series CS 032
Compact and slim design
High heating performance
Double insulated
Quick connection

The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic enclosure provides double insulation and acts as protection against contact. Two screw connectors at the front allow comfortable wiring of an external thermostat. The fan heater is also available with pre-set thermostat (fan heater CSF 032). The CS 032 was designed as unit for wall fixing. A fan heater for fixing on the bottom of the enclosure is available on request.
Technical Data
Heating elementPTC resistor - temperature limiting
Surface temperaturemax. 80°C (176°F), except upper protective grille

at 20°C (68°F) ambient temperature
Air outlet temperaturemax. 110°C (212°F), 50mm above the grille
Temperature safety cut-outto protect against overheating in case of fan failure,

automatic reset
Axial fan, ball bearingair flow 63m³/h, free flow

service life 70,000h at 25°C (77°F)
Connectionmale power insert connector according to IEC320 C18
Fuse10A time lag (T) integrated in connector - exchangeable
Casingplastic according to UL94 V-0, black
Mountingclip for 35mm DIN rail, EN 60715 or

screw fixing (M5), tightening torque 2Nm max.
Fitting positionairflow direction up
Dimensions150.5 x 88 x 66mm
Weightapprox. 0.5kg
Operation/Storage temperature-40 to +60°C (-40 to +140°F) / -40 to +70°C (-40 to +158°F)
Operation/Storage humiditymax. 90% RH (non-condensing)
Protection type/Protection classIP20 / II (double insulated)



Art. No. clip fixingArt. No. screw fixingOperating voltageHeating capacity*Inrush current max.
03209.0-0003209.0-01220-240VAC, 50/60Hz1,000W12A
03209.9-0003209.9-01100-120VAC, 50/60Hz1,000W18A

at 25°C (77°F) ambient temperature
