Product Description

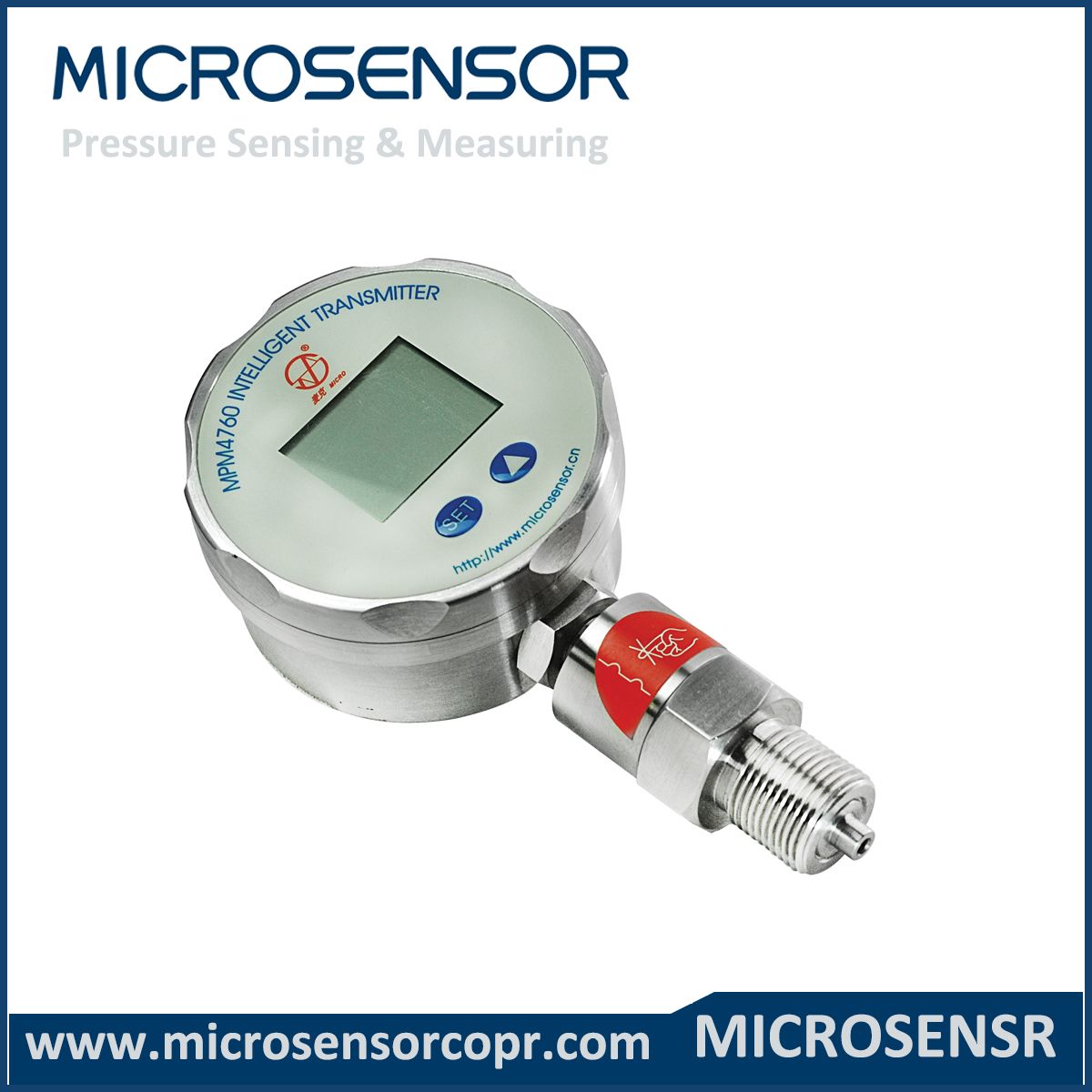

Compact MPM4760 Intelligent Display Pressure Transmitter
Features:
1. Compact size;
2. 76mm diameter;
3. Digital temperature compensation;
4. LCD indicator;
5. RS4835 communicator;
6. Battery available;
Applications:
1. Chemical industry;
2. City water supply and drainage;
3. Science;
4. Power station
Options:
1. 4~20 MADC output;
2. RS485 communicator;
3. Sealed gauge, gauge, absolute;
4. Flush diaphragm type
Description:
MPM4760 Intelligent Display Pressure Transmitter has compact size, its diameter is only 76mm. The product is generally used in power station, science, chemical industry, city water and drainage with its delicate design and reliable measurement to display.
Specifications:
| Basic range(MPa) | 0.1 | 0.2 | 0.35 | 0.7 | 1.0 | 2.0 | 3.5 | 7.0 | 10 | 20 | 35 | 60 | 100 |
| Overpressure (MPa) | 0.15 | 0.3 | 0.5 | 1.0 | 1.5 | 3.0 | 5.0 | 10 | 15 | 30 | 50 | 90 | 110 |
Note: the min.available shrinking pressure range is 1/5 of basic pressure range;
Vacuum pressure measure is available;
For the other pressure range between min.range and max.range, but not included in the above table, we enlarge the above basic pressure to produce (overpressure unavailable) |
Total accuracy | ±0.1%FS(min.) ±0.25%FS(typ.) ±0.5%FS(max.) |
| Basic error | ±0.075%FS(min.) ±0.15%FS(typ.) ±0.25%FS(max.) |
| Stability | ±0.25%FS/year | Total accuracy: including non-linearity,hysteresis, repeatability and thermal error;
Room temperature rated value(20±2)ºC;
including non-linearity, hysteresis and repeatability;
For special temperature requirement, please feel free to contact our company. |
| Compensation temp. | (-10~80)ºC |
| Operation/storage temp. | (-30~80)ºC |
| Power supply | (8~28)VDC |
| Output signal | (4~20)mADC |
| RS485 interface |
| Load | (4~20)mADC output,(U-8V)/0.02A(Ω) |
| RS485, can connect 99 transmitters |
| Electric connection | GDM307 4-pin plug |
| Insulation | 100MΩ/50V |
| Shock | 20g,(20~5000)Hz |
| Impact | 20g,11ms |
| Protection | IP65 |
| Media compatibility | Diaphragm: stainless steel 316L |
| Pressure interface: stainless steel |
| Housing: stainless steel 1Cr18Ni9Ti |
| O-ring: Viton |
| Weight | About 420g |
Order guide:
| MPM4760 | Intelligent Digital Displaying Pressure Transmitter |
| | | Range | Pressure range: -0.10~0.01100MPa |
| [0~X]kPa or MPa | X=actual pressure range |
| | | Code | Output signal |
| E | 4~20mADC |
| R4 | RS485 communication interface |
| | | Code | Construction material |
| Diaphragm | Pressure port | Housing |
| 22 | SS 316L | SS | SS |
| 24 | SS 316L | SS 316L | SS 316L |
| | | Code | Others |
| C1 | M20×1.5 male, face type seal |
| C3 | G1/2 male, (P type) |
| C4 | G1/4 female |
| C5 | M20×1.5 male, waterline seal |
| PC1 | Flush diaphragm, M20×1.5 male |
| PC3 | Flush diaphragm, G1/2 male |
| G | Gauge |
| S | Sealed gauge |
| A | Absolute |
| | | | Vb | Battery-powered |
| | | | | | |
| MPM4760 [0~100]kPa ER4 22 C1G the whole spec |
| | | | | | | | | | | | | |
