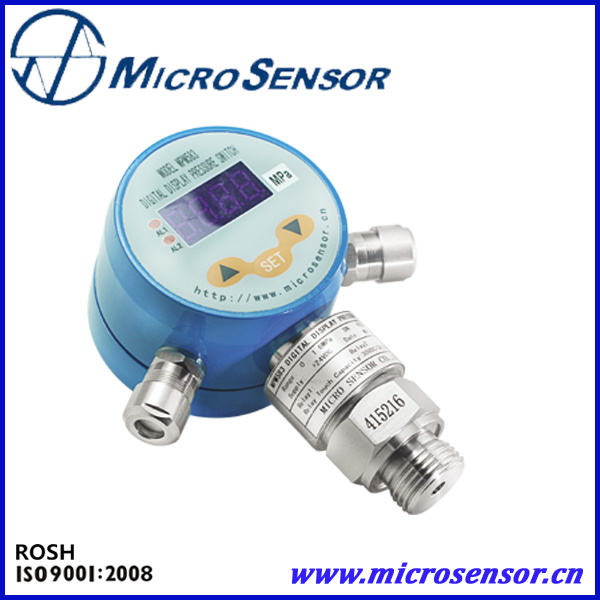

Compact IP65 Pressure Switch with Digtal Display MPM583

Name: Compact IP65 Pressure Switch with Digtal Display MPM583
Brand: all-electronics-online.com
SKU: 706624302
Availability: InStock
Rating: 4.3 (147 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM583
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	-0.1...0~0.01...100MPa
Principle:	Pressure Controller
Wires:	Two-Wires
Long Term Stability:	<=+-0.5%Fs/Y
Accuracy:	+-0.5%Fs(Typ.)
Protection:	IP65
Media Temperature:	-40~85c
Storage Temp:	-40~85c
Humidity:	0~80%
Pressure Range:	Sealed Gauge,Gauge,Absolute
Type:	Electronic
Application:	Industrial
Explosion-proof Type:	Non Explosion-proof
Contact:	Normally Open
Brand:	Micro Sensor

Product Description

                                      Compact IP65 Pressure Switch with Digtal Display MPM583

Features:
1. Compact;
2. Easy installation;
3. 2-wire;
4. Panel display

Applications:
1. Oil;
2. Chemical industry;
3. Tap water;
4. Power station;
5. Engineer

Specifications:

1. Accuracy: ±0.5%FS                                             Control accuracy:   ±0.5%FS
2. Stability: ≤0.5%/year                                           Power supply effect: ≤±0.1%FS
3. Control range: -0.10~0.01100MPa                         Power : 13~31VDC(suggested 24VDC)
4. Max.consumption: <1.2W                                    Relay lifetime: >100000 times
5. Relay capacitance: 220VAC/3A 30VDC/3A            Protection: IP65
6. Relay quantity:    2×(NO+NC)                              Pressure port: to see order guide
7. Display: 4 digit 0.36" nixietube, 2 LED lights           Wiring: terminals
8. Display range: -1999~9999
9. Environment temp.: -30ºC~70ºC                              Media temp.: -40ºC~85ºC
10. Storage temp.: -40ºC~85ºC                                Relative humility: 0~80%

Order guide:

MPM583

Digital Display Pressure Switch

Range

Control range: kPa,MPa,mH2O

[0~X]kPa or MPa or mH2O

Control range -0.10~0.01100MPa
X=actual max. pressure value

Code

Relay

Relay: 1,2 are upper limit control

Relay: 1 is upper limit control; 2 is lower limit control

Relay: 1 is lower limit control; 2 is upper limit control

Relay: 1,2 are lower limit control

Code

Construction material

Diaphragm

Iterface

Housing

SS 316L

Aluminum-alloy

Tantalum

Aluminum-alloy

Tantalum

Hastelloy C

Aluminum-alloy

Code

Others

M20×1.5 male, face type seal

G1/2 male

M20×1.5 male, waterline seal

H/L

Upper, lower limit pressure control value

Flush diaphragm: G1/2 male

Gauge

Absolute

Sealed gauge

MPM583 [0~2.0]MPa 10 22 C1(1.0/0.5MPa)G the whole spec

Micro Sensor Co., Ltd, the leading manufacturer of piezo-resistive pressure sensors and transmitters in China, was founded by Sino-US joint venture in 1993. We are providing pressure sensing & measuring solutions to customers all over the world.

With Digital Wide-Temperature Compensation, Non-linearity Correction and Data-Collection by Bus Operation, we supply users OEM pressure sensors, pressure transmitters, level transmitters, measuring and controlling instruments, which have high quality and reliable performance in the local on-site environment.

Based on more than 20 years production experiences, Micro Sensor now have manufacturing capacity of 1.2 million pieces pressure sensors and 400 thousand pieces transmitters in one year. And we are also capable to satisfy the customized specification and designs according to clients' Specified requirements.

Quality is the life of company. Micro Sensor executes I S O 9 0 0 1 International Management System strictly to make sure every procedure qualified in our production. Furthermore, the main products for pressure sensors and transmitters, are also certificated by C E, R o H S, C B, U L and A T E X respectively for different global markets.

Micro Sensor now does business with customers more than 70 countries. More and more global friends know Micro Sensor and make win-win cooperation with us. Wherever you are, whenever you are, find Micro Sensor for any pressure sensing & measuring question. We are looking forward to supporting you with our best services!
