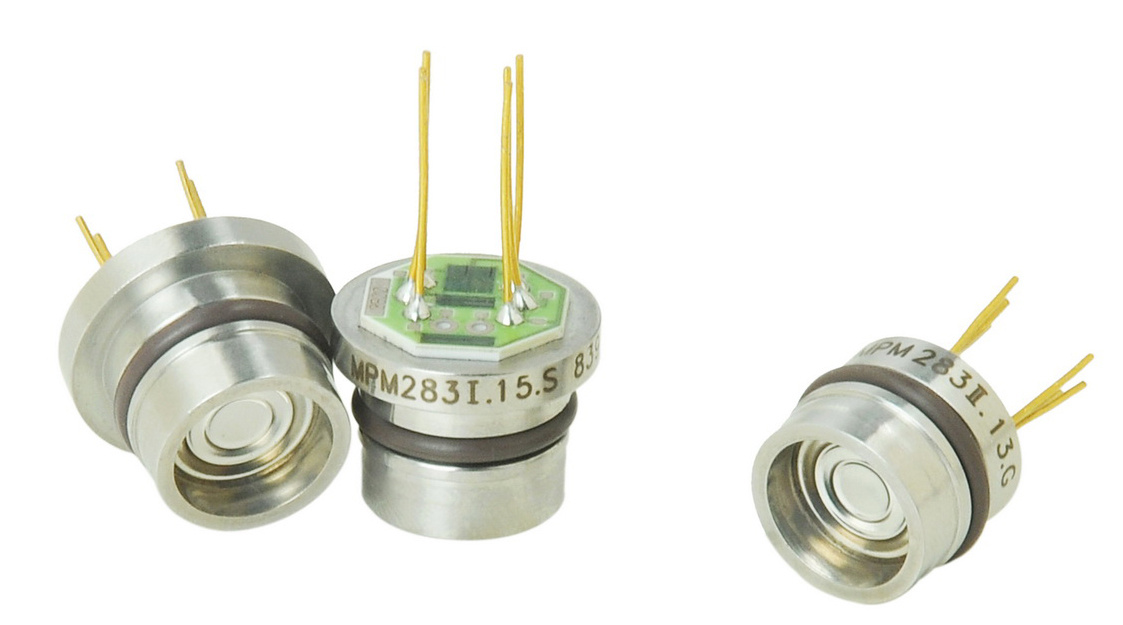

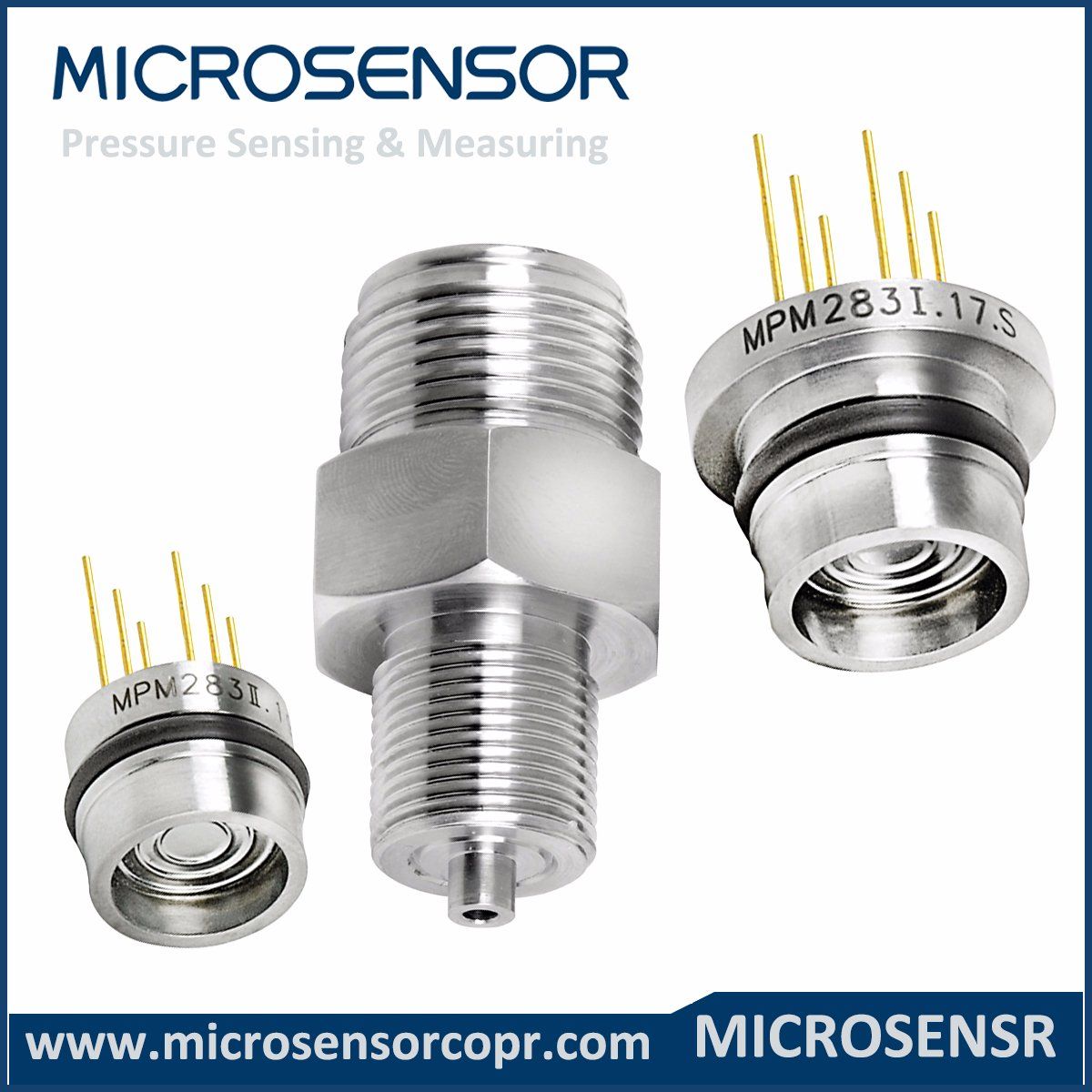

Diameter 12.6mm Compact Size MPM283 Piezo-resistive Pressure Sensor
Features
·Pressure range: 0~700kPa...100MPa
·Gauge, absolute and sealed gauge
·Constant current power supply
·Isolated construction, enable totest measure various media
·Φ12.6mm compact size OEM pressure sensor
·Stainless steel 316L
·Wider temperature compensation range -10°C~+80°C
Application
·Industrial process control
·Level measurement
·Gas, liquid pressure measurement
·Pressure inspection meter
·Pressure calibrator
·Liquid pressure system and switch
·Cooling equipment and air conditioner
· Aviation and navigation inspection
Description
MPM283 piezoresistive pressure sensor is OEM pressure sensor with stainless steel isolated diaphragm, the whole product has integrated construction, high endurance, high stability and good reliability , it can be used specially for middle and high pressure measurement.
The pressure sensor using high accurate and stable pressure die, are produced on the advanced production line. Sensors are tested automatically, and compensated zero and temperature performance.
With identical mounting dimension, the sensors are widely used for chemi-industry, process control, liquid pressure system and switch, etc.
Power supply: ≤2.0mADC, ≤10V DC
Electric connection: Kovar pin or 100mm silicon rubber flexible wires
Common mode voltage output: 50% of input (typ.)
Input impedance: 3kΩ~8kΩ
Output impedance: 3.5kΩ~6kΩ
Response (10%~90%): <1ms
Insulated resistor: 100MΩ, 100VDC
Overpressure: 1.5 time FS or 110MPa(min. value is valid)
Diaphragm: stainless steel 316L
Housing: stainless steel 316L
Pin: Kovar or silicon rubber flexible wires
O-ring: Viton
Net weight: ~8g
Position effect: deviate 90° from any orientation, zero change ≤0.1%FS
Shock: no change at 10gRMS, (20~2000)Hz
Impact: 100g, 11ms
Media compatibility: the liquid or gas which is compatible with stainless steel and Viton
Media temperature: (35±1)°C
Environment temperature: (35±1)°C
Shock: 0.1g (1m/s/s) Max
Humidity: (50%±10%)RH
Local air pressure: (86~106)kPa
Power supply: (1.5±0.0015)mADC
| Specification* | Min. | Typ. | Max. | Units |
| Linearity ** | | ± 0.2 | ± 0.25 | %FS, BFSL |
| Repeatability | | ± 0.05 | ± 0.075 | %FS |
| Hysteresis | | ± 0.05 | ± 0.075 | %FS |
| Zero output | | | ± 3 | mVDC |
| FS output | 70 | | | mVDC |
| Zero thermal error | | ± 0.75 | ± 1.0 | %FS, @35C |
| Span thermal error | | ± 0.75 | ± 1.0 | %FS, @35C |
| Compensated temp. range | -10~80 | C |
| Working temp. range | -40~125 | C |
| Storage temp. range | -40~125 | C |
| Stability | | ± 0.1 | ± 0.2 | %FS/year |
*testing at basic condition:
Media temperature: (35± 1)C
Environment temperature: (35± 1)C
Shock: 0.1g (1m/s/s)
Max Humidity: (50%± 10%)RH
Local air pressure: 986~106)kPa
Power supply: (1.5± 0.0015)mADC
** 100MPa pressure sensor' s linearity: typ. ± 0.30, max. ± 0.35(units ± %FS, BFSL) |
Order Guide:MPM283 | Piezoresistive OEM Pressure Sensor |
| | Code | Assembling type |
I | with cap Φ16.8 mm |
II | Φ12.6×10.5 mm |
| | Range code | Pressure range | Pressure type |
03 | 0kPa~100kPa | G.A |
07 | 0kPa~200kPa | G.A |
08 | 0kPa~350kPa | G.A |
09 | 0kPa~700kPa | G.A |
10 | 0kPa~1000kPa | G.A |
12 | 0MPa~2MPa | G.A |
13 | 0MPa~3.5MPa | G.S.A |
14 | 0MPa~7MPa | S |
15 | 0MPa~10MPa | S |
17 | 0MPa~20MPa | S |
18 | 0MPa~35MPa | S |
19 | 0MPa~70MPa | S |
20 | 0MPa~100MPa | S |
| | Code | Pressure type |
G | Gauge |
A | Absolute |
S | Sealed gauge |
| | Code | Temperature compensated type |
L | With compensated circuit board |
M | Outer compensated resistor (providing resistor value) |
| | Code | Electric connection |
1 | Kovar pin |
2* | 100mm silicon rubber flexible wires |
| |
MPM283 II 17 S M 2 the whole spec |
