Compact Stainless Steel Pressure Sensor (MPM285)

Name: Compact Stainless Steel Pressure Sensor (MPM285)
Brand: all-electronics-online.com
SKU: 819942755
Availability: InStock
Rating: 5 (73 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM285
Pressure Range:	0~100kpa...3.5MPa
Diameter:	19mm
Housing:	Stainless Steel
Impact:	100g,11ms
Pressure Type:	Gauge/ Absolute
Overpressure:	1.5 Times Fs
Weight:	25g
Power Supply:	<=2.0madc
O-Ring:	Viton
Diaphragm:	Stainless Steel

Product Description

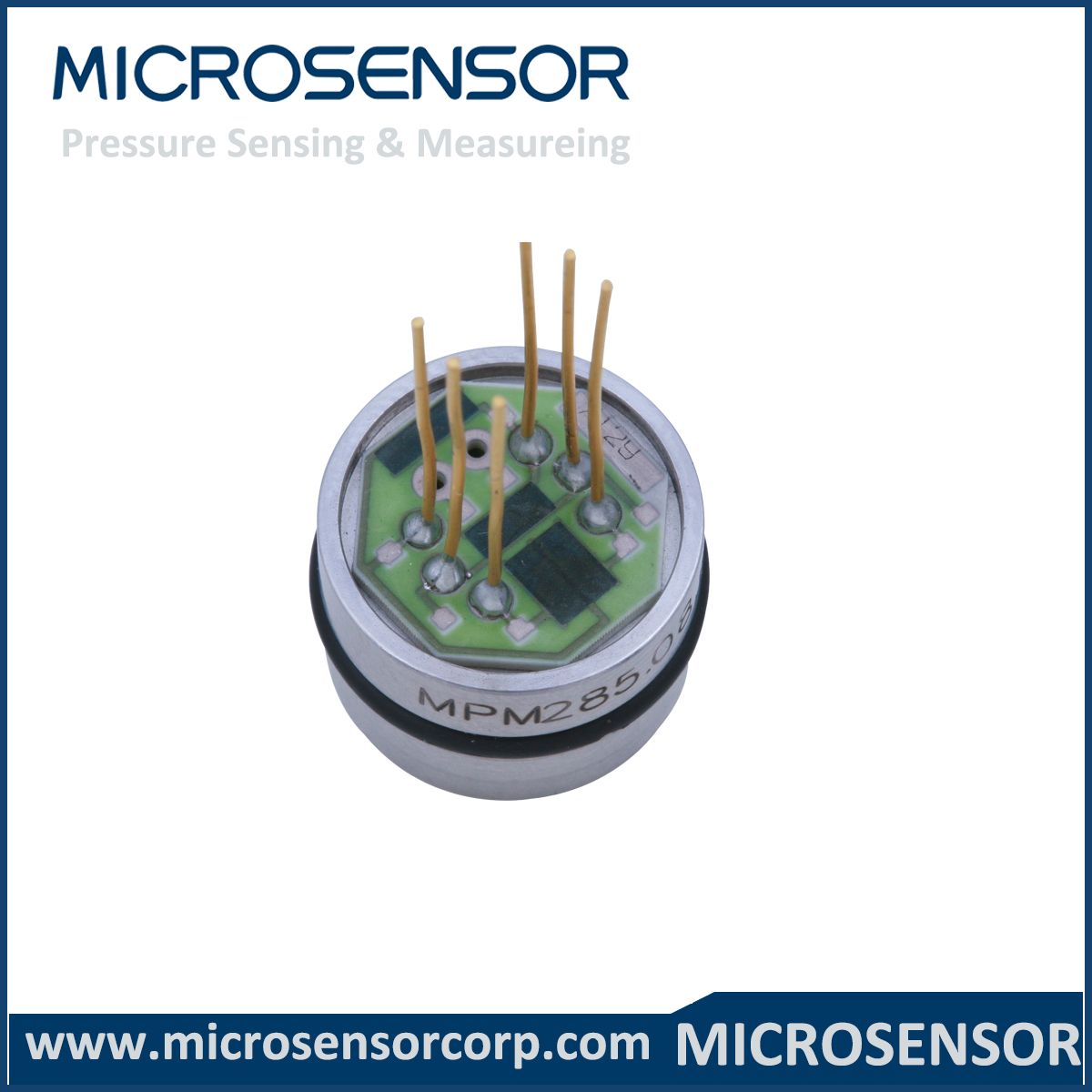

Compact Stainless Steel Pressure Sensor MPM285

Feature:
1.    Compact size;
2.    Full Stainless Steel;
3.    15mm diameter;
4.    Isolated Construction;

Application:
1. Industrial process control 2. Level measurement         3.Gas, liquid pressure measurement
4. Pressure checking meter 5.Pressure calibrator           6.Liquid pressure system and switch
7.Cooling equipment and air conditioning system 8. Aviation and navigation inspection

Electric Performance
Power supply: ≤2.0mA DC; ≤10V DC
Electric connection: Kovar pin / 100mm silicone rubber flexible wire
Common mode voltage output: 50% of input (typ.)
Input impedance: 2.5kΩ~5kΩ
Output impedance: 3.5kΩ~6kΩ
Response (10%~90%):<1ms
Insulation resistor: 100MΩ, 100V DC
Overpressure: 1.5 times FS

Construction Performance:
Diaphragm: stainless steel 316L
Housing: stainless steel 316L
Pin: Kovar
O-ring: Viton
Net weight: ~11g

Environment Condition:
Position: deviate 90°from any direction, zero change ≤±0.05%FS
Shock: no change at 10gRMS, (20~2000)Hz
Impact: 100g, 11ms
Media compatibility: the gas or liquid which is compatible with construction material and Viton

Basic Condition:
Media temperature: (35±1)ºC
Environment temperature: (35±1) ºC
Shock: 0.1g (1m/s2) Max
Humidity: (50%±10%) RH
Local air pressure: ( 86~106)kPa
Power supply: (1.5±0.0015) m ADC

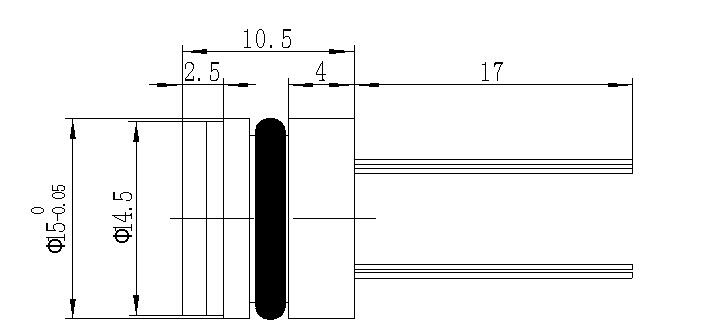

Outline Construction:

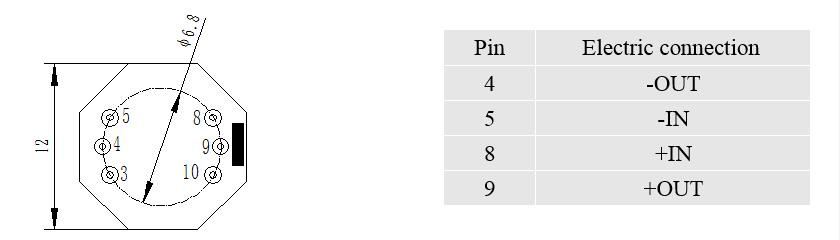

Electric Connection:

Order guide:

MPM285

Pressure Sensor

Range code

Pressure range

Ref.

Range code

Pressure range

Ref.

0kPa~100kPa

G.A

0kPa~1000kPa

G.A

0kPa~200kPa

G.A

0MPa~2MPa

G.A

0kPa~350kPa

G.A

0MPa~3.5MPa

G.S.A

0kPa~700kPa

G.A

Code

Pressure type

Gauge

Absolute

Sealed gauge

Code

Pressure connection

O-ring

Code

Compensation

Laser trimming

Code

Electric connection

Kovar pin

100mm silicone rubber flexible wire

MPM285 08 G 0 L 1 the whole spec

Order Note
1. We suggest you to use Floating construction when you install the sensor to prevent affecting sensor stability;
2. Please pay attention to protect sensor isolated diaphragm and ceramic compensated board, to avoid damaging sensor or affecting the performance;
3.Temperature resistant range of standard Viton O-ring of sensor is -20ºC ~ 250ºC. When working temperature is lower than -20ºC, or sensor is applied in critical environment, please contact us.
