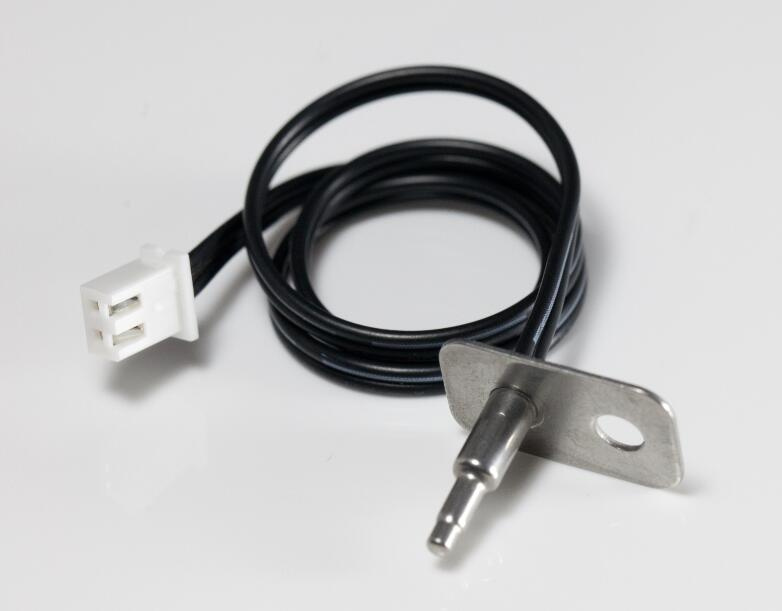

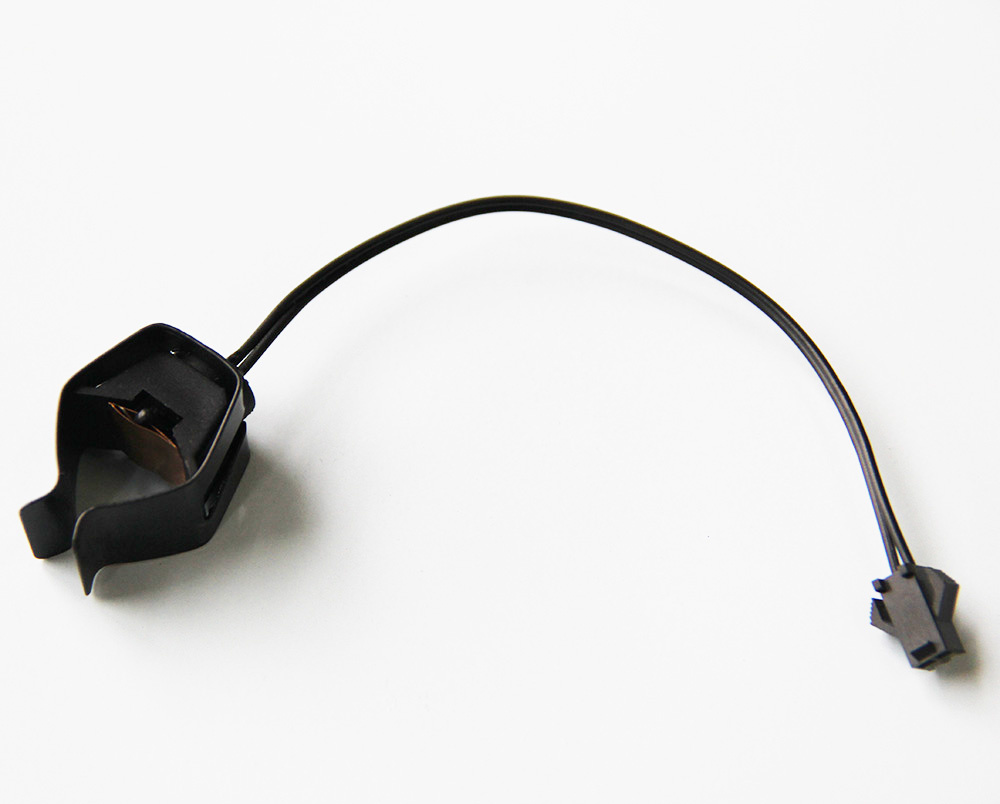

Compatible Ntc Temperature Sensor with Fitting Clip

Name: Compatible Ntc Temperature Sensor with Fitting Clip
Brand: all-electronics-online.com
SKU: 768095735
Availability: InStock
Rating: 5 (58 reviews)

Price:	US $ 0.01-1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MFP-7 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-40 to +105 Degrees

Product Description

Specifications:

Sensor: NTC thermistor R25(25°C): 10KΩ
Accuracy: ±1%, ±2%, 3%
B value: R25/50:3435K
Long term stability (1 year): ±0.1%
Working temperature range: -40~~105 Celsius degrees
Lead wire: PVC wire

Other Options:

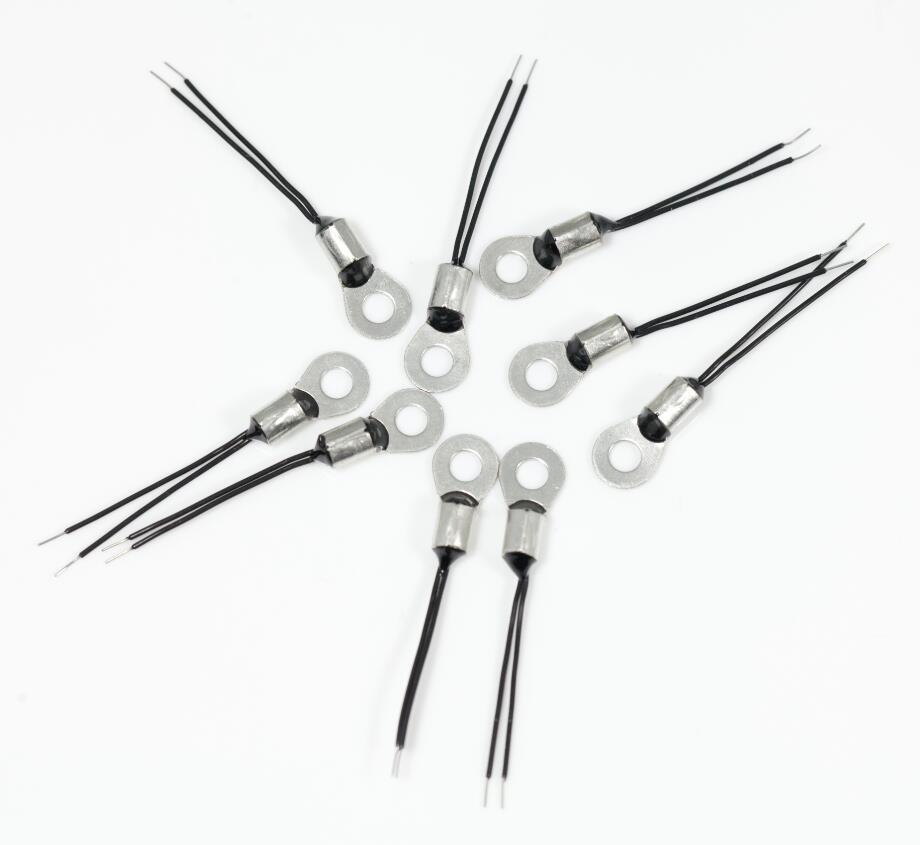

Sensor Type	NTC: 5K, 10K, 20K, 50K, 100K, customized
Operatating Temperature Range	-20~120 C, -30~250 C,-40~350 C, or customized
Resistance Tolerance	0.5%, 1%, 2%, 3%, 5%
Housing	Nickel plated copper, brass, stainless steel, aluminum, or customized Size is customized
Wire	Teflon wire, PVC wire, Silicone wire, customized; Length is customized
connector	As required
Special Request	Waterproof, anticorrosion, or other

Features:
1. Fast response,
2. High temperature,
3. measuring precision,
4. Small volume,
5. convenient installation,
6. Heat resistant plastic shell,
7. High reliability and long term stability.

Typical Applications:
Pipe heating
Floor heating
Cogeneration systems
