| Prod Model: |
GT-M3030-1W |
| Product Name: |

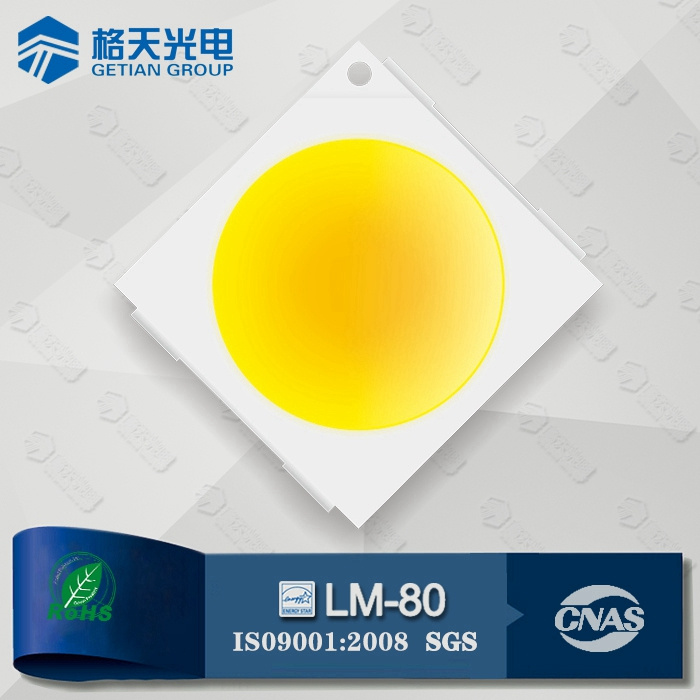

White 1W 3030 LED |
| Current: |
350mA or 150mA |
| Voltage: |
2.8-3.4V or 6.0-6.8V |
| Luminous Flux: |
90-120lm, 120-130lm, 130-140lm, 140-150lm |
| Life-Span: |
30000 Hours |
| Warranty: |
3 Years |
| LED Manufacturer: |
OEM ODM Service |
| Honor: |
Top 10 Chinese Manufacturer |
| LED Packaging Type: |
Chip |
| Chip Material: |
InGaN |
| Beam Angle: |
120?? |
| Emitting Color: |
White |
| Power: |
1W |
| Life: |
30000h |
| Certification: |
CE |
| IP Rating: |
Na |
| Base Material: |
PC |
| LED Chips: |
Epistar, Bridgelux |
Product Description
Competitive Factory Price 6.0-6.8V Forward Voltage 1W SMD 3030 LED Diode | Parameter | MIN | AVG | MAX |
| Power Dissipation | --- | 0.06W | 0.09W |
Forward Voltage(350mA)
Forward Voltage(150mA) | 2.8V
6.0V | 3.2V
6.4V | 3.4V
6.8V |
| Forward Current | --- | 350mA / 150mA | --- |
| Peak Forword Current | --- | --- | 350mA |
| Luminous Flux | 100LM | 130LM | 150LM |
| Luminous Efficacy | 100LM/W | 130LM/W | 150LM/W |
| Color Temperature | 5000K | | 7000K |
| Color Rendering Index | 70 | 80 | 90 |
| Viewing Angle | | 120° | |
| Reverse Current(IR) | | | 10μA |
| Reverse Voltage(VR) | | | 5V |
| Welding Mode | Reflow soldering |
| Welding Temperature | | | 260ºC |
| Welding Time | | | 10S |
| Operating Temperature | -40ºC | | 60ºC |
| Working Humidity | | | 30%~70% |
| Storage Temperature | -40ºC | | 60ºC |
| Life Span | 30000H |
| Electrostatic Discharge | 2000V |
Shenzhen Getian 1W SMD 3030 LED are applied to LED Tube Light, LED Panel Light, LED Bulb, LED Spot Light and LED Flood Light...which advantage is:
- IS09001:2008 Factory, SGS/ TUV Audited Factory
- Getian LAB accredited by CNAS
- 120-140LM/W, Energy Saving over 50%
- Good raw material used: Taiwan Chip, USA Intermatix Phosphor, 99.99% purity gold wire etc...
- Excellent Color Consistency.(Two times of color seperation process)
- Brightness Decay can be as low as 3%.
- Equipped with 16 automatic production lines. ( Production capacity: 10KK high power led/month, 30kk smd led/month.)
- Competitive factory price with superior quality (strictly tested)
- High CRI. Ra>80, Ra>90 Available.
- Warranty: 3 Years
Other Similar SMD LED| Product Name | Power | Current | Voltage | Color Temparature |
| 3528 SMD LED | 0.06W | 20mA | 2.8-3.2V | 2700-7000K |
| 5050 SMD LED | 0.2W | 60mA | 2.8-3.2V | 2700-7000K |
| 5730 SMD LED | 0.5W | 150mA | 2.8-3.2V | 2700-7000K |
| 3030 SMD LED | 1W | 350mA / 150mA | 3.0-3.2V / 6.0-6.8V | 2700-7000K |
Product Dimension of Competitive Factory Price 6.0-6.8V Forward Voltage 1W SMD 3030 LED Diode

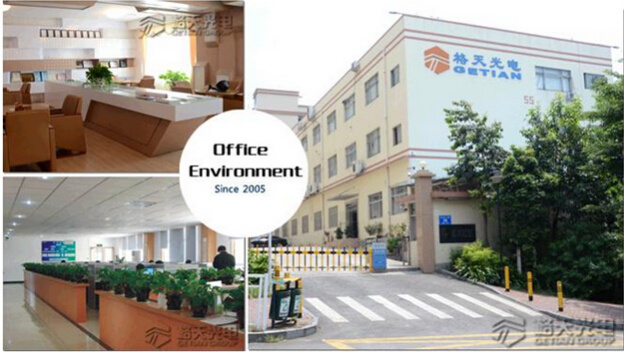

GETIAN COMPANY INTROUDCTION:
Getian, established in 2005, is a professional first-class LED manufacturer mainly specializing in the R & D, production and sales of High Power LED 1-500W, Flip Chip LED 1-500W,SMD LED, LED drivers and Finished LED Luminaires for outdoor lighting.
Getian has achieved amazing LM-80 test resutls for high power led 1-300W Series.
Getian has a production area of more than 12,000 square meters with over 600 employees. ISO9001-2008 Quality Control System and ERP Management System have been introduced in 2009. Getian owns 15 fully automatic high power led production lines and a set of advanced equipment for flip chip led.
Getian equips with a high-level R & D lab that has been accredited by CNAS.
Product Lines:
1) High Power LED (1-3W, 360-850nm, CRI up to 95, up to 150LM/W) RGB, R, G, B, Y, A
2) LED COB/Module (1-500W, CRI up to 90, up to 120-130LM/W) RGB, R, G, B, Y, A
3) SMD LED (3528, 2835, 5050, 5730, 0.06-1W, CRI up to 90, up to 120-140LM/W) ,RGB,R,G,B,Y,A
4) LED Driver

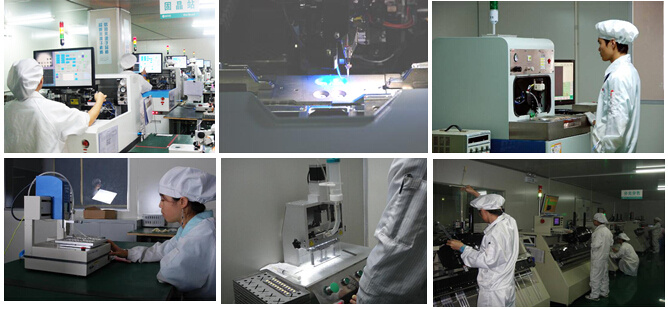

GETIAN FACTORY TOUR:
MAIN MANUFACTURING PROCESS
DIE BONDING--WIRE SOLDERING--PHOSPHOR SPRAYING--SILICA GEL INJECTION--COLOR SEPARATION
WHY GETIAN LEDS?
GETIAN is a Market-Leading LED Manufacturer and Solution Provider.
Strong R & D Forces
* A strong R & D team of more than 40 experienced engineers.
* CNAS Accredited Laboratory.
* Launch highly-competitive new products seasonly.
* Revolutionary launch for a full series of high power & high integration ceramic flip chip led.
Extensive Application Experience & Quality Commitment
* Strict control over raw materials selection.
* 5 Years Warranty;
* Reliable long life span; LM-80 certification for High Power LED 1-300W.
* More than 10 years' experience in Outdoor Lighting application both in domestic and overseas market.
* Supported many government lighting projects.
Outstanding Service Level
* Professional Sales Team backing up with experienced engineers.
* Best Quality & Best Price & Best Service.
* Customizaiton and OEM service available.
Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.
Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.
With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.
Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.
Warmly welcome all fields of friends to visit our company and negotiate trade.
