Composite Pin, Suspension, Post, Crossarm Insulator

Name: Composite Pin, Suspension, Post, Crossarm Insulator
Brand: all-electronics-online.com
SKU: 712685995
Availability: InStock
Rating: 4.6 (137 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FXBW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	High-voltage
Material:	Composite Polymer
Structure:	Post, Suspension, Pin,Crossarm Type
Type:	a or B
Color:	Grey
Brand:	Cowinelec, OEM,ODM

Product Description

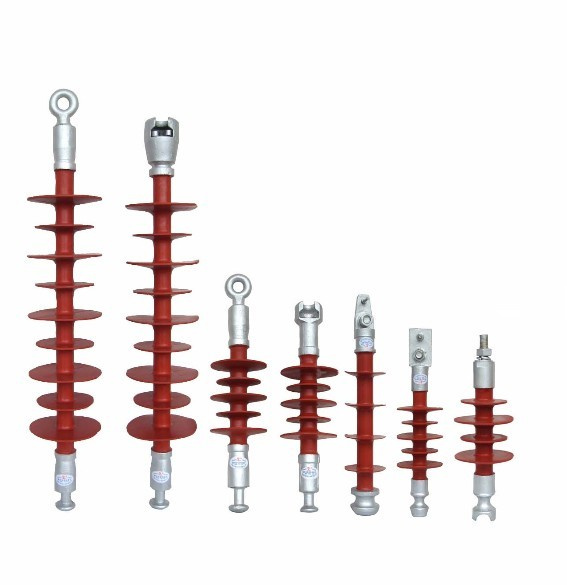

Composite Pin, Suspension, Post, Crossarm Insulators

Composite suspension insulators: 220KV, 110KV, 100KV, 66KV, 36KV, 35KV, 25KV, 24KV, 21KV, 15KV, 12KV, 10KV, etc
Composite pin insulators: 10KV, 35KV
Composite rod post insulators: 1220KV, 110KV, 66KV, 36KV, 35KV, 24KV, 20KV, 15KV, 8KV, 6KV, 5KV, etc
Composite cross-arm used insulators: 1240KV, 66KV, 36KV, 35KV, 33KV, 24KV, 15KV, 10KV, etc
Composite dry type wall bushings: 1110KV, 870KV, 470KV, 460KV, etc
Railway insulators: 25KV

We also special supply according to your specification, pls send us details.

Figure No.	Model	Rated Voltage	Specified Mechanical Load	Coupling Size	Section Length	Insulating length	Shed diameters	Shed Spacing	Grading Ring Diameter	Minimum Creepage	Full-Wave Impulse Withstand Voltage (Peak)	Wet Switching Impulse Withstand (Peak)	1 Min Wet Power Frequency Withstand Voltage	Weight (for Reference)
		kV	kN		H mm	h mm	d1/d1/d2 mm	B mm	D1/D2/D3 mm	L mm	≥ kV	≥ kV	≥ kV	kg
1	FXBW-±1000/(420/400)	±1000	420/400	28	11000±50	10000	246/158/98	158	1600/600/400	40000	±4500	±2400	±1125	136
2	FXBZ-±800/(240/ 210/180/160)	±800	240/210/ 180/160	20	8700±50	8000	246/158/98	158	1120/560/232	31100	+3600	+1950	+900	115
3	FXBW-750/(120/100)	750	120/100	16	7150±50	6500	174/88	79	440/450/500	23800	2700	1800	1120	52
4	FXBZ-±660/(240/ 210/180/160)	±660	240/210/ 180/160	20	7800±50	7100	174/88	79	600	25800	+3200	+1800	+780	58
5	FXBZ-±500/(240/ 210/180/160)	±500	240/210/ 180/160	20	5440±50	4900	174/88	79	400	17600	+2550	+1550	+600	36
6	FXBW-400/(120/100)	400	120/100	16	3910±50	3300	171/85	79	370	12800	2250	1240	740	27
7	FXBW-330/(120/100 /70)	330	120/100/70	16	2990±40	2600	162/86	95	305/350	9400	1425	950	570	19
8	FXBW-220(230)/(120/100/70)	220/230	120/100/70	16	2240±30	1900	162/86	95	305/250	6800	1000		395	12
9	FXBW-110(115)/(120/ 100/70)	110/115	120/100/70	16	1240±15	1000	162/86	95	250	3300	550		230	5.3
10	FXBW-69(66/63)/ (120/100/70)	69/66/63	120/100/70	16	940±15	740	162/86	95		2200	410		185	3.7
11	FXBW-15(12/11/10)/ (80/70/40)	15/12/11/10	(80/70/40)	16	340±3	163	150/115/80	50		400	95	60	400	1.4

PROFESSOINAL: High Voltage Electrical Materials and Poleline Hardwares

Cowin Electrical Co., Ltd, is located in the largest manufacturing base of low-voltage electric equipment of Liushi China, which is called "the Electric Device Metropolis of China".

Cowin regards quality of products as life. We have standard Management System. We produce and widely sell over 300 series, more than 10000 types in high-and-low voltage electrical device, complete equipment, power transformer, cable and wire, instrument and meter, welding equipment, which are praised by all users. A number of new independent intellectual property right, intelligent appliances is moving into the market.

We are keeping our business principles for "Approaching the first-class management, producing the first-class products, providing the first-class service". All Cowin staffs are working hard and constantly innovate.

Honest Cowin are welcome to all users to fighting a better tomorrow hand in hand, Cowin -Cooperation and doulbe win.

www.powerfitting.net; www.cowinelec.com
