Composite Pin Type Insulators (FPW-10T16)

Name: Composite Pin Type Insulators (FPW-10T16)
Brand: all-electronics-online.com
SKU: 618783642
Availability: InStock
Rating: 4.7 (129 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FPW-10T16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	10-12kv
Bending Load:	2kn
Creepage Distance:	210mm
Application:	High-voltage
Material:	Composite Polymer
Structure:	Pin Insulator
Size Of Bearing Capacity:	2kn
Brand:	Powlik

Product Description

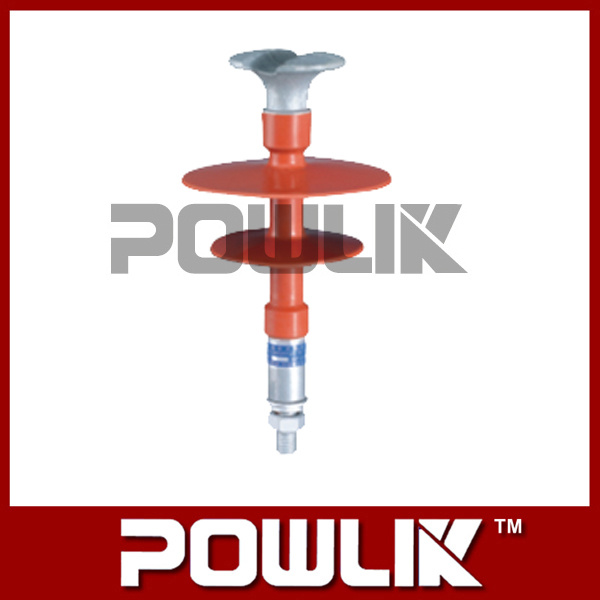

Composite Pin Type Insulators (FPW-10T16)

Composite Pin type insulators
Technical Data
Model: FPW-10/2T16
Rated Voltage: 10KV
Highest Voltage: 12KV
Bending Load: 2KN
Structure Height: 161mm
Max. Dia.: 146mm
Min. Arcing Distance: 105mm
Min. Creepage Distance: 210mm
Dia. Of end thread: 16mm (M16)
Power Frequency withstand voltage wet: 28KV
Full wave lighting impulse withstand voltage: 75KV

No .	Type	Rated bent	Structure	Max.	Min.	Min nominal	Diameter	Rated	Highest	1min power	Full wave lightning
		withstand	height	diameter	Electric arc	creepage	of end	voltage	voltage of	frequency wet	impulse withstand
		load(kN)	(mm)	of insulating	distance	distance	thread (mm)	(kV)	equipment	withstand voltage	voltage(peak value)
				shed (mm)	(mm)	(mm)			(kV)	not less than (kV)	not less than (kV)
1	FPW-10/2T16	2	161	146	105	210	16	10	12	28	75
2	FPQ ₁ W-10/4T20	4	195	146	127	300	20	10	12	40	90
3	FPQ ₂ W-10/3T20	3	260	146	184	460	20	10	12	50	110
4	FPS-105/5	5	250	90	180	380	20	10	12	42	105

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
