| Prod Model: |
solar cable-Dayuan-3 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Certification: |
TUV |
| Insulation Material: |
Radiation Crosslinked Polyolefine |
| Range Of Application: |
Solar Power Generation System |
| Brand: |
Dayuan |
Product Description

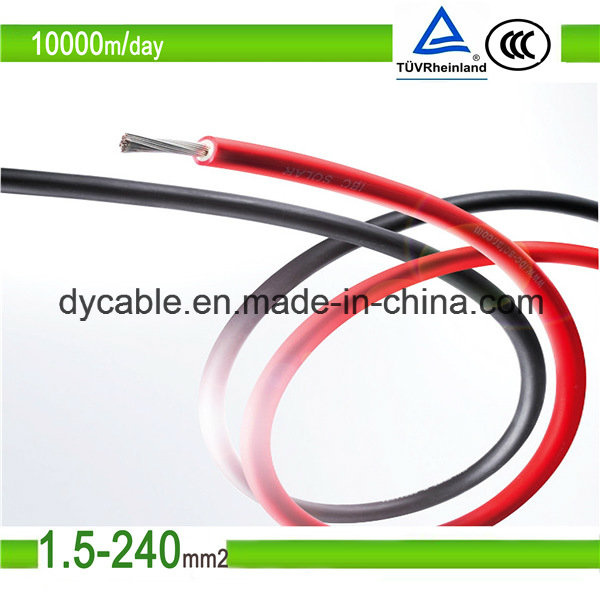

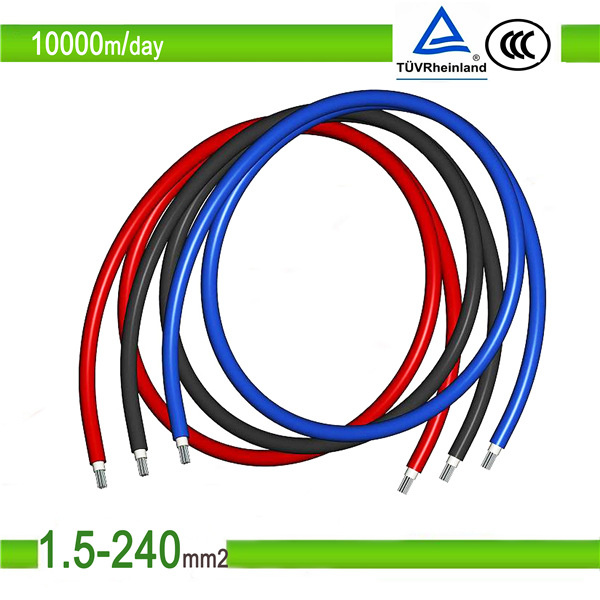

Comptitive & approval photovoltaic Solar power cable
Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Solar cables are designed to be UV resistant and weatherresistant. It can be used within a large temperature range and are generally laid outside.
Application:
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
Specifications:
| MODEL | PV1-F |
| Conductor | Tinned copper wire,class 5 (as per IEC 60228) |
| Insulation | No Halogen PO insulation |
| Sheath | No Halogen PO sheath |
| rated voltage | AC 0.6/1KV |
| | DC 1.8KV |
| Temperature range | -40°C~+90°C,dry/ humidity |
| Max.working temperature of conductor | 120°C |
| During short circuit | 200°C |
| Standard | EN 2PFG 1169 |
| type | Cross Sectional Area(mm2) | Conductor structure( Strand /mm) | diameter(mm) | insulation thickness(mm) | sheat thickness(mm) | cable diameter(mm) | DC resistance at 20°C(Ω/km) |
| PV1-F | 1.5 | 48/0.2 | 1.6 | 1.0 | 0.8 | 5.2 | 12.2 |
| PV1-F | 2.5 | 77/0.2 | 2.0 | 1.0 | 0.8 | 5.6 | 7.56 |
| PV1-F | 4 | 56/0.3 | 2.6 | 1.0 | 0.9 | 6.4 | 4.7 |
| PV1-F | 6 | 84/0.3 | 3.2 | 1.0 | 0.9 | 7.0 | 3.11 |
| PV1-F | 10 | 77/0.41 | 4.4 | 1.0 | 0.9 | 8.2 | 1.84 |
| PV1-F | 16 | 119/0.41 | 5.5 | 1.0 | 1.1 | 9.7 | 1.16 |
| PV1-F | 25 | 189/0.41 | 6.5 | 1.2 | 1.2 | 11.3 | 0.734 |
| PV1-F | 35 | 244/0.41 | 7.5 | 1.2 | 1.2 | 12.3 | 0.529 |
Company Information:
Luoyang Da Yuan Cable Factory Co., Ltd.is a professional leading manufacturer in the field of wires and cables, was established in 2006 of China. We have been specialized in producing wires and cables for several years which can be applied in many areas, our main products are power cable, solar cable, and overhead line cable like ACSR, AAC, ABC cable, control cable, transformer, and aluminum wire rod. We have advanced automatic production lines. Besides, we can provide the raw material of aluminum cable as well, thus our price is very competitive and reasonable.
Contact us:
Max ShangInternational sales managerInternational Trade DepartmentLuoyang Dayuan Cable Factory Co., Ltd=================================Tel: +86-379-69991587 Mobile: + 86-13803889574Web: http://www.yr-group.cnAlibaba Showroom: http://lyyari.en.alibaba.com/=================================
Luoyang Da Yuan Cable Factory Co., Ltd. is founded in the Sept. 2011 with registered fund 200 million RMB which is the subsidiary of Luoyang Asian Sun Industrial Group Co., Ltd. We can produce all kinds of high and low voltage electric wire and cables, and have been one of the new technology development enterprise made scientific, industry, trading as a whole. Main products include power cables, PV cable, control cables, branching cables, aerial cables, Most important thing is that we also produce the raw material-aluminium wire rod coperated with Ls Group etc. Seven big series, more than 300 varieties, nearly. 2000. Specifications.
Dayuan Cable is committed to "all for customer satisfaction", comprehensively implements the ISO9001 quality system, effectively guarantees the enterprise competitiveness in the market. Short-term goal for company's development is giving full play to the advantages of talents, technology and equipment, improving product quality, building the "Da Yuan" brand in the domestic, making the product into the national grid, Its farther goal is carrying out the strategy of sustainable development, making the "quality, price, service" well done to step into the international market, setting up national cable brand, and achieving the leapfrog development of the enterprise by virtue of producing higher level of series cable products.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
