Concox Gv20 Multifunctional 3G Vehicle Motorcycle GPS Tracker Waterproof Tracking Device Google Realtime Tracking GPS Module

Name: Concox Gv20 Multifunctional 3G Vehicle Motorcycle GPS Tracker Waterproof Tracking Device Google Realtime Tracking GPS Module
Brand: all-electronics-online.com
SKU: 836048305
Availability: InStock
Rating: 4.7 (83 reviews)

Price:	US $ 47/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GV20
Type:	GPS Tracker
Use:	Automotive&Hand Held
Operating Principle:	Mixed Type
Port Number:	Sequencing Channel
Carrier Frequency:	Single Frequency
Model:	Gv20
Screen Size:	Under 2 Inches

Product Description

Concox GV20 Multifunctional 3G Vehicle Motorcycle GPS Tracker Waterproof Tracking Device Google Realtime Tracking GPS Module

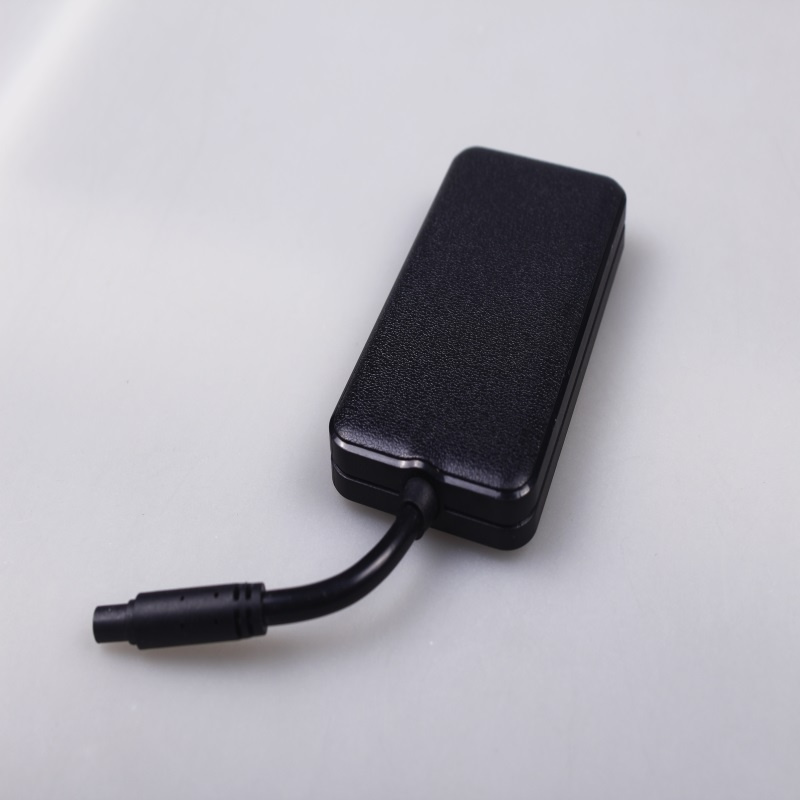

GV20 3G Vehicle GPS Tracker
With finest craftsmanship, GV20 is a fully-featured, highly competitive and cost effective 3G GPS tracker developed for vehicle, motor and bus tracking. It offers you crystal clear real-time tracking details, including location, route, flashback, etc., even in tough environment. It supports remote fuel/power cutoff and gives you insight on ignition status. Wherever you go, its instant alert notifications allow you to react accordingly and immediately.
Feature
GPS+AGPS+LBS tracking
Allow the location to be pinpointed in real time or periodically
IP65 dust and waterproof
Water-resistant to ensure stable operation in tough environment
WCDMA & GSM
Use 3G network (outstanding coverage, no 2G worries)
Remotely cut off fuel/power
Compel the vehicle to stop by breaking off the fuel connection
Tamper alert
Be notified of any unauthorized displacement from original installation
Multiple alarms
Instant alert for vibration, overspeed, power off, geo-fence
ACC detection for ignition status
Be aware of the igniton status whenever you need
Configurable tracking modes
Location uploded following fixed distance, time interval, preset cornering

Spec

GSM Specification
Communication system	WCDMA/GSM
GSM frequency	850/900/1800/1900 MHz
GPRS	Class 12, TCP/IP
Memory	32+32Mb
Phase error	RMSPE<5,PPE<20
Max output	GSM850/GSM900:33±3dBm
Max output	GSM1800/GSM1900:30±3Bm
Max frequency error	±0.1ppm

GPS Specification
GPS chipset	BDS + AT6558
Frequency	L1,1575.42MHz C/A code
GPS channel	66
Location accuracy	<10 meters
Tracking sensitivity	-165dBm
Acquisition sensitivity	-148dBm
TTFF (open sky)	Avg. hot start≤1sec
TTFF (open sky)	Avg. cold start≤35sec

Function & Package
Standby current:5mA/12VDC
Battery:400mAh/3.7V
LED Indicator :GPS(blue), GSM(green), Power(red)
Working Voltage/current:9-36VDC/31mA(12VDC) 19mA(24VDC)
Operating Temperature:-20ºC~ 70ºC
Dimension:88(L) ×43.0 (W) ×13.0 (H) mm
Weight:60g

Packing:
1*GPS Tracker GV20
1 * power cable
1 * relay socke
1 * relay plug
1 * 3M cotton stick

Shenzhen Haoday Technology Co., Ltd. Established in 2006, with more than 10 year's experience in GPS tracker, GPS fleet tracking system, is a leading hi-tech supplier and specializing in the fields of GPS pesonal and vehicle trackers.

Haoday can provide you professional digital products. Our products is cost-competitive, the quality is outstanding, and after-sale service is best.

We have the faith that "customer is the biggest asset". Customer's satisfaction is our greatest will, We believe that we will meet all your demands.

After many years of efforts, our company formed a team of professional and responsible sales. All email inquiries will receive a response within one working days. Looking forward to working with you.
