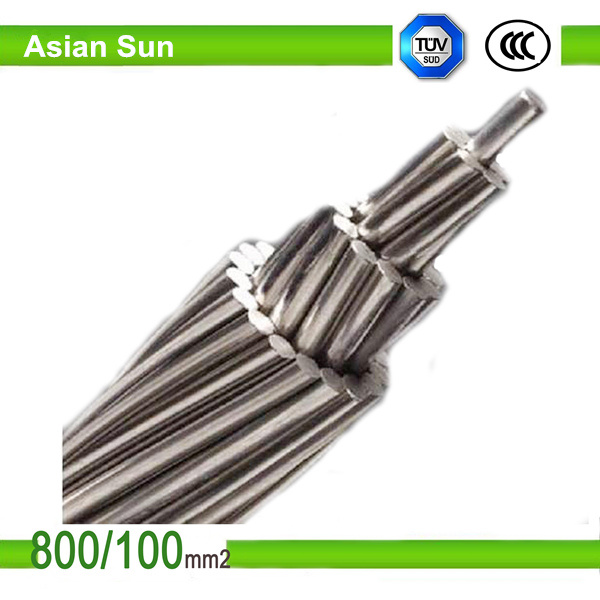

Conductor Al SCA Overhead ACSR Cable

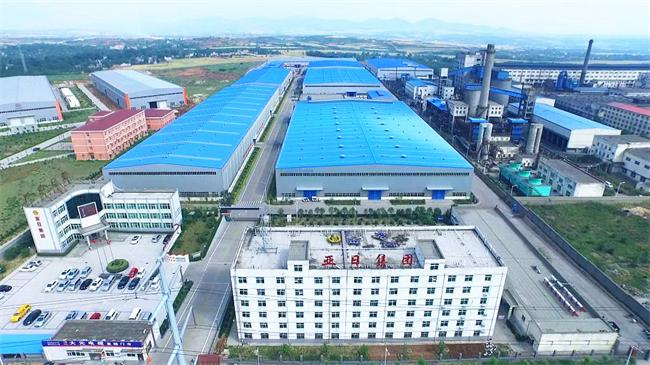

Factory View

Address: Yichuan Electricity Industry zone, Luoyang City, Henan Province, China
Welcome you come to visit !
Application:

ACSR conductor(Aluminum Conductor Steel Reinforced) are suitable for use in all practical spans on wood poles, transmission towers,and other structures. Application range from extra high voltage(EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.

ACSR conductor has a long service record because of its economy ,dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel cores enable higher tensions ,less sag,and longer spans than any alternative.

Construction:

ACSR conductor are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different. The additional corrosion protection is available through the application of grease to the cores or infusion of the complete cable with grease.

By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached.

Specification and performance of ACSR

ACSR manufactured by Asian Sun meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc.

Nominal cross-sectional area (Al. or St.)mm2	Construction (No./Dia) mm		Outer Dia. mm	Resistance at 20 °C (no more than) Ω/km	Calculated breaking load N	Calculated weight kg/km	Delivery length(no less than) m	Calculated carrying capacity A
Nominal cross-sectional area (Al. or St.)mm2	Al.	St.	Outer Dia. mm	Resistance at 20 °C (no more than) Ω/km	Calculated breaking load N	Calculated weight kg/km	Delivery length(no less than) m	70°C	80°C	90°C
10/2	6/1.50	1/1.50	4.50	2.706	4120	43	3000	66	78	87
16/3	6/1.85	1/1.85	5.55	1.779	6130	65	3000	85	100	113
25/4	6/2.32	1/2.32	6.96	1.131	9290	103	3000	111	131	149
35/6	6/2.72	1/2.72	8.16	0.8230	12630	141	3000	134	158	180
50/8	6/3.20	1/3.20	9.60	0.5946	16870	195	2000	161	191	218
50/30	12/2.32	7/2.32	11.60	0.5692	42620	372	3000	166	195	218
70/10	6/3.80	1/3.80	11.40	0.4217	23390	275	2000	194	232	266
70/40	12/2.72	7/2.72	13.60	0.4141	58300	511	2000	196	230	257
95/15	26/2.15	7/1.67	13.61	0.3058	35000	381	2000	252	306	351
95/20	7/4.16	7/1.85	13.87	0.3019	37200	409	2000	253	277	319
95/55	12/3.20	7/3.20	16.00	0.2992	78110	708	2000	250	270	301
120/7	18/2.90	1/2.90	14.50	0.2422	27570	379	2000	287	350	401
120/20	26/2.38	7/1.85	15.07	0.2496	41000	467	2000	285	348	399
120/25	7/4.72	7/2.10	15.74	0.2345	47880	527	2000	265	315	365
120/70	12/3.60	7/3.60	18.00	0.2364	98370	869	2000	258	301	335
150/8	18/3.20	1/3.20	16.00	0.1989	32860	461	2000	323	395	454

ACSR Technical Characteristics Based on Standard BS 215-2

Code name	Nominal aluminum area	Stranding and wire diameter		Sectional area of aluminum	Total sectional area	Approx. overall diameter	Approx. mass	Calculated D.C. resistance at 20oC	Calculated breaking load
	Nominal aluminum area	Al	Steel	Sectional area of aluminum	Total sectional area	Approx. overall diameter	Approx. mass	Calculated D.C. resistance at 20oC	Calculated breaking load
	mm2	No./mm		mm2	mm2	mm	kg/km	Ω/km	kN
RABBIT	50	6/3.35	1/3.35	52.88	61.7	10.05	214	0.5426	18.35
DOG	100	6/4.72	7/1.57	105	118.5	14.15	394	0.2733	32.7
WOLF	150	30/2.59	7/2.59	158.1	194.9	18.13	726	0.1828	69.2
DINGO	150	18/3.35	1/3.35	158.7	167.5	16.75	506	0.1815	35.7
LYNX	175	30/2.79	7/2.79	183.4	226.2	19.53	842	0.1576	79.8
ZEBRA	400	54/3.18	7/3.18	428.9	484.5	28.62	1621	0.0674	131.9

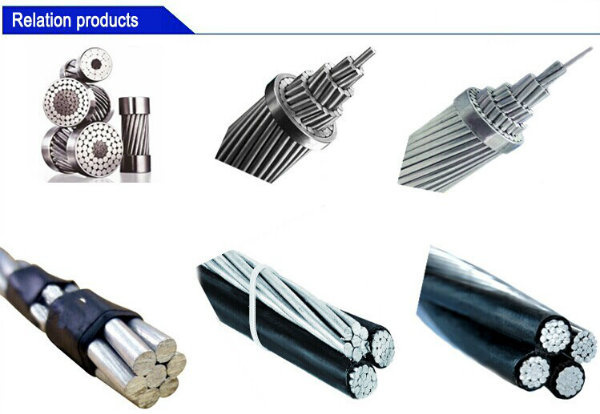

Cable Picture

The main products are power cable, electrical equipment cable, PV cable, mining cable, military industrial wire, aluminum wire, steel core aluminum stranded cable, control cable, branch cable, aerial cable and cable accessories series, with more than 300 varieties, nearly 2000 kinds of specifications.

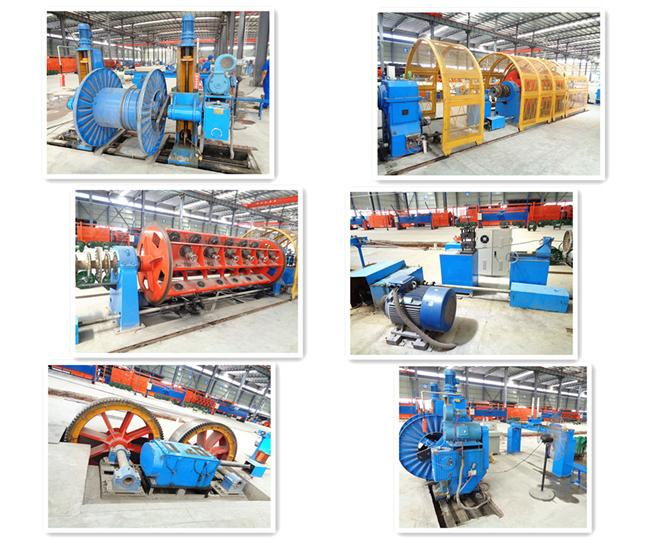

Equipment and Machine:

High-speed aluminum drawing machine, Frame-type stranding machine, Extruding machine and so on.

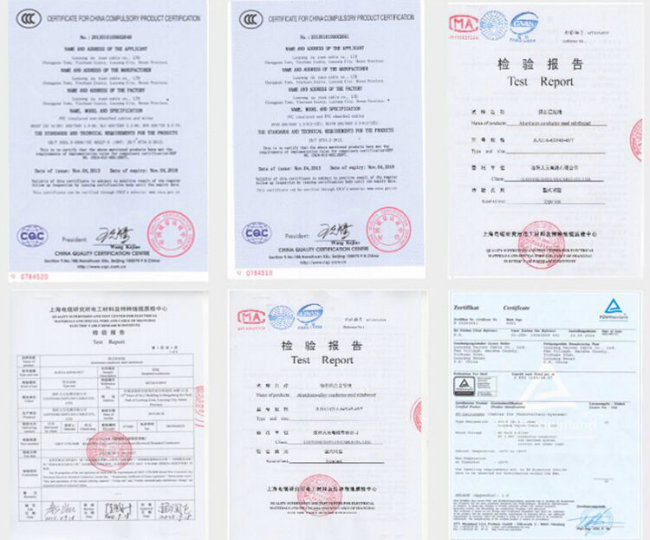

Certifications:
National Products Safety Cerficcation;
ISO9001 Quality System Certification;
CCC Chinese National Compulsory Products Certification;
Occupational Health Safety Management System Certification;
Environmental Management System Certification;
Production License of Industrial Products;
International Standard Products Sysmbol Certificate, etc.

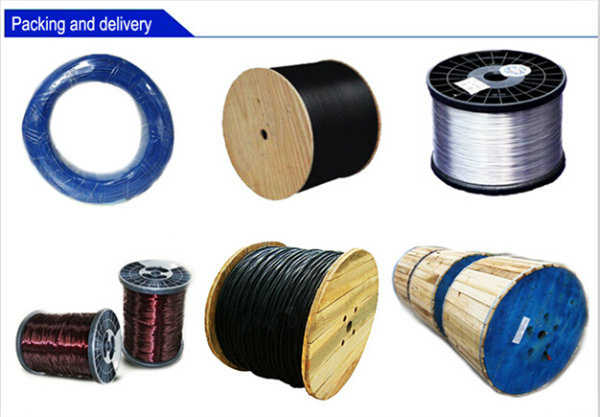

Packing and Delivery:
