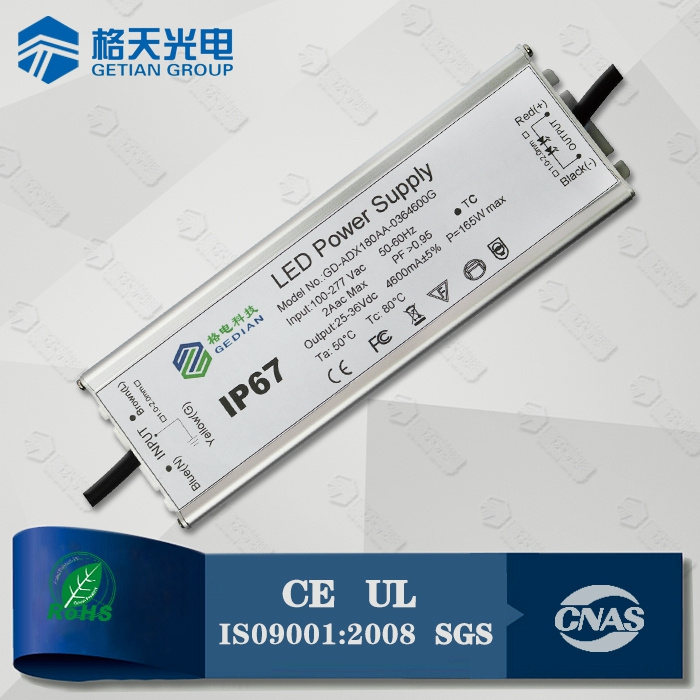

Constant Current 4500mA LED Driver 150W Waterproof

Name: Constant Current 4500mA LED Driver 150W Waterproof
Brand: all-electronics-online.com
SKU: 799082805
Availability: InStock
Rating: 5 (89 reviews)

Price:	US $ 25.5/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GD-ADX180AA
Power:	100W
Input Volt:	100-277V
Output Volt:	25-36V
Current:	4500mA
PF:	0.9
Efficiency:	88%
Weight:	1.17kg
Dimension:	2236842mm
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	100-277V
Pack Sealing Size:	2236842mm

Product Description

Constant Current 4500mA LED Driver 150W Waterproof

IP67 Waterproof LED Driver Family

Part No.	Input Volt	Output Volt	Output Current	Output Power	PF	Efficiency	Weight	Dimension (LWH)/mm
GD-ADX080AB	100-277V	25-36V	1500-2200mA	80W	≥0.9	≥86%	0.9kg	1876842
GD-ADX120AA	100-277V	25-36V	2000-3200mA	100W	≥0.9	≥88%	1.11kg	2236842
		36-54V	1800-2500mA
GD-ADX180AA	100-277V	25-36V	3000-4500mA	150W	≥0.9	≥88%	1.17kg	2336842
		36-54V	2000-3000mA
GD-ADX200AA	100-277V	25-36V	4500-6000mA	150W	≥0.9	≥88%	1.35kg	2456842
		36-54V	3000-3800mA

Features:
1.USA IC Brand; ST;
2.Capacitor: 10000H Rubycon; 5-7 years warranty.
3.PFC BOOST+FLYBACK OR LLC;
4.With OVP.OSP
5.Wide input volt range;
6.With soft start.
7.Withstand thunderstruck 6KV & IP 67
8.With waterproof gel injected. (1.0);

Other LED Power Supply for Option
Triac Dimmable Driver 8-40W
0-10V Dimmable Power Supply 30-70W
Tube Light Driver 8-40W
DC-DC LED Driver 10-40W
Anti-explosion LED Drivers 24-60W
Waterproof IP67 LED Driver 70-150W

Why Choose Our LED Driver?

Strong R & D Forces
* A strong R & D team of more than 40 experienced engineers.
* CNAS Accredited Laboratory.
* Launch highly-competitive new products seasonly.
* Customized Product for clients.

Extensive Application Experience & Quality Commitment
* Strict control over raw materials selection.
* 3-5 Years Warranty;
* More than 10 years' experience in indoor & outdoor Lighting application both in domestic and overseas market.
* Supported many government lighting projects.

Outstanding Service Level
* Professional Sales Team backing up with experienced engineers.
* Best Quality & Best Price & Best Service.
* Customizaiton and OEM service available.

More information, please contact Jenny Liao
Mob : +86 132 4475 1602

Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.

Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.

With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.

Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.

Warmly welcome all fields of friends to visit our company and negotiate trade.
