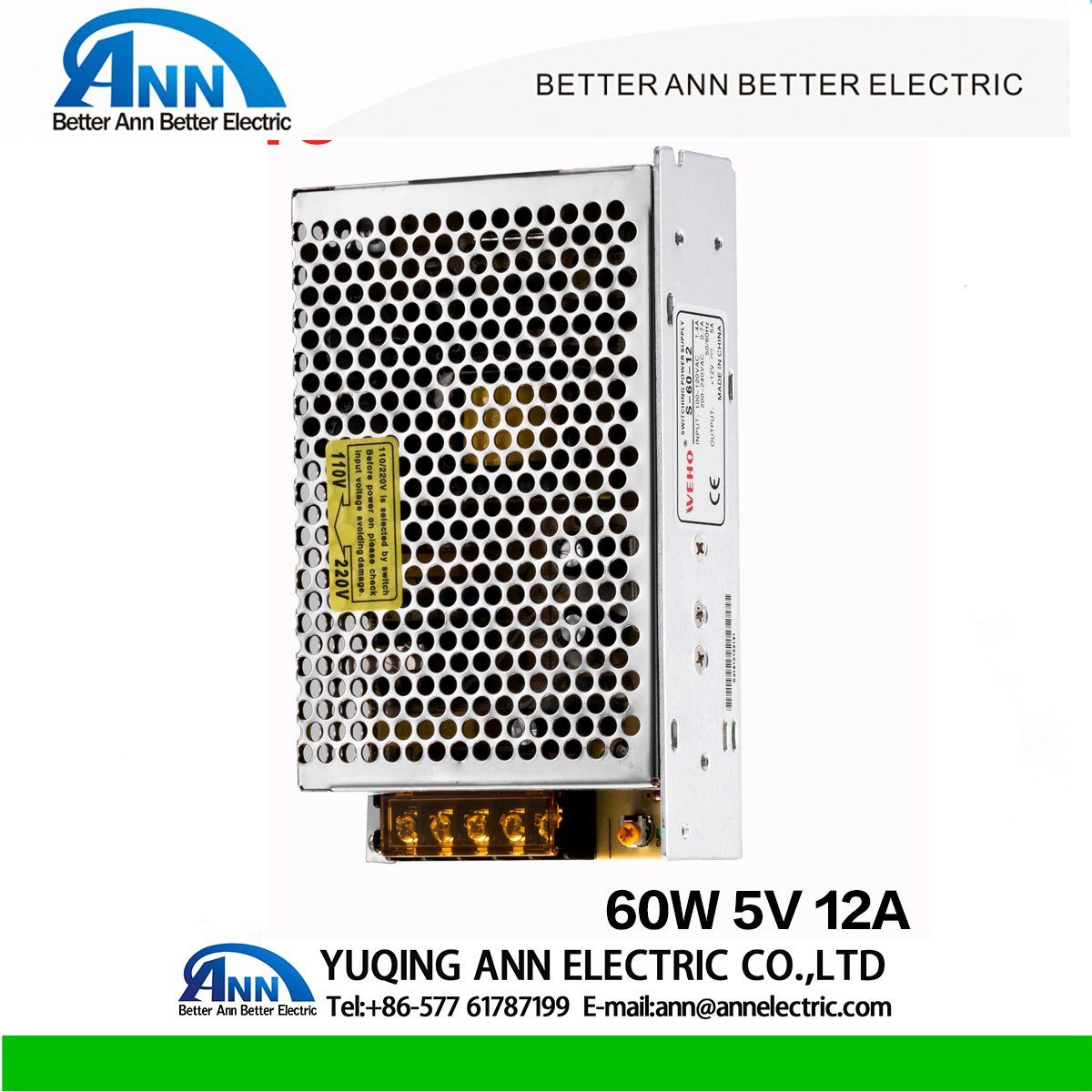

Constant Voltage 110V/ 220V AC to 5V DC 60W SMPS

Name: Constant Voltage 110V/ 220V AC to 5V DC 60W SMPS
Brand: all-electronics-online.com
SKU: 839318405
Availability: InStock
Rating: 4.5 (62 reviews)

Price:	US $ 7.8-9/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-60-24
Output Type:	Single
Warranty:	1 Year
Output Power:	51 - 100W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

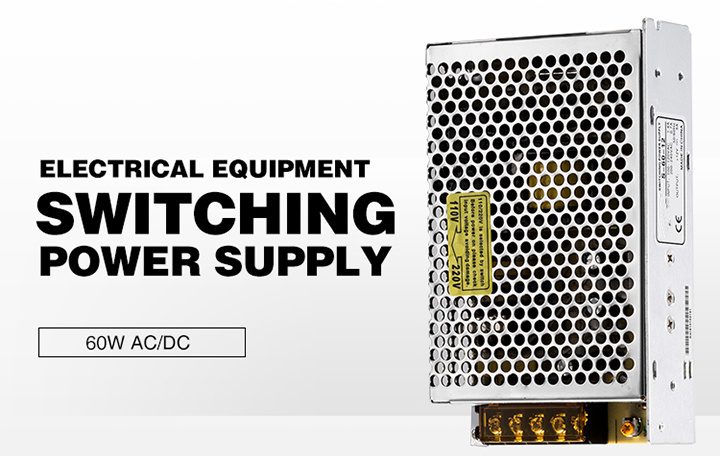

60W 5V DC Switching Power Supply

Features:

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 12months warranty

Specifications:

Model	S-60-5	S-60-12	S-60-15	S-60-24
DC Output voltage	5V	12V	15V	24V
Output voltage range(Note:2)	±2%	±1%	±1%	±1%
Rated output current	12A	5A	4A	2.5A
Output current range	0~12A	0~5A	0~4A	0~2.5A
Wave and noise(Note:3)	75mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±1%	±0.5%	±0.5%	±0.5%
DC output power	60W	60W	60W	60W
Efficiency	71%	78%	78%	82%
Adjustable range for DC voltage	+10%	±10%	±10%	±10%
AC input voltage range	AC100~240V 47~63Hz;240~370VDC
Input current	2A/115V 1A/230V
AC Inrush current	Cold-start current 18A/115V 36A/230V
Leakage current	<0.5mA/240VAC
Overload proctection	105%~150% Tpye:Foldback current limiting Reset: auto recovery
Temperature coefficient	±0.03%/°C(0~50°C)
Setup, rise, hold up time	200ms, 100ms, 30ms
Vibration	10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes
Withstand voltage	Input and output internal 1.5KVAC,Input and enclosure 1.5KVAC,Output and enclosure 0.5KVAC
Isolation resistance	Input and output internal Input and enclosure,Output and enclosure 500VDC/100MΩ
Store temperature and humidity	-10°C~+50°C
Overall dimension	159X98X38mm (LWH)
Weight	0.5kgS
Safety standards	Meet UL 1012 requirement(Not apply for the mark)
