| Prod Model: |
LYD-ETH-800 |
| Output: |
1 Channel |
| Control Mode: |
Manul Knob+Infrared |
| Net Weight: |
145g |
| Working Temperature: |
-20-60 |
| Application: |
Audio / Video Players |
| Signal Transmission: |
IR Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
| Voltage: |
DC12V~24V |
Product Description
Basic Info| Place of origin: | Shenzhen,China |
| Model no. | LYD-ETH-800 |
| key number: | 13keys |
| Net weight: | 145g |
| Voltage: | DC12-24V |
| control method: | IR |
| Max. Load power: | 12V:<75W, 24V:<150W |
| color: | white |

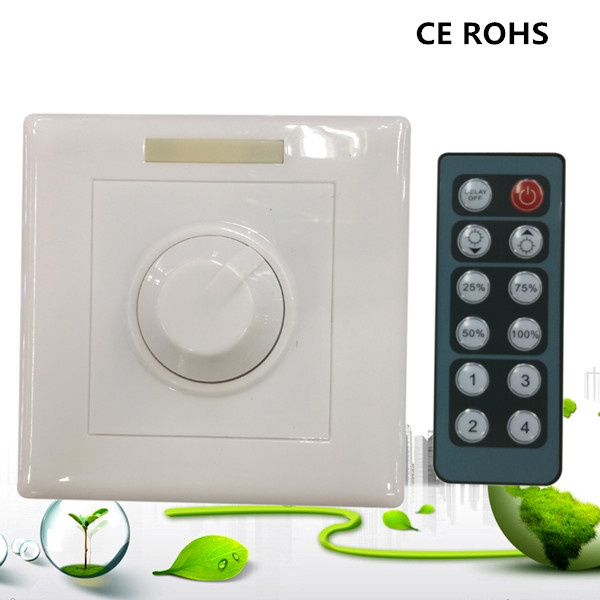

Product DescriptionIR LED Dimmer Switch DC12V-24V
ETH - 800: if your light source working voltage is DC12 - 24V, then you can choose ETH-800. It mainly use for low voltage DC12 -24v input led strip, MR16 spotlight. The maximum power output: DC12V<96W, DC24V<192W, the effective power is 80%.

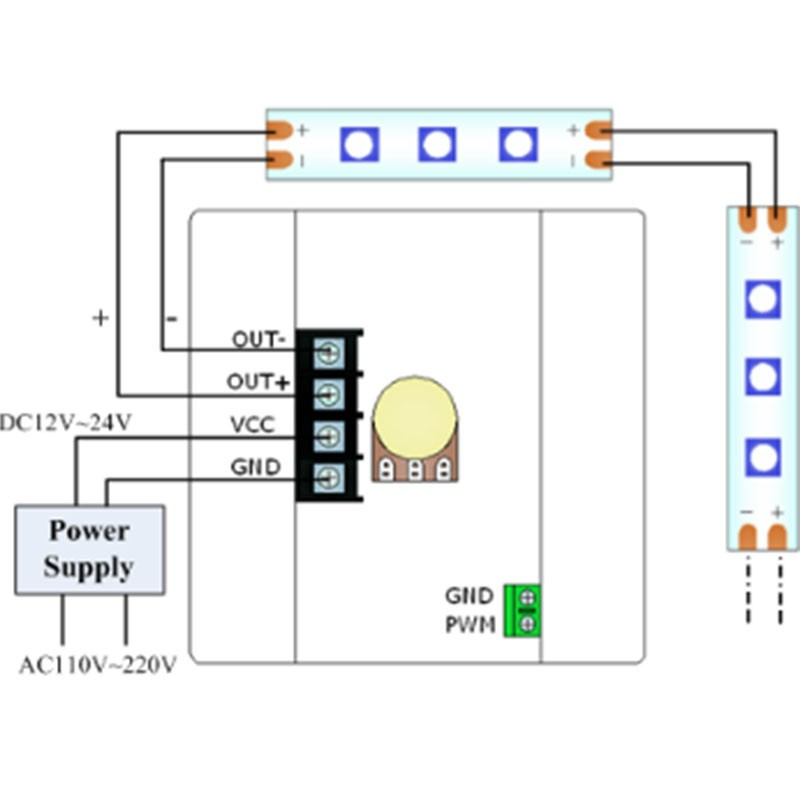

Wiring is as follows: AC220V - > AC power supply(AC220V input and DC24V output) - > dimmer - > led lamps(DC12V - 24V input)
1.General information
ETH-800 is an 12+1 key intelligent dimmer specially designed for LED lighting, it adopted the most advanced PWM (pulse-width-modulation) digital brightness-adjusting technology that enables you adjust the brightness with the infinite knob and also can adjust the brightness far away with the IR wireless controller.

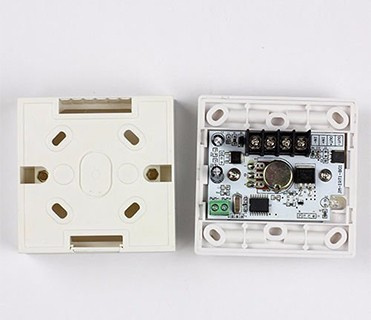

It is suitable for installation of commercial and household 86-style socket, you can install it visibly outside the wall or invisibly inside the wall, it can meet different brightness requirements at different time with the dimmer, also it can extend the LED life tenure and save energy, suitable to dim hi-power or low-power LED lamps...
Use for control all kinds of led lights and lanterns, for example: the point light source, soft light bars, wash wall lamp, glass curtain wall lamp, etc. Is inexpensive, connection is convenient, simple to use etc. Through the infrared remote control and dimmers on the knob on brightness adjustment, grey scale level 256, with user-defined function, delay shutdown function and fixed gray output functions.
2.Specifications 1) Working temperature -20-60
2) Supply voltage: DC12V~24V
(for orders specify voltage)
3) 0utput: 1channels
4) Static power consumption: <1 W
5) Output current <8A
6) Output power: 12V:<96W, 24V:<192W
7) Wide Voltage input DC12-24V
3.DIMENSIONS
Switch size:L87×W87×H53(mm)

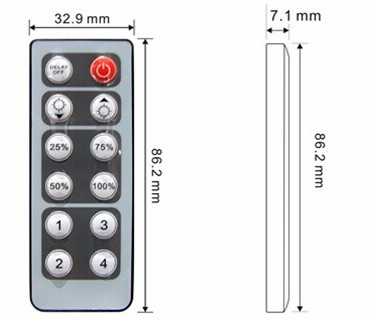

IR Remote size:L86×W40×H6.6(mm)
Package size:L95×W95×H70(mm)
net weigh:145g
gross weigh:190g
4.Installation and use instructions
1) The input voltage of this controller should to be DC12V~24V.
2) Never connect two wires directly in case of short circuit.
3) Knob operation:Rotary knob clockwise to increase brightness, knob counterclockwise rotation will decrease the brightness.
Remote control operation:the remote control facing the infrared receiver, ensure that there are no obstructions between remote controller and receiver,When dimmer receives an effective signal from the infrared remote control, the light on the upside flickers.
