Contactor Cjx1 3TF32 32A 220V Single Phase Contactor

Name: Contactor Cjx1 3TF32 32A 220V Single Phase Contactor
Brand: all-electronics-online.com
SKU: 823698005
Availability: InStock
Rating: 4.3 (29 reviews)

Price:	US $ 1-10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	3TF32
OEM:	Ok
Standard:	Ce/IEC60947-4-1

Product Description

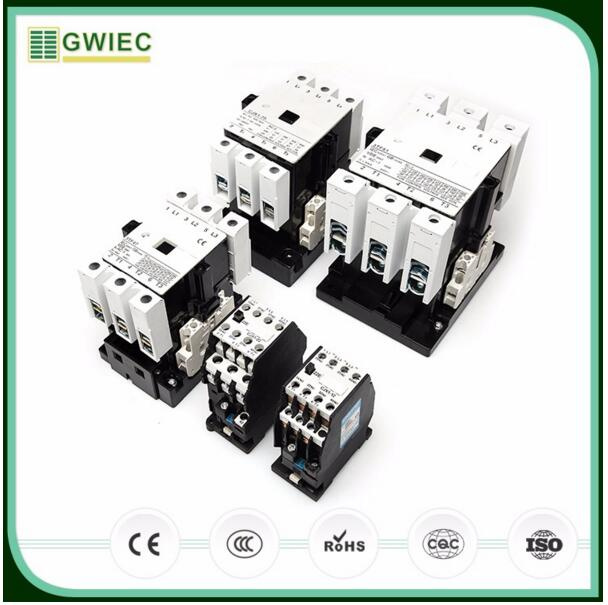

GWIEC Hight Quality Products 3 Pole Electric Contactors Cjx1 Magnetic AC Contactor

Product Description

Application:

CJX1 series AC contactors are suitable for frequency 50/60Hz,rated insulation voltage up to1000V,rated operation current 9-475A under AC-3 duty
It is mainly used for making/breaking electric circuit at a long distance & for frequent starting/stopping & with thermal relay to compose a magnetic motor starter
The product conforms to IEC60947-4-1 stardand.

Specification:

Type	CJX1
9~12	16~22	32	45~63	75~85	110~140	170~205	250~300	400~475
Mechanical endurance(×10⁶)		10	10	10	8	8	8	8	8	8
Conventional thermal current(A)		20	30	45	80	100	160	210	300	400/550
Rated insulation voltage(V)		660	660	660	1000	1000	1000	1000	1000	1000
Rated(380V)operating current(A)	AC-3	9/12	16/22	32	45/63	75/85	110/140	170/205	250/300	400/475
Rated(380V)operating current(A)	AC-4	3.3/4.3	7.7/8.5	15.6	24/28	34/42	54/68	75/96	110/125	150
Power of controllable motor(KW)AC-3	380V	4/5.5	7.5/11	15	22/30	37/45	55/75	90/110	132/160	200/250
Power of controllable motor(KW)AC-3	660V	5.5/7.5	11	23	39/55	67	100	156	235	375
Power of controllable motor(KW)AC-4	380V	1.4/1.9	3.5/4	7.5	12/14	17/21	27/35	38/50	58/66	81
Power of controllable motor(KW)AC-4	660V	2.4/3.3	6/6.6	13	20.8/24	29.5/36	46.9/60	66/86	100/114	140
Frequency of operation(l/h)	AC3	1000	750	750	1200/1000	1000/850	1000/750	700/500	700/500	500/420
Frequency of operation(l/h)	AC4	250	250	250	400/300	300/250	300/200	200/130	200/130	150
Electrical endurance(×10⁶)	AC3	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2
Electrical endurance(×10⁶)	AC4	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Operating voltage range of coil		(0.8~1.1)Ue
Power consumption of coil	Atracting(VA)	10	10	12.1	17	32	39	58	84	115
Power consumption of coil	Starting(VA)	68	69	101	183	330	550	910	1430	2450
Rated insulation voltage of auxitiary contacts(V)		690	690	690	690	690	690	690	690	690
Conventional thermal current of auxitiary contacts(A)		10	10	10	10	10	10	10	10	10
Rated operating current of auxitiary contacts(A)	AC15380/220	6/10	6/10	4/6	4/6	4/6	4/6	4/6	4/6	4/6
Rated operating current of auxitiary contacts(A)	DC13220V	0.45	0.45	0.48	0.48	0.48	0.48	0.48	0.48	0.48
Rated voltage of the control coil(V)	50Hz	24,36,48,110,127,220,380,etc
Rated voltage of the control coil(V)	60Hz	24,110,220,440,etc.

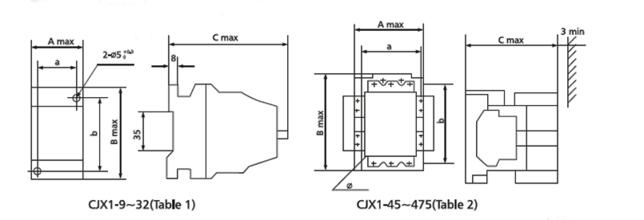

outline and mounting dimension:

Type	A max	B max	C max	a	b
CJX1-9,12	45	78.5	104(90)	35+0.31	60+0.37
CJX1-16,22	46	85	114	35+0.31	75+0.37
CJX1-32	74	85	108	50+0.31	75+0.37

Type	A max	B max	C max	a	b	φ
CJX1-45,63	91(114)	120	124	70+0.6	100+0.2	4.8
CJX1-75,85	102(125)	135	142	80+0.6	100+0.2	5.5
CJX1-110,140	122(145)	156	154	100+0.2	130+0.8	6.5
CJX1-170,205	140(163)	185	190	100+0.2	160+0.8	7
CJX1-250,300	150(173)	205	200	120+0.2	180+0.8	9
CJX1-400,475	165(188)	205	225	130+0.8	180+0.8	9

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
