Low Price RCCB Gwiec Wenzhou 1p+N 2p 3p 3p+N 4p Automatic RCBO Circuit Breaker 25A

Low Price RCCB Gwiec Wenzhou 1p+N 2p 3p 3p+N 4p Automatic RCBO Circuit Breaker 25A
Price: US $ 0.1-0.5/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: (C45LE)DZ47LE
Rated Voltage: 230/400V
OEM: Yes
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Manual Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Structure: ELCB
Poles Number: 1
Certification: CCC

Product Description

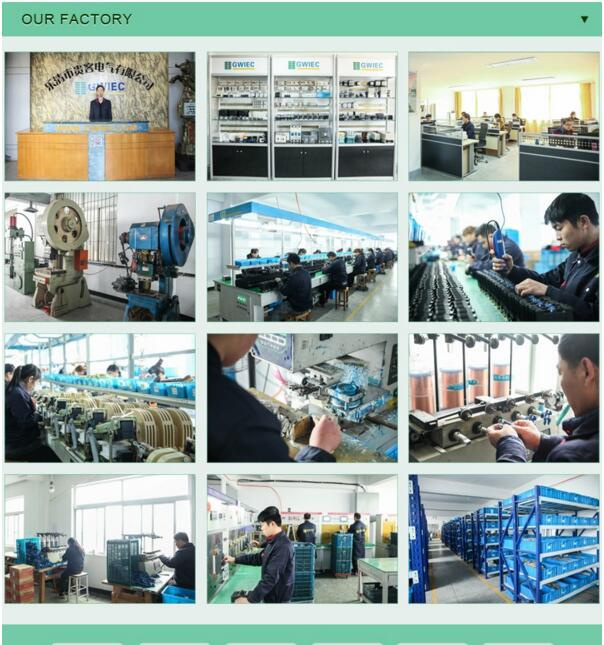

GWIEC is manufactory of MCB,MCCB,Contactor, relay, with capacity of 200,000pcs monthly.
The products passes CE, ROHS ,according to IEC 947-1
Proficient in raw material market , capable of providing different grade MCB,MCCB to offer appropriate solutions customized for clients' market.

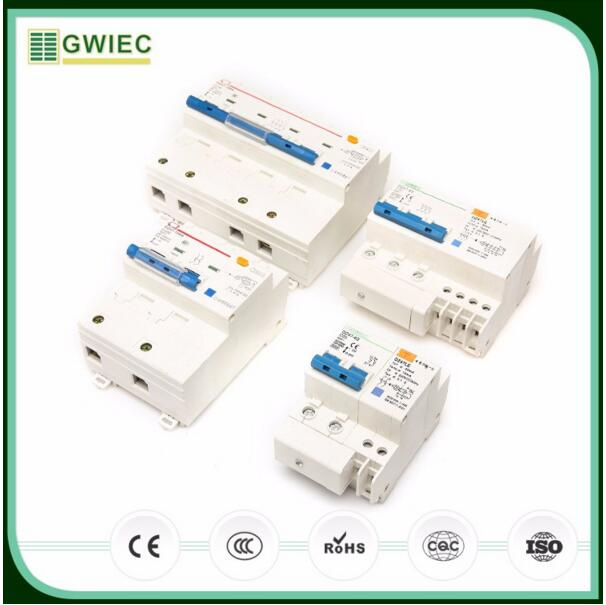

GWIEC Wenzhou Low Price Rccb 1P+N 2P 3P 3P+N 4P Automatic Rcbo Circuit Breaker 25A

Product Description

Residual Current Circuit Breaker Feature:

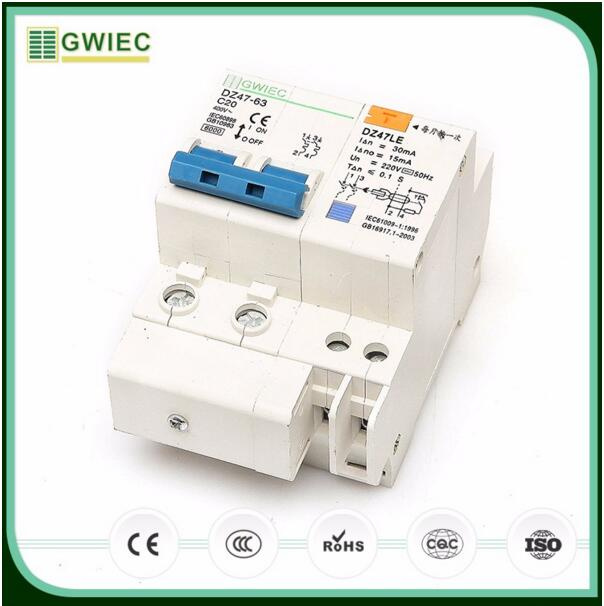

  • DZ47LE RCBO is used for the protection against electrical leakage in the circuit of 50Hz or 60Hz, rated voltage 1 phase 230V and 3 phase 400V, rated current up to 63A
  • When somebody gets an electric shock or the residual current of the circuit exceeds the fixed value, the RCBO can cut off the power within the time of 0.1s automatically to protect the personal safety and preventing the equipment from the fault resulted by the residual current
  • With this function, the RCBO can protect the circuit against overload and short circuit or can be used for the unfrequent switchover of the circuit under normal conditions
  • It conforms to IEC61009 standard

  •
  • Residual Current Circuit Breaker Specification:

    Number of Poles1P+N, 2P, 3P, 3P+N, 4P
    Rated current (A)6, 10, 16, 20, 25, 32, 40,53,60
    Rated operating current (mA)30, 100, 300, 500
    Rated non operation (lΔn)(mA)≤0.5lΔn
    Rated voltage (V)220 / 380
    Tripping curveC,D
    TypeElectronic



    Normal Operation and Mounting Requirement:

  • Circumstance temperature -5~40ºC,average temperature not exceeding 35ºC
  • Altitude above sea level less than 2000m
  • Humidity not exceeding 50% +40ºC and not exceeding 90% +25ºC
  • Installation class or ;Pollution class
  •
  • Installation method DIN Rail mounting type
  • The external magnetism shall not be more than 5times of terrestrial one
  • Product shall be installed vertically at the place where there shall be no severe impact and vibration
  • The product is switched on when the handle is at upper position

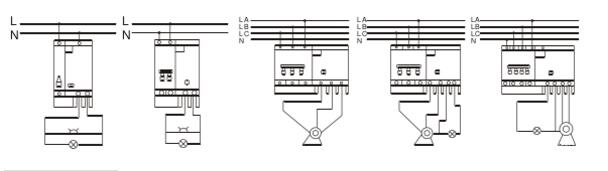

  • Residual Current Circuit Breaker Operation Prinsiple:



    Related Products

    GWIEC is specialized in manufacturing in contactor,circuit breakers,thermal overload relays and magnetic starters,etc.





    Certifications

    GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates. we supply for global factories and distributors which are experienced in filed electric products and green energy. Just like Europe, South America, Russia, Asia etc.



Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
