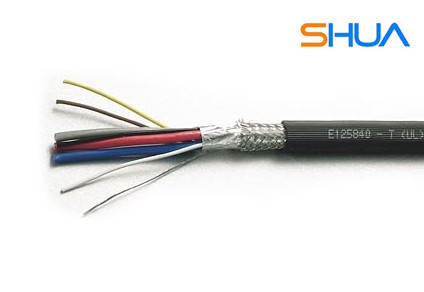

Control and Instrumentation Cables

Name: Control and Instrumentation Cables
Brand: all-electronics-online.com
SKU: 755992435
Availability: InStock
Rating: 4.5 (100 reviews)

Price:	US $ 0.1-20/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Meter
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SHUA0116
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Clients' Requirement
Type:	Cat 6
Certification:	CCC
Application:	Submarine Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Brand:	Shua

Product Description

instrument wire
1.
XLPE/PVC Instrumentation Cable Construction:

Conductor:
18 AWG and 16 AWC bare, annealed copper per ASTM B3
Class B stranding per ASTM B8
Insulation:
Flame retardant Cross-Linked Polyethylene (XLPE)
Color-coded per ICEA Method 1:
Pairs: Black and White
Shield:
Individual and Overall shields are aluminum/polyester in contact with stranded tinned copper drain wire
Jacket:
Flame retardant and sunlight-resistant Arctic-grade Polyvinylchloride (PVC)
Options:
300V Type PLTC
Tinned copper conductor
Class C Stranding
Overall shielded pairs/triads
EVTC-Ethylene Propylene Rubber (EPR) insulation
Other constructions available upon request

XLPE/PVC Instrumentation Cable Applications:

In free air, raceways or direct burial
In wet or dry locations
Permitted for use in Class I Division 2 Industrial hazardous locations per NEC

XLPE/PVC Instrumentation Cable Features:

Rated at 90°C wet or dry
Ripcord applied to all cables with jacket thickness of 60 mils or less
Abrasion- and chemical-resistant
Sunlight and weather resistant
Excellent electrical properties
Meets cold bend test at -25°C

2. products type

Nominal crosssecion mm2	number of pairs
0.5, 0.75, 1.0,1.5,2.5	1--24
type for our instument wire

1	PE insulated stranded copper wire braided shield PVC sheathed cable
2	PE insulated copper tape shield PVC sheathed cable
3	PE insulated aluminum plastic braided shield PVC sheathed cable
4	PE insulated copper tape shielded and steel tape armored shield PVC sheathed cable
5	PE insulated stranded copper wire braided shielded and steel tape armored shield PVC sheathed cable
6	PE insulated aluminum/plastic shielded and steel tape or wire armored shield PVC sheathed cable

The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...

The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.

We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
