Control Cables - Cy, Sy and Yy Control Cables

Name: Control Cables - Cy, Sy and Yy Control Cables
Brand: all-electronics-online.com
SKU: 732173082
Availability: InStock
Rating: 4.6 (61 reviews)

Price:	US $ 0.1-30/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY, SY and YY Control Cables
Product Name:	Cy, Sy and Yy Control Cables
Rated Voltage:	450/750 V
Conductor:	Copper
Insulation:	XLPE/PVC
Sheath:	PVC/PE
Core Number:	1 2 3 4 5 6 7 8 9 10
Color Color:	Red, Yellow, Blue, Green or as Your Requirement
Origine:	Shandong, China
Packaging:	Wooden Drum
Shipping:	3-10 Working Days
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Model:	XLPE Power Cable
Brand:	Chan Qing Teng

Product Description

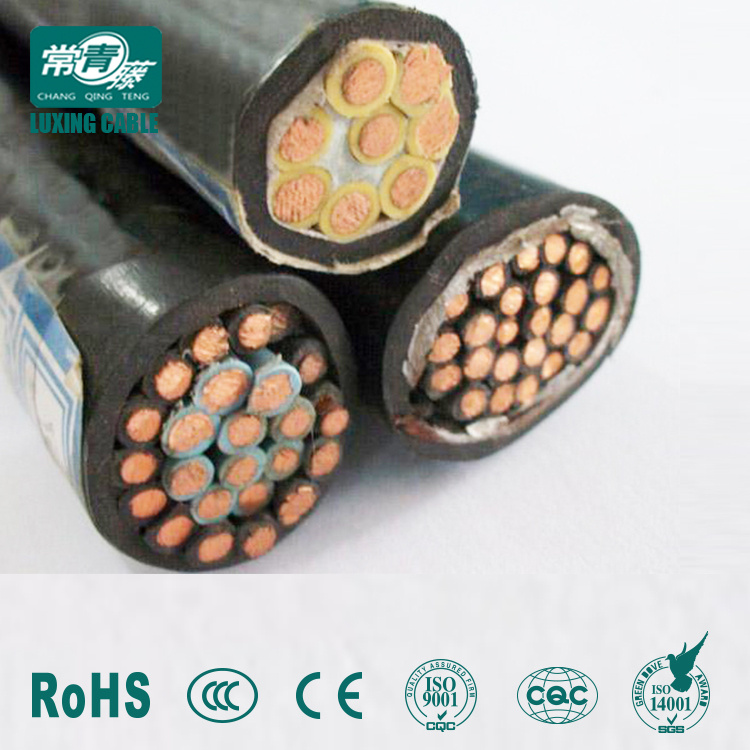

ITERM NAME : Control Cables - CY, SY and YY Control Cables

Specifications

Flexible Power Control Cable with Colored Conductors Conductor:Copper
Insulation:PVC,XLPE
Sheath:Flame retardant PVC

Application

For electricity supply and control in public networks and industrial plantsclassified areas (IEC 60079-14).

Recommended for direct burial. For indoor and outdoor installation in dry and wet locations, on racks, in conduits

Construction

Conductor plain annealed copper, class 1 or class 2 resp., acc. to IEC 60228

class 1: circular solid

class 2: circular stranded

Insulation polyvinylchlorid PVC

Colour code black, continuously numbered

Laying up cores twisted in layers (if necessary with filling element(s))

Wrapping at least 1 layer of plastic tape

Bedding extruded polyvinyl chloride PVC, black

Armour galvanized round steel wires/ galvanized steel tape

Screen copper tape screen/ copper wire braid screen/ plastic coated aluminium foil screen

Outer Sheath extruded polyvinyl chloride PVC, black

Technical Data Abbreviations

Flame retardancy: IEC 60332-1

Flame propagation:IEC 60332-3 cat. A

Outer Sheath

Amount of halogen acid gas:max. 17 %(IEC 60754-1)

Limiting Oxygen Index(LOI):min. 30 %(IEC 60332-3 ann.B)

Temperature Index (TI): min. 300 °C(ASTM-D-2863)

Temperature Range

- 30 °C up to + 70 °C(during operation)

- 5 °C up to + 50 °C(during installation)

max. + 160 °C(under short circuit)

Electrical Data at 20 °C

Character Unit Values

Conductor resistance max. Ω/km acc. to IEC 60228

Test voltage Urms core: core V 3500

Test voltage Urms core: armour V 3500

Nominal voltage Uo /U V 600/1000

Highest system voltage Um max. V 1200 (for three phase systems)

No. of coSolids and cross-section (nom.) n / mm²			insulation thickness mm	outer sheath thickness mm	Overall diameter (approx.) mm
5 x	1.5	Solid	0.8	1.8	11.9
7 x	1.5	Solid	0.8	1.8	12.8
10 x	1.5	Solid	0.8	1.8	15.7
12 x	1.5	Solid	0.8	1.8	16.2
19 x	1.5	Solid	0.8	1.8	18.7
27 x	1.5	Solid	0.8	1.8	22.2
37 x	1.5	Solid	0.8	1.8	24.8
48 x	1.5	Solid	0.8	1.9	28.3
5 x	1.5	Stranded	0.8	1.8	12.4
7 x	1.5	Stranded	0.8	1.8	13.4
10 x	1.5	Stranded	0.8	1.8	16.6
12 x	1.5	Stranded	0.8	1.8	17.1
19 x	1.5	Stranded	0.8	1.8	19.9
27 x	1.5	Stranded	0.8	1.8	23.6
37 x	1.5	Stranded	0.8	1.8	26.3
48 x	1.5	Stranded	0.8	1.9	30.1
5 x	2.5	Solid	0.8	1.8	13
7 x	2.5	Solid	0.8	1.8	14
10 x	2.5	Solid	0.8	1.8	17.2
12 x	2.5	Solid	0.8	1.8	17.8
19 x	2.5	Solid	0.8	1.8	20.8
27 x	2.5	Solid	0.8	1.8	24.6
37 x	2.5	Solid	0.8	1.9	27.4
48 x	2.5	Solid	0.8	2	31.7
5 x	2.5	Stranded	0.8	1.8	13.6
7 x	2.5	Stranded	0.8	1.8	14.7
10 x	2.5	Stranded	0.8	1.8	18.2
12 x	2.5	Stranded	0.8	1.8	18.8
19 x	2.5	Stranded	0.8	1.8	22
27 x	2.5	Stranded	0.8	1.8	26.1
37 x	2.5	Stranded	0.8	1.9	29.5
48 x	2.5	Stranded	0.8	2	33.8

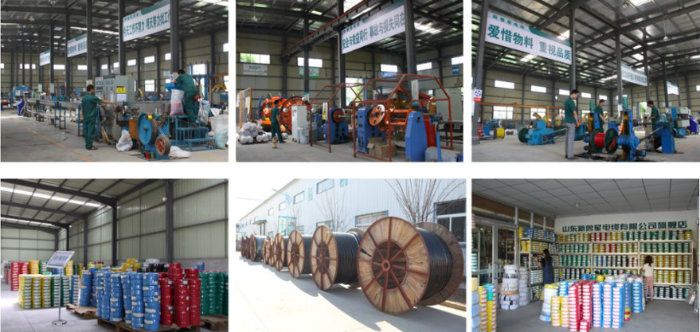

Luxing Factory : our production base

Video Show

Company introduction: https://youtu.be/j-bfOk2gCFY

Copper wire stranded: https://youtu.be/QT-b7M9YkLw

Copper wire braided: https://youtu.be/3-fP1OOuPA4

Cabling machine: https://youtu.be/h6kE4ofeiWA

Armoured: https://youtu.be/Clu5e7LW_l8

Extruded pvc sheathed,insulation: https://youtu.be/3c93OxsKmBw

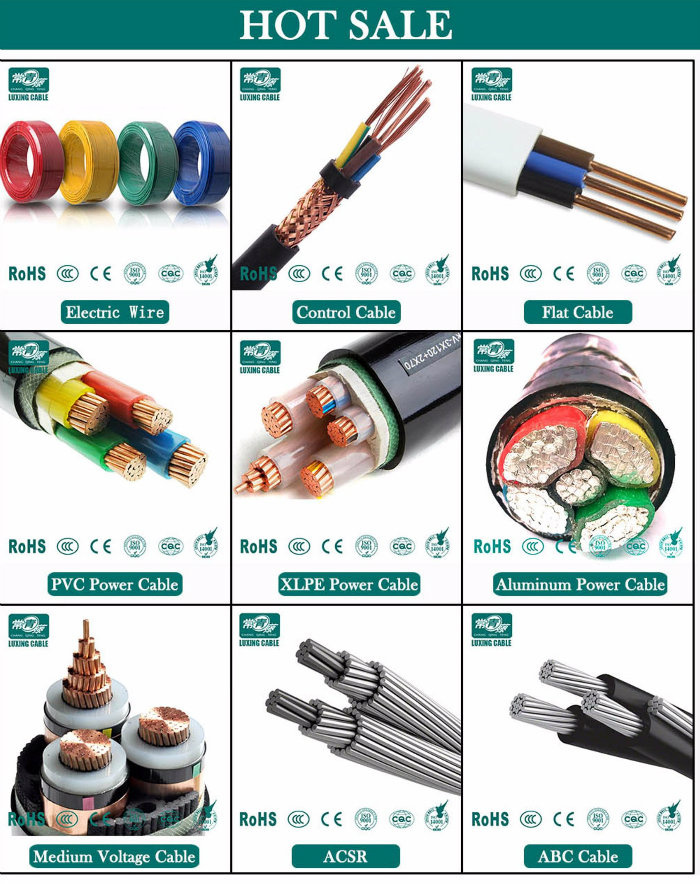

Luxing Cable Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

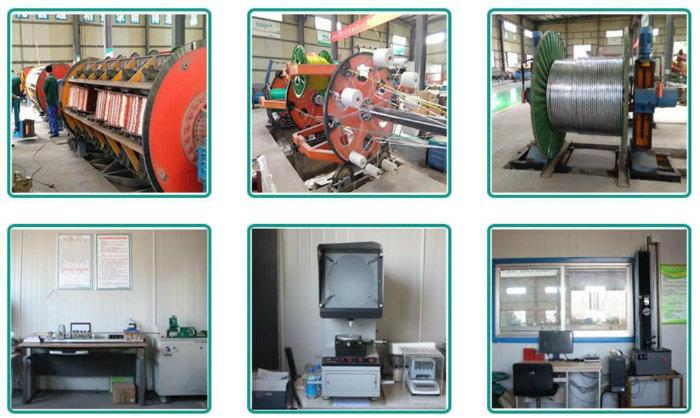

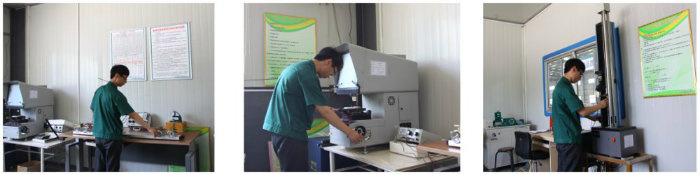

Strict Quality Test

Packaging & Shipping

Why choose us

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency

Contact Information

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
