Power Cable 3X2.5/3 Core Electric Cable/3 Core 4mm Flexible Cable

Name: Power Cable 3X2.5/3 Core Electric Cable/3 Core 4mm Flexible Cable
Brand: all-electronics-online.com
SKU: 731799352
Availability: InStock
Rating: 4.7 (130 reviews)

Price:	US $ 0.8/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	VV, RVV, KVV, YJV.
Product Name:	3X2.5mm2 Power Cable/3X1.5 Cable/3 Core 1.5mm Cabl
Number Of Cores:	Single/2/3/4/5/6/7/8/10/16 Core...
Rated Voltage:	0.6/1kv,1.8/3kv,3.6/6kv,6/6(10)Kv,8.7/10(15)Kv,12/
Cross Section Area/Measure:	3.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300/4
Standard:	IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 5023-
Conductor:	Stranded/Solid/Flexible Copper/Aluminum Conductor
Insulation:	XLPE/PVC/PE/Pur
Aplication:	Electric, House Wire, Building Wire...
Shield:	Copper Wire Screen(Cws), Aluminium Wire Screen(Aws
Armoured:	Steel Tape Armoured (Sta) or Steel Wire Armoured (
Application:	Telecommunication
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	PVC
Certification:	VDE
Model:	VV,YJV...
Brand:	Chang Qing Teng

Product Description

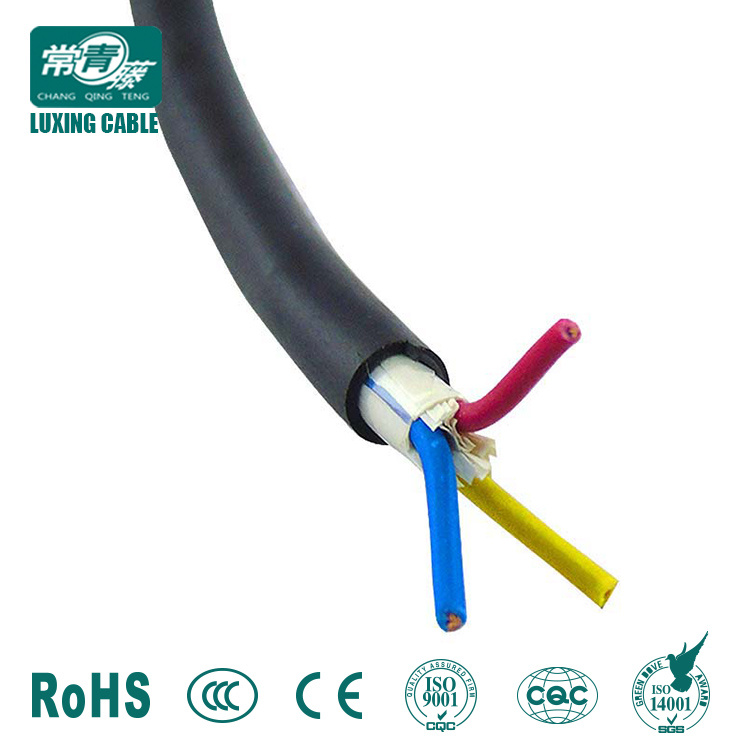

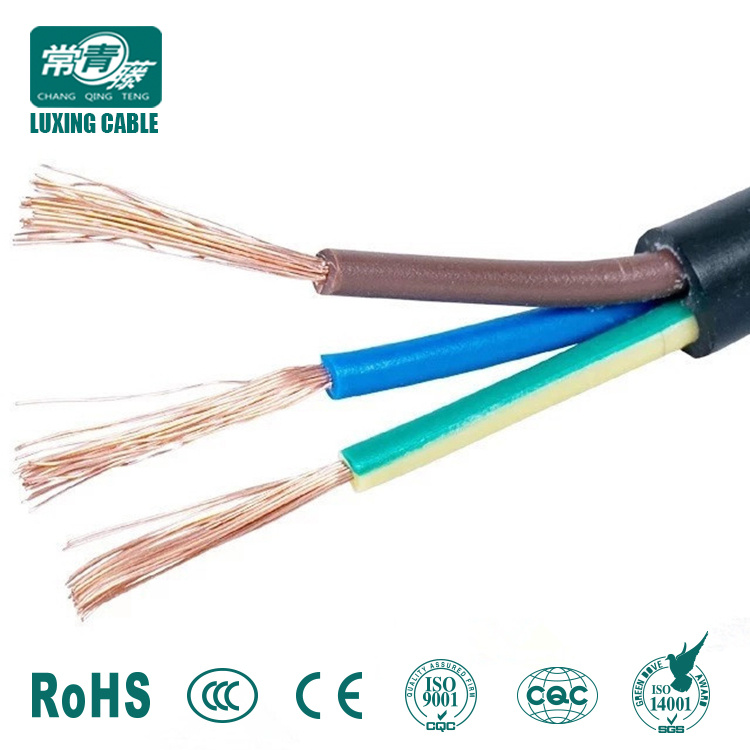

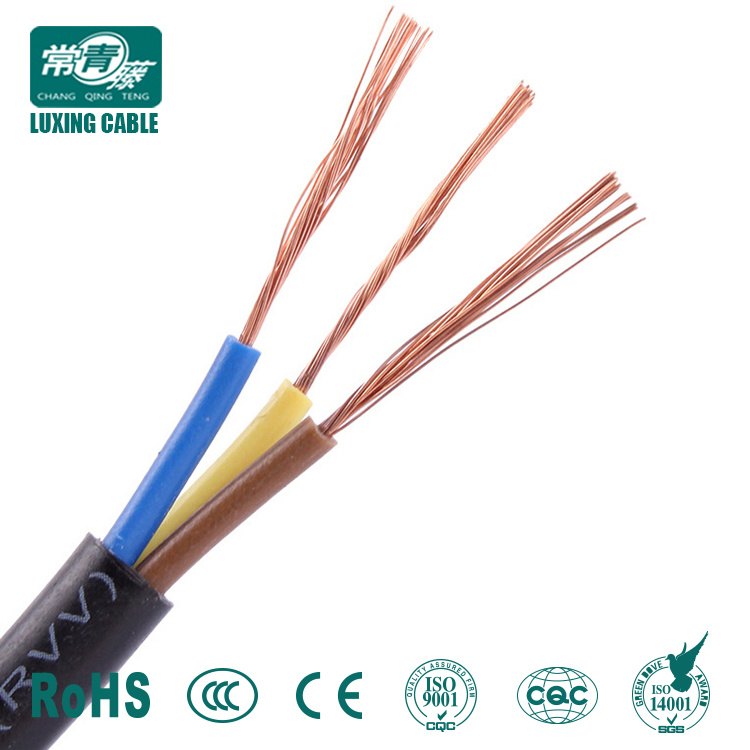

power cable 3x2.5/3 core electric cable/3 core 4mm flexible cable

Product Description

power cable 3x2.5/3 core electric cable/3 core 4mm flexible cable

3 Core Power Cable 3x2.5, Standard Power Cable Sizes

Description:

Name: ZR YJV XLPE Insulated PVC Sheath 3*2.5mm2 Electrical Power Cable

Standard: IEC 60502, IEC 60228, GB/T 12706.1-2008.

Certificate: CE, CCC, KEMA

Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2

Insulation: XLPE Thickness 0.7mm

Sheath: Rubber Material Thickness 1.8mm

Approx. Overall of cable: 11mm

Approx. Weight of cable: 166KGS/KM

Testing Voltage A.C. : 3.5KV/5 Min

Rated Voltage: 0.6-1KV

OEM: Accept

More Specifications

Nominall cross section (mm)	Insulation Thickness (mm)	Thickness of inner sheath(mm)	Diameter of armoured steel wire(mm)	over Sheath Thickness(mm)	Overall Diameter of Cable(mm)	Mass of Cable (Kg/Km)
						Conductor Material
						Copper	Aluminum
2X1.5	0.7	1.0	0.9	1.8	13.5	340	-
2X2.5	0.7	1.0	0.9	1.8	14.5	390	-
2X4	0.7	1.0	0.9	1.8	15.5	460	373
2X6	0.7	1.0	0.9	1.8	17	535	416
2X10	0.7	1.0	1.25	1.8	19	800	519
2X16	0.7	1.0	1.25	1.8	21.5	1020	919
2X25	0.9	1.0	1.6	1.8	22	1265	1129
2X35	0.9	1.0	1.6	1.8	23.5	1535	1326
2X50	1.0	1.0	1.6	2.0	25.5	1865	1416
2X70	1.1	1.0	1.6	2.1	29	2445	1557
2X95	1.1	1.2	2.0	2.2	33	3345	1854
2X120	1.2	1.2	2.0	2.3	36	3990	2356
2X150	1.4	1.2	2.0	2.5	39	4730	2755
2X185	1.6	1.4	2.5	2.7	44.5	6160	3210

Contact:

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
