Controller RGB Wireless RF 28 Key

Name: Controller RGB Wireless RF 28 Key
Brand: all-electronics-online.com
SKU: 806281245
Availability: InStock
Rating: 4.5 (96 reviews)

Price:	US $ 4.4-4.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-QC28
Output:	3 CMOS Open Drain Output
Output Current:	<4A/CH
Static Power Consumption:	<1W
Connection Mode:	Common Anode
RF Frequency:	433.9m
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	Button Battery
Voltage:	DC12V~24V

Product Description

Basic Info

place of origin:	Shenzhen,China
output:	3 CMOS Open drain output
output current:	<4A/CH
Connection mode:	Common anode
Static power consumption :	<1w
Output Power:	12V:<144W, 24V:<288W
RF frequency:	433.9M
Voltage:	DC12~24V

Product Description

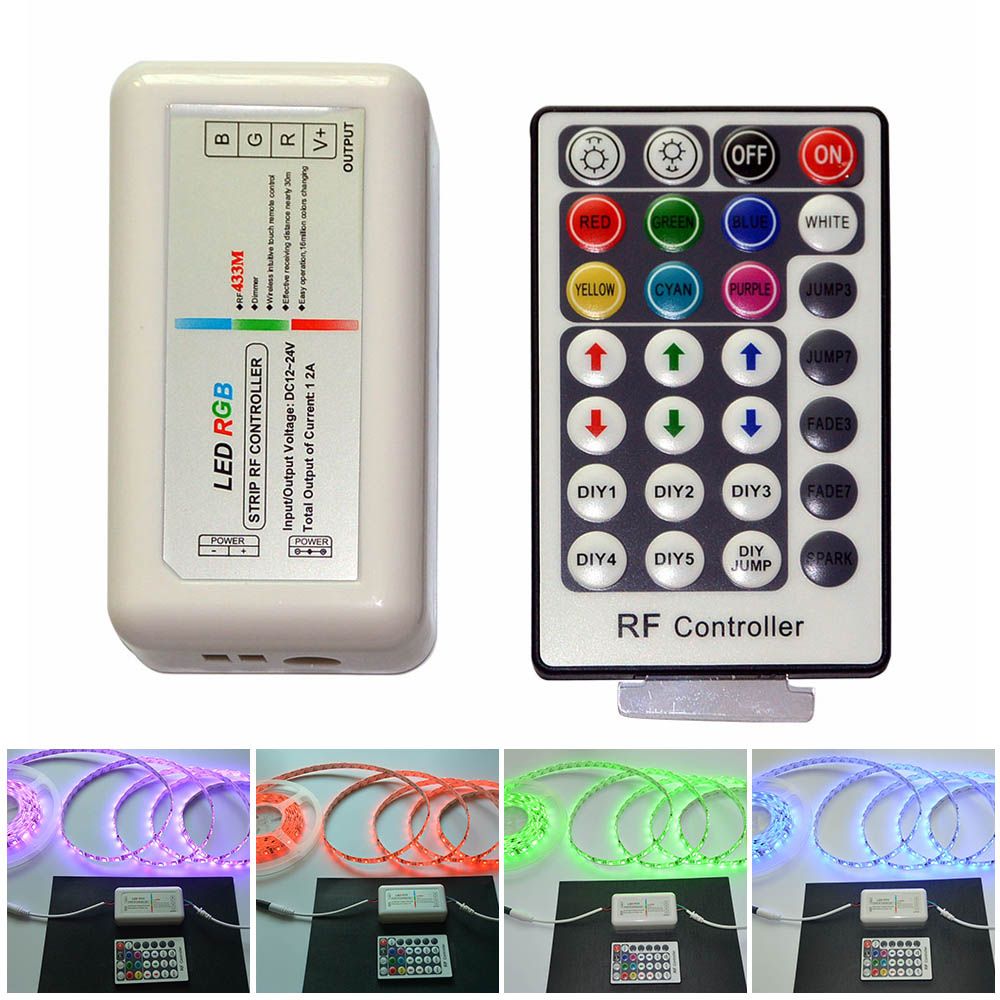

Plastic RF 28 Keys RGB controller adopted the advanced computer control chip. Its mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with easy connection,simple manipulation and power off memory function.User can choose the 7 color jump, fade,fash mode ,and the lights brightness are adjustable according to the user actual requirement.

Technical Parameters
Working temperature: -20-60 ºC
supply voltage: DC12V ~ 24V
Output: 3 channels
Connecting mode: common anode
Controller Size: L85 × W45 × H23mm
Weight: 65g
Static power consumption: <1W
Output current: <4A/ch
Output power: 12V: <144W, 24V: <288W

Direction for use:
Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

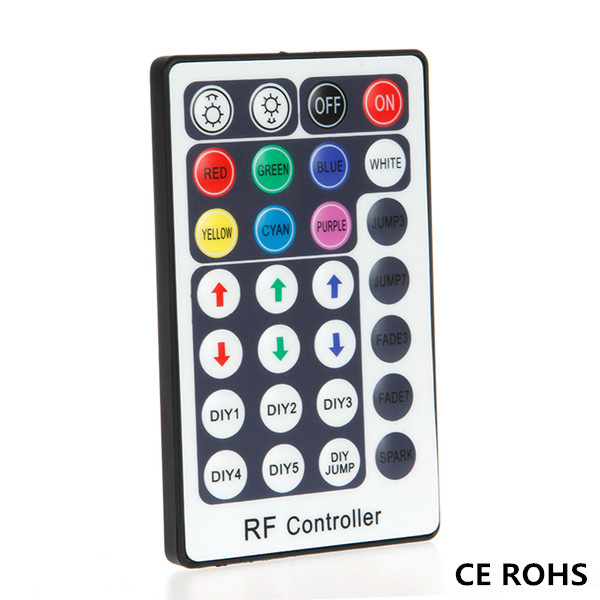

Adopt wireless control method, 28 keys in total, function of each button as below:

Brightness/Speed+	Brightness/Speed-	OFF	ON
Static red	Static green	Static blue	Static white
Static yellow	Static cyan	Static purple	3 color jump
Red brightness +	Green brightness +	Blue brightness +	7 color jump
Red brightness -	Green brightness -	Blue brightness -	3 color fade
DIY 1	DIY 2	DIY 3	7 color fade
DIY 4	DIY 5	DIY color jump	fireworks effect model

This RF28keys controller have match code version and not match code version for optional.
