Convert DC Power to AC Power Inverter with AVR

Convert DC Power to AC Power Inverter with AVR
Price: US $ 1-300/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Dark Star Series 600Va-1200Va
Output Frequency: 50Hz ±5Hz (DC Mode)
Transfer Time: Max. 10s.
Color: Black
Power Factor: 0.8

Product Description

Convert DC Power to AC Power Inverter with AVR

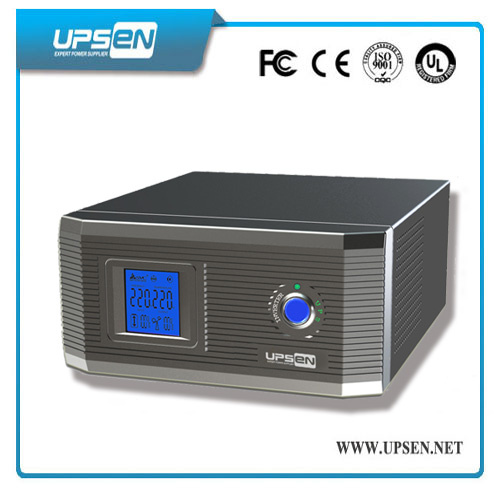

Pure Sine Wave Inverter Dark Star Series 600Va-1200Va (1ph in/1ph out)

Key Features:
1:CPU controlled
2:LCD display with plenty content
3:Fast transfer time,high efficiency
4:Low battery,overload short circuit,over temperature protections
5:Special charging system design for better protection of battery life
6:Intelligent battery management,prolonging the service life of the battery
7:Super wide input voltage range,strong ability to adapt to the environment
8:Durable construction for long life under extreme environmental conditions
9:Stable output voltage(pure sine wave output),can be applied to all electrical equipment
10:Easy to check with inverter condition with concise LCD indication. Generator compatibly and external battery connection achievable

Applications
vacuum cleaners, fans,fluorescent and incandescent lights, shavers,sewing  machines,air conditions,coffee makers,blenders,ice markers,toasters etc.

Technical Specification
ModelDS600DS800DS1000DS1200DS600 PlusDS800 PlusDS1000 PlusDS1200A Plus
Capacity480W640W800W1000W480W640W800W1000W
Power factor0.8
AVRNo3 steps of AVR, CPU controlled
INPUT
Input voltage rangeInverter mode: 80~290Vac±5Vac (Inverter mode)145~270Vac±5Vac
UPS mode: 175~270Vac±5Vac (UPS mode)
OUTPUT
Output voltage range80~290Vac±5Vac, Same as AC (AC mode)
220Vac±5% (DC mode)
203~238±5Vac
175~270Vac±5Vac, Same as AC(AC mode)
220Vac±5% (DC mode)
Output frequency50Hz ±5Hz (DC mode)
Wave formSine wave (DC Mode)
Transfer timeMax. 10s.
BATTERY
QTY & capacity of batteryDC 12VDC12V /24VDC 12VDC12V /24V
Charging current15A15A20A20A15A15A20A20A
PROTECTION & FUNCTION
PROTECTION1. Battery low voltage protection
2. Overload protection
3. Short circuit protection
FUNCTION1. Auto re-starts when AC recovers
2. Silence setup
3. Automatic charging (offline charging)
4.Combined UPS mode and inverter mode.
MANAGEMENT
USBOptional (Note: Funciton of combined UPS and inverter mode is disabled if USB is required.)Optional ( (Note: Funciton of optional charging current is disabled if USB is required.)
PHYSICAL
Unit dimension (mm)290*255*120
Color box dimension (mm)340*130*205
Master box dimension (mm)355*325*435355*325*225355*325*435355*325*225
Pcs in one master carton21112111
Gross weight (1pc, kg)7.611.412.013.67.611.412.013.6
Net weight (1pc, kg)710.811.413710.811.413
