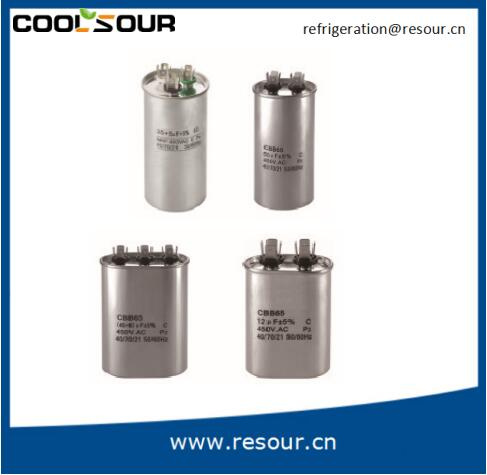

Coolsour AC Motor Run Capacitor for Air Conditioner

Name: Coolsour AC Motor Run Capacitor for Air Conditioner
Brand: all-electronics-online.com
SKU: 824490465
Availability: InStock
Rating: 4.7 (107 reviews)

Price:	US $ 1-10/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RS
Material:	Aluminum
Type:	Aluminum Electrolytic Capacitor
Application:	Air Conditioner
Capacitance:	>100uf
Package Type:	Carton

Product Description

Packaging Details:	1. First: Plastic bag 2. Second: Carton 3. Third: Input pallet 4.Forth: Plastic film Cover
Delivery Detail:	10-30 days

Feature:
1.It adopts thickened Metallized Polyprylene film as dielectric, coiled by high speed winding machine,and encapsulated with aluminum body.
2. It is treated by using refined castor oil as impregnant in the high temperature and vacuum environment to make the capacitor more stable with long working life.
3. The capacitor has been used the second generation mechanical explosion proof design to strengthen the reliability based on the principle of safety and proof-explosion.

Technical Data:

Performance standard	GB/T3667.1-2005/IEC60252-1:2001
Climate types	40/70/21
Capacitance tolerance	±5%
Insulation resistance	≥3000MΩ.μF
Loss Tangent	Tgδ≤0.002(50Hz-100Hz)
Endurable voltage	T-T:2Un T:2S
	T-C:2Un+1000V≥2000V T:10S

Remarks:Special Specifications can be customized.

Dimensions(mm):

Capatitance(μF)	380V/450V(ROUND)	380V/450V(OVAL)
Capatitance(μF)	DXH(mm)
2	40×60	55×32×55
5	40×60	52×32×55
10	40×60	52×32×65
15	40×70	52×32×75
20	40×75	52×32×85
25	45×75	71×45×85
30	45×85	71×45×85
35	50×85	71×45×85
40	50×90	71×45×100
45	50×100	71×45×100
50	50×100	71×45×105
55	50×115	71×45×105
60	50×115	71×45×105
70	55×130	71×45×115
80	60×130	71×45×135
100	60×130	71×45×135
15+5	50×75	71×45×90
20+5	50×75	71×45×90
25+5	50×75	71×45×90
30+5	50×85	71×45×90
40+5	50×100	71×45×110
50+5	50×115	90×48×110
60+5	55×115	90×48×120

RESOUR Refrigeration Integration Co., Ltd Located in Shengzhou City which draws the most of Chinese manufacturers here because of the convenient traffic that only 1 hour to Hangzhou, Ningbo, Yiwu by car and 1.5 hours to Shanghai, Taizhou, Wenzhou by train.

Our factory is one of the leaders into refrigeration industry since 1992, plant area over than 20, 000, number of workshops is over than 8, number of employees is over than 200.

We are turning into a multi-function company who collects matching, designing, customizing, standard production, trading and maintenance together through our inceasing development and innovation.

We devote our whole team into refrigeration industry service, including cold room equipment and spare parts, commercial and household refrigerator spare parts, air conditioning and spare parts, also the corresponding facilities.

We are ready for you at any time.
