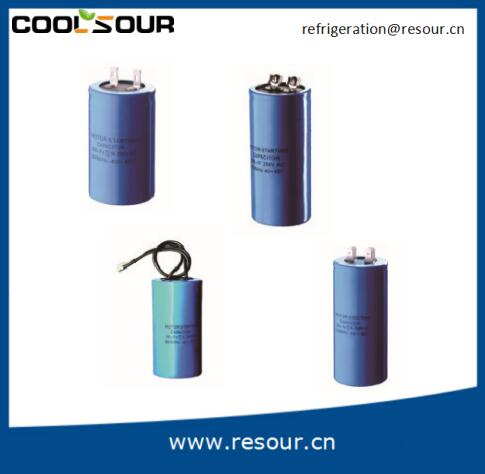

Coolsour CD Series Motor Start Capacitor, Refrigerator Part

Name: Coolsour CD Series Motor Start Capacitor, Refrigerator Part
Brand: all-electronics-online.com
SKU: 824490915
Availability: InStock
Rating: 4.5 (126 reviews)

Price:	US $ 1-10/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RS
Material:	Aluminum
Type:	Aluminum Electrolytic Capacitor
Application:	Air Conditioner
Capacitance:	>100uf
Package Type:	Carton

Product Description

Packaging Details:	1. First: Plastic bag 2. Second: Carton 3. Third: Input pallet 4.Forth: Plastic film Cover
Delivery Detail:	10-30 days

Feature:
1.Aluminum /Bakelite /plastic /ABC shell and double pins,lead cable;
2.Small volume,large capacitance,low spoilage,stable capability etc.

Technical Data: Remarks:Special Specifications can be customized.

Performance standard	GB/T3667.2-2008/IEC60252-2:2003
Climate type	-10ºC~+55ºC
Rated voltage	110~330VAC
Standard capacitance &tolerance	50~1500μF (-10%~+20%)
Loss tangent	0~+20%
Durability	+55ºC,110~165VAC, On 1 second,off 59 seconds,30000 times

	+55ºC,220~330VAC, On 1 second,off 59 seconds,15000 times

	Changing rate of capacitance: ±15% within orginal measuring value
	Tangent of loss angle: ≤0.20
Withstand voltage Between Terminals	1.2times working voltage,no breakdown within 2 seconds
Withstand Voltage Between Terminal and case	2000VAC 60seconds,no break down

Dimensions(mm):

Capatitance(μF)	110V/125V	125V	220V/275V	250V	330V
Size DXH(MM)
W(V)
50	34×60	34×60	34×70	34×80	42×80
75	34×60	34×60	34×70	34×80	42×80
100	34×60	34×60	34×70	34×80	42×80
150	34×70	34×70	34×70	50×100	50×100
200	40×70	40×70	40×70	50×100	50×100
250	40×90	40×90	45×100	50×100	50×100
300	40×90	40×90	45×100	50×100	50×100
350	45×90	45×90	45×100	50×100	50×100
400	45×100	45×100	45×100	50×100	50×100
500	45×100	45×100	45×100	50×110
600	45×100	45×100	50×100	50×110
700	50×100	50×100	50×100
800	50×100	50×100	50×100
1000	50×100	50×100
1200	50×100	50×100

RESOUR Refrigeration Integration Co., Ltd Located in Shengzhou City which draws the most of Chinese manufacturers here because of the convenient traffic that only 1 hour to Hangzhou, Ningbo, Yiwu by car and 1.5 hours to Shanghai, Taizhou, Wenzhou by train.

Our factory is one of the leaders into refrigeration industry since 1992, plant area over than 20, 000, number of workshops is over than 8, number of employees is over than 200.

We are turning into a multi-function company who collects matching, designing, customizing, standard production, trading and maintenance together through our inceasing development and innovation.

We devote our whole team into refrigeration industry service, including cold room equipment and spare parts, commercial and household refrigerator spare parts, air conditioning and spare parts, also the corresponding facilities.

We are ready for you at any time.
